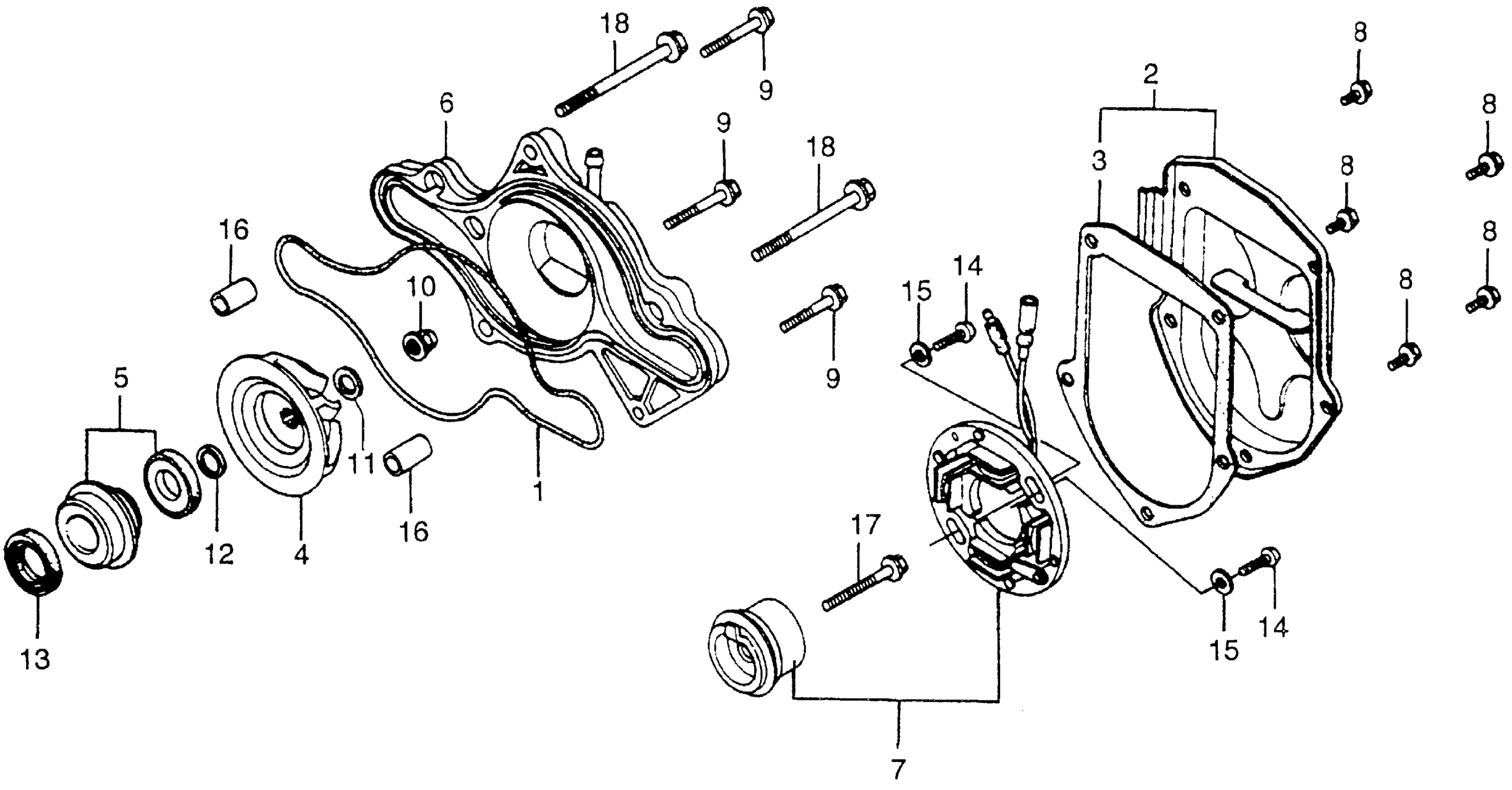

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 WATER PUMP + C.D.I. PULSER Diagram

#

Description
Price

1

GASKET, WATER PUMP BASE

11396-415-000

$6.46

2

COVER, PULSER (NOT AVAILABLE)

11430-449-000

Unavailable

3

GASKET, PULSER COVER This part replaces 11432-415-010.

11432-415-306

Unavailable

3

GASKET, PULSER COVER

11432-415-306

Unavailable

4

IMPELLER, WATER PUMP

19215-415-010

Unavailable

5

SEAL, MECHANICAL

19217-611-000

$107.33

6

COVER, WATER PUMP (NOT AVAILABLE)

19221-449-000

Unavailable

7

PULSER ASSY., C.D.I. (HITACHI) (NOT AVAILABLE)

30300-415-005

Unavailable

8

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

8

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

9

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

9

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

10

NUT, CAP (6MM)

90201-415-000

$2.05

11

WASHER, SEALING (6MM)

90441-706-000

$1.49

12

WASHER, THRUST (10MM)

90453-415-000

$3.62

13

OIL SEAL (18X28X6)

91202-283-013

$12.69

14

SCREW, PAN (5X16)

93500-05016-0A

$1.49

15

WASHER, PLAIN (5MM)

94101-05000

$1.49

16

PIN A, DOWEL (10X16)

94301-10160

$2.28

17

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

17

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

18

BOLT, FLANGE (8X65) This part replaces 95700-08065-00.

95701-08065-00

$1.72

18

BOLT, FLANGE (8X65)

95701-08065-00

$1.72
