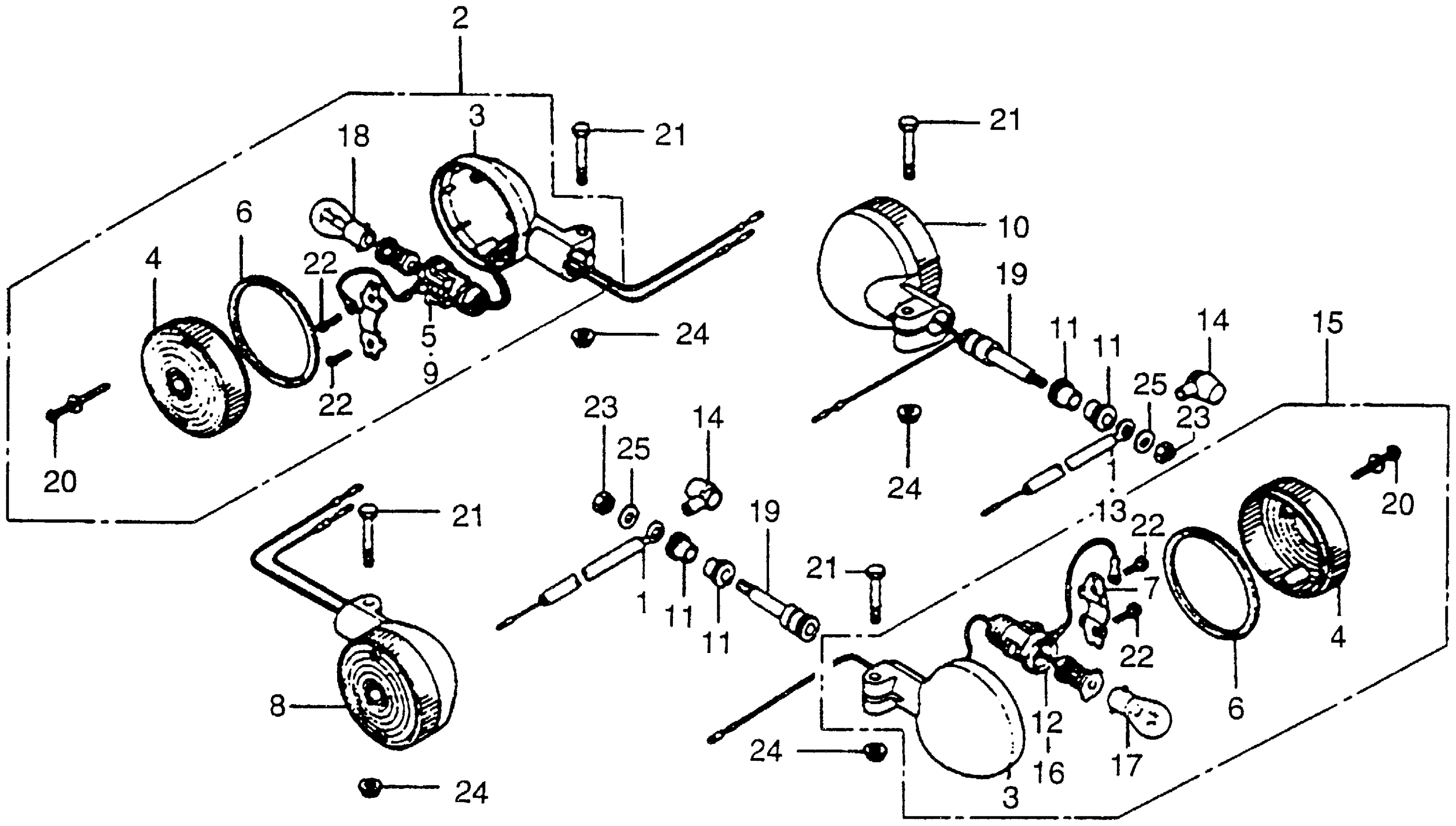

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 TURN SIGNAL II Diagram

#

Description
Price

1

SUB-WIRE A (NOT AVAILABLE)

32111-449-000

Unavailable

1

WIRE B, TURN SIGNAL GROUND (NOT AVAILABLE)

33621-413-000

Unavailable

2

TURN SIGNAL ASSY., R. FR. This part replaces 33400-377-671.

33400-461-679

Unavailable

2

TURN SIGNAL ASSY., R. FR. This part replaces 33400-461-670.

33400-461-679

Unavailable

2

TURN SIGNAL ASSY., R. FR.

33400-461-679

Unavailable

3

BASE, R. FR. TURN SIGNAL (NOT AVAILABLE)

33401-377-671

Unavailable

4

LENS, FR. TURN SIGNAL

33402-377-671

Unavailable

5

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33405-377-671.

33405-461-670

Unavailable

6

GASKET, TURN SIGNAL LENS

33406-377-671

Unavailable

7

HOLDER, FR. TURN SIGNAL SOCKET (NOT AVAILABLE)

33407-377-671

Unavailable

8

TURN SIGNAL ASSY., R. FR. This part replaces 33400-377-671.

33400-461-679

Unavailable

8

TURN SIGNAL ASSY., R. FR. This part replaces 33400-461-670.

33400-461-679

Unavailable

8

TURN SIGNAL ASSY., R. FR.

33400-461-679

Unavailable

8

TURN SIGNAL ASSY., R. FR. This part replaces 33450-377-671.

33400-461-679

Unavailable

9

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33455-377-671.

33405-461-670

Unavailable

10

TURN SIGNAL, R. RR.

33600-449-670

Unavailable

11

RUBBER, RR. TURN SIGNAL SETTING

33606-449-000

Unavailable

12

SOCKET, R. TURN SIGNAL (NOT AVAILABLE)

33610-449-670

Unavailable

13

WIRE B, TURN SIGNAL GROUND (NOT AVAILABLE)

33621-413-000

Unavailable

14

COVER, GROUND TERMINAL (NOT AVAILABLE)

33625-449-000

Unavailable

15

TURN SIGNAL ASSY., L. RR. (NOT AVAILABLE)

33650-449-670

Unavailable

16

SOCKET, L. TURN SIGNAL (NOT AVAILABLE)

33660-449-670

Unavailable

17

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

18

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

18

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

19

BOLT, RR. TURN SIGNAL

90155-415-770

Unavailable

20

SCREW, PAN (4X25) This part replaces 90192-377-671.

93500-04025-0A

$1.93

20

SCREW, PAN (4X25)

93500-04025-0A

$1.93

21

BOLT, HEX. (6X35) This part replaces 93000-06035-0B.

93101-06035-0B

Unavailable

21

BOLT, HEX. (6X35) This part replaces 93000-06035-02.

93101-06035-0B

Unavailable

21

BOLT, HEX. (6X35)

93101-06035-0B

Unavailable

22

SCREW, PAN (3X8)

93500-03008-0H

$1.49

23

NUT, HEX. (10MM)

94001-10000-0S

$1.49

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

WASHER, PLAIN (10MM)

94101-10000

$1.49
