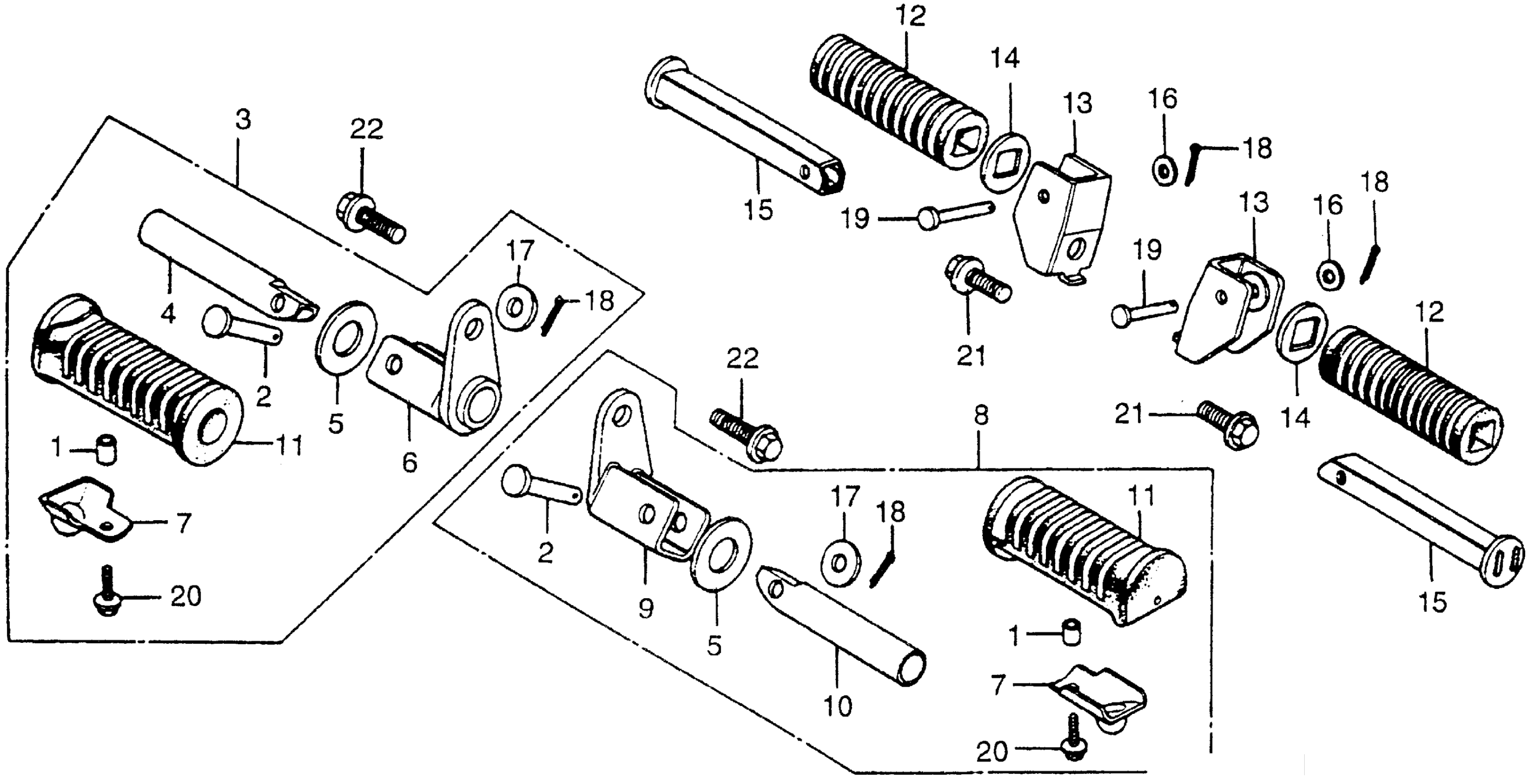

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 STEP Diagram

#

Description
Price

1

COLLAR, INSTRUMENT SETTING

37243-323-000

Unavailable

2

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

2

PIN, STEP BAR JOINT

50603-033-010

$3.30

3

STEP ASSY., R. (NOT AVAILABLE)

50610-449-000

Unavailable

4

BAR, R. FOOTPEG

50612-413-000

Unavailable

5

WASHER, MAIN FOOTPEG

50614-413-000

Unavailable

6

ARM, R. STEP

50615-449-000

Unavailable

7

STOPPER, STEP RUBBER

50619-413-000

Unavailable

8

STEP ASSY., L.

50620-449-000

Unavailable

9

ARM, L. STEP (NOT AVAILABLE)

50625-449-000

Unavailable

10

BAR, L. FOOTPEG (NOT AVAILABLE)

50643-413-000

Unavailable

11

RUBBER, FOOTPEG This part replaces 50661-413-000.

50661-426-000

$13.86

11

RUBBER, FOOTPEG

50661-426-000

$13.86

12

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

12

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

13

BRACKET, PILLION FOOTPEG

50711-415-010

Unavailable

14

WASHER, PILLION FOOTPEG

50712-413-000

$3.47

15

BAR, PILLION STEP (COO) This part replaces 50715-413-000.

50715-413-305

$17.81

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, PLAIN (8MM)

94101-08000

$1.49

18

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

18

PIN, COTTER (1.6X25)

94201-16250

$1.49

19

PIN B, PILLION FOOTPEG

95015-82000

$2.41

20

BOLT, FLANGE (6X18) This part replaces 95700-06018-08.

95701-06018-08

$1.62

20

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

21

BOLT, FLANGE (10X20) | Use up to Frame SN 2013500 This part replaces 95700-10020-08.

95701-10020-08

$2.25

21

BOLT, FLANGE (10X20) | Use up to Frame SN 2013500

95701-10020-08

$2.25

21

BOLT, FLANGE (10X20) | Use up to Frame SN 2013500 This part replaces 95701-10020-18.

95701-10020-08

$2.25

21

BOLT, FLANGE (10X20) | Use from Frame SN 2013501 This part replaces 95700-10020-00.

95701-10020-00

$2.23

21

BOLT, FLANGE (10X20) | Use from Frame SN 2013501

95701-10020-00

$2.23

22

BOLT, SOCKET (10X25)

90117-ME8-000

Unavailable

22

BOLT, SOCKET (10X25) This part replaces 90117-449-000.

90117-ME8-000

Unavailable
