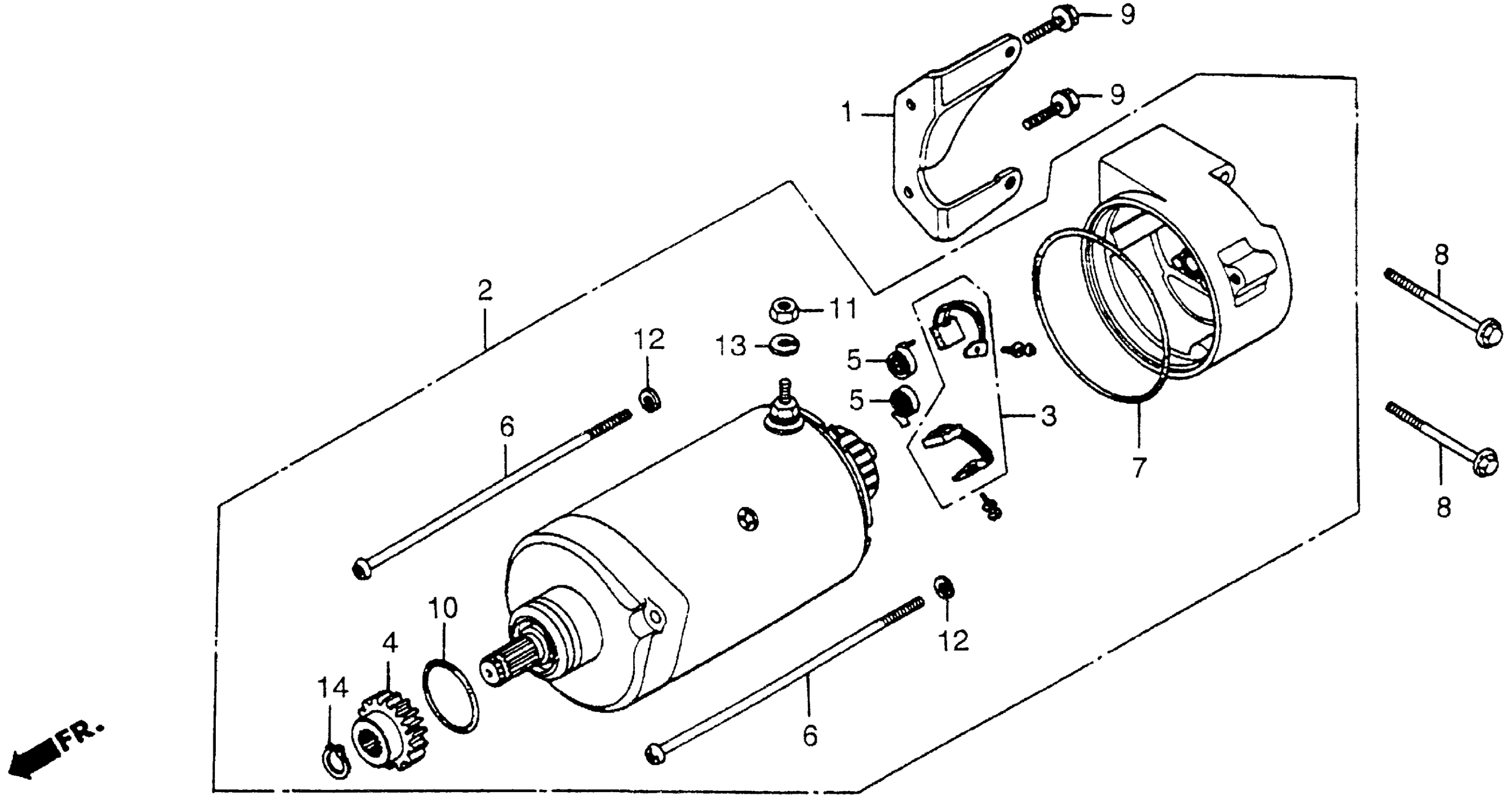

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 STARTER MOTOR Diagram

STAY, STARTER MOTOR (NOT AVAILABLE)

11312-415-000

Unavailable

STARTER MOTOR ASSY. This part replaces 31200-449-008.

31200-449-405

Unavailable

BRUSH SET, CARBON

31201-292-158

$26.15

GEAR, STARTER MOTOR (27T) (NOT AVAILABLE)

31201-415-000

Unavailable

SPRING, CARBON BRUSH

31204-292-158

$3.83

O-RING (60X1.4)

31206-402-008

Unavailable

O-RING (60X1.4) This part replaces 31206-415-000.

31206-402-008

Unavailable

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

O-RING (24.4X3.1) This part replaces 91309-300-000.

91312-MG7-003

$6.34

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

CIRCLIP (OUTER) (11MM)

94510-11000

$1.49
