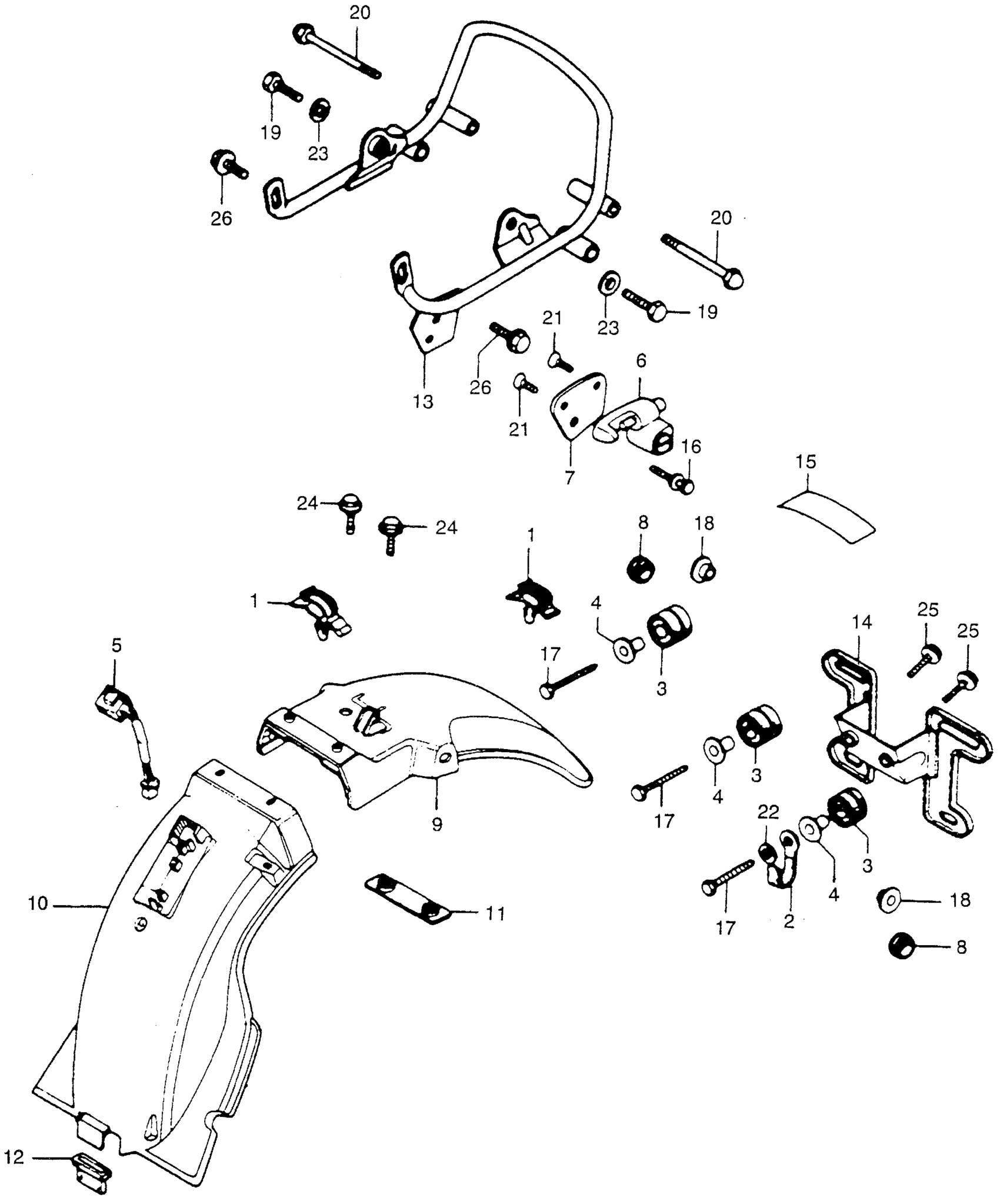

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 REAR FENDER II Diagram

#

Description
Price

NI

BOLT, HELMET HOLDER SETTING

90107-449-000

$3.35

NI

BOLT, CAP (8X80) (SOURCE: VINTAGE PARTS INC.)

92500-08080-0B

Unavailable

NI

BOLT, CAP (8X80)

92600-08080-0B

Unavailable

NI

NUT, FLANGE (8MM)

94050-08080

$1.49

1

CLIP, WIRE HARNESS

32161-393-003

$3.07

2

CLAMP, WIRE (NOT AVAILABLE)

32162-415-000

Unavailable

3

RUBBER, TAILLIGHT MOUNT (NOT AVAILABLE)

33731-415-000

Unavailable

4

COLLAR, TAILLIGHT MOUNT (NOT AVAILABLE)

33732-415-000

Unavailable

5

WARNING ASSY., STOP (NOT AVAILABLE) This part replaces 38570-426-771.

38570-426-772

Unavailable

5

WARNING ASSY., STOP (NOT AVAILABLE)

38570-426-772

Unavailable

6

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

6

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

7

PLATE, HELMET HOLDER (NOT AVAILABLE)

50715-449-000

Unavailable

8

GROMMET B, METER CASE

66219-634-000

Unavailable

9

FENDER, RR. (NOT AVAILABLE)

80100-449-000

Unavailable

10

FENDER B, RR. (NOT AVAILABLE)

80105-449-000

Unavailable

11

PLATE, RR. FENDER (NOT AVAILABLE)

80110-415-000

Unavailable

12

RUBBER, FENDER CUSHION (NOT AVAILABLE)

80115-415-000

Unavailable

13

BUMPER, RR. (NOT AVAILABLE)

84101-449-670

Unavailable

14

BRACKET, LICENSE PLATE (NOT AVAILABLE)

84701-449-670

Unavailable

15

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-449-670

Unavailable

15

MARK, ACCESSORY & LOADING CAUTION (NOT AVAILABLE)

87512-449-670

Unavailable

16

BOLT, SPECIAL (8X16MM) (NOT AVAILABLE)

90105-413-000

Unavailable

17

BOLT, TAILLIGHT (NOT AVAILABLE)

90115-415-000

Unavailable

18

WASHER (6X20)

90512-300-000

$3.08

19

BOLT,HEX(8X20) This part replaces 92000-08020-0B.

92101-08020-0B

$1.66

20

BOLT, CAP (6X70) (NOT AVAILABLE)

92500-06070-0B

Unavailable

21

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

21

SCREW, PAN (6X8)

93500-06008

$1.49

21

SCREW, PAN (6X8)

93500-06008-0A

$1.49

21

SCREW, PAN (6X8)

93500-06008-0H

$1.49

21

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

21

SCREW, FLAT (6X8) This part replaces 93600-06008.

93600-06008-0A

Unavailable

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

WASHER, PLAIN (8MM)

94101-08200

$1.49

24

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

24

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

25

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

25

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

26

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

26

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
