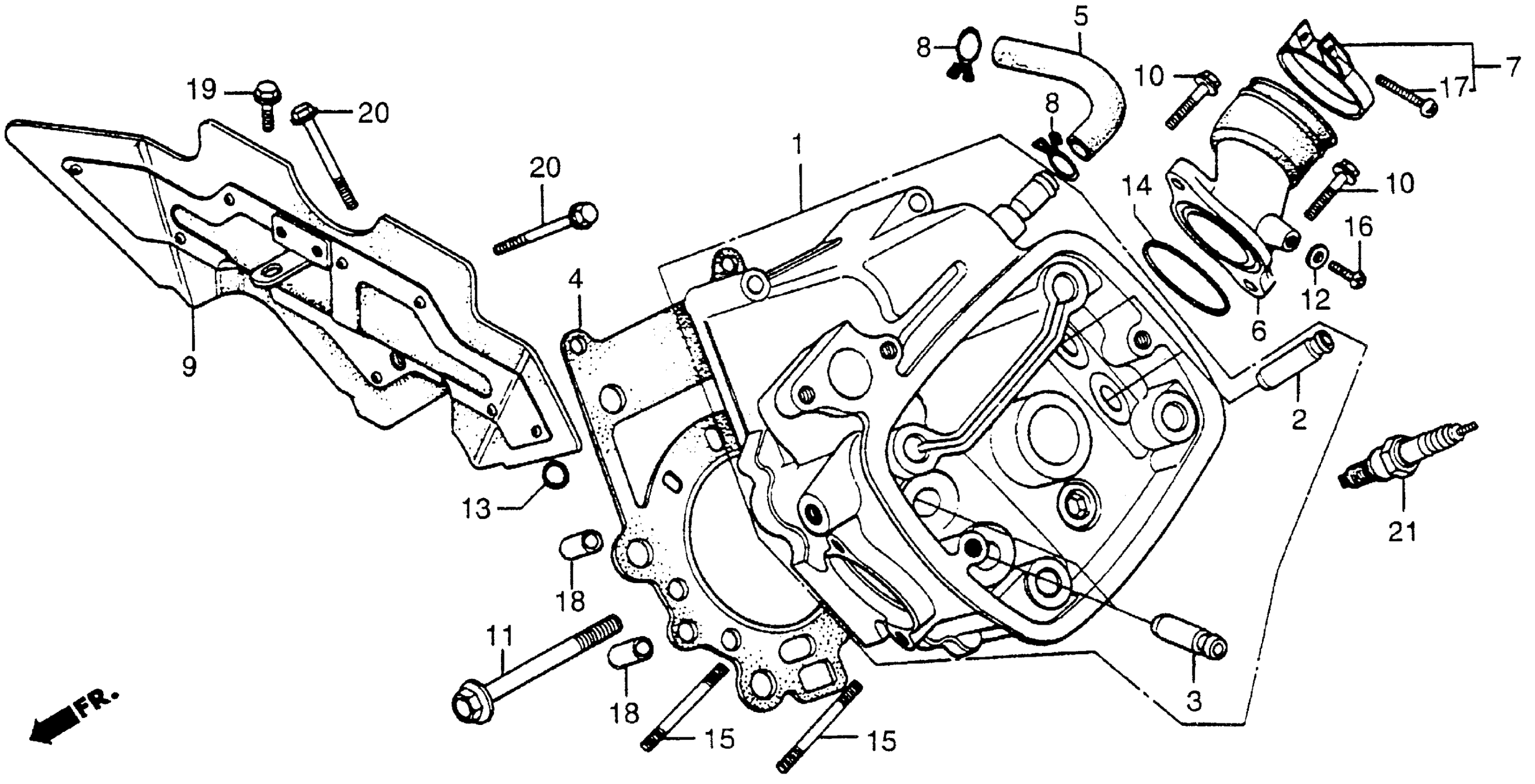

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 LEFT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD, L. (NOT AVAILABLE) This part replaces 12210-449-000.

12210-449-610

Unavailable

1

CYLINDER HEAD, L. (NOT AVAILABLE)

12210-449-610

Unavailable

2

GUIDE, IN VALVE This part replaces 12231-415-305.

12233-MG8-405

Unavailable

2

GUIDE, IN VALVE

12233-MG8-405

Unavailable

3

GUIDE, IN VALVE

12233-MG8-405

Unavailable

3

GUIDE, IN VALVE This part replaces 12241-415-305.

12233-MG8-405

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-415-004.

12251-415-306

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-415-014.

12251-415-306

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-415-024.

12251-415-306

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-415-034.

12251-415-306

Unavailable

4

GASKET, CYLINDER HEAD

12251-415-306

Unavailable

5

TUBE, L. BREATHER

15773-415-000

Unavailable

6

INSULATOR, L. CARBURETOR

16221-415-000

Unavailable

6

INSULATOR, L. CARBURETOR This part replaces 16221-449-003.

16221-415-000

Unavailable

7

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-356-000.

95018-56200

$9.55

7

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

7

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

8

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

9

SPOILER, AIR (NOT AVAILABLE)

19530-449-000

Unavailable

10

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

10

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

11

BOLT, FLANGE (10X75) This part replaces 90025-449-000.

95801-10075-00

$2.11

11

BOLT, FLANGE (10X75)

95801-10075-00

$2.11

12

WASHER, SEALING (5MM)

90452-323-000

$1.59

13

O-RING (8.8X1.9)

91302-GE0-000

$3.23

13

O-RING (8.8X1.9) This part replaces 91302-044-003.

91302-GE0-000

$3.23

14

O-RING (40X2.4)

91325-413-830

$8.72

14

O-RING (40X2.4) This part replaces 91325-567-005.

91325-413-830

$8.72

15

BOLT, STUD (6X55) This part replaces 92700-06055.

92700-06055-0B

$1.54

15

BOLT, STUD (6X55)

92700-06055-0B

$1.54

16

SCREW, PAN (5X8)

93500-05008-0A

$1.49

17

SCREW, PAN (5X20)

93500-05020-0G

$1.49

18

PIN A, DOWEL (8X14)

94301-08140

$2.25

19

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

20

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

20

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

21

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.44

21

SPARK PLUG (X24ES-U) (DENSO)

98069-58727

$2.20
