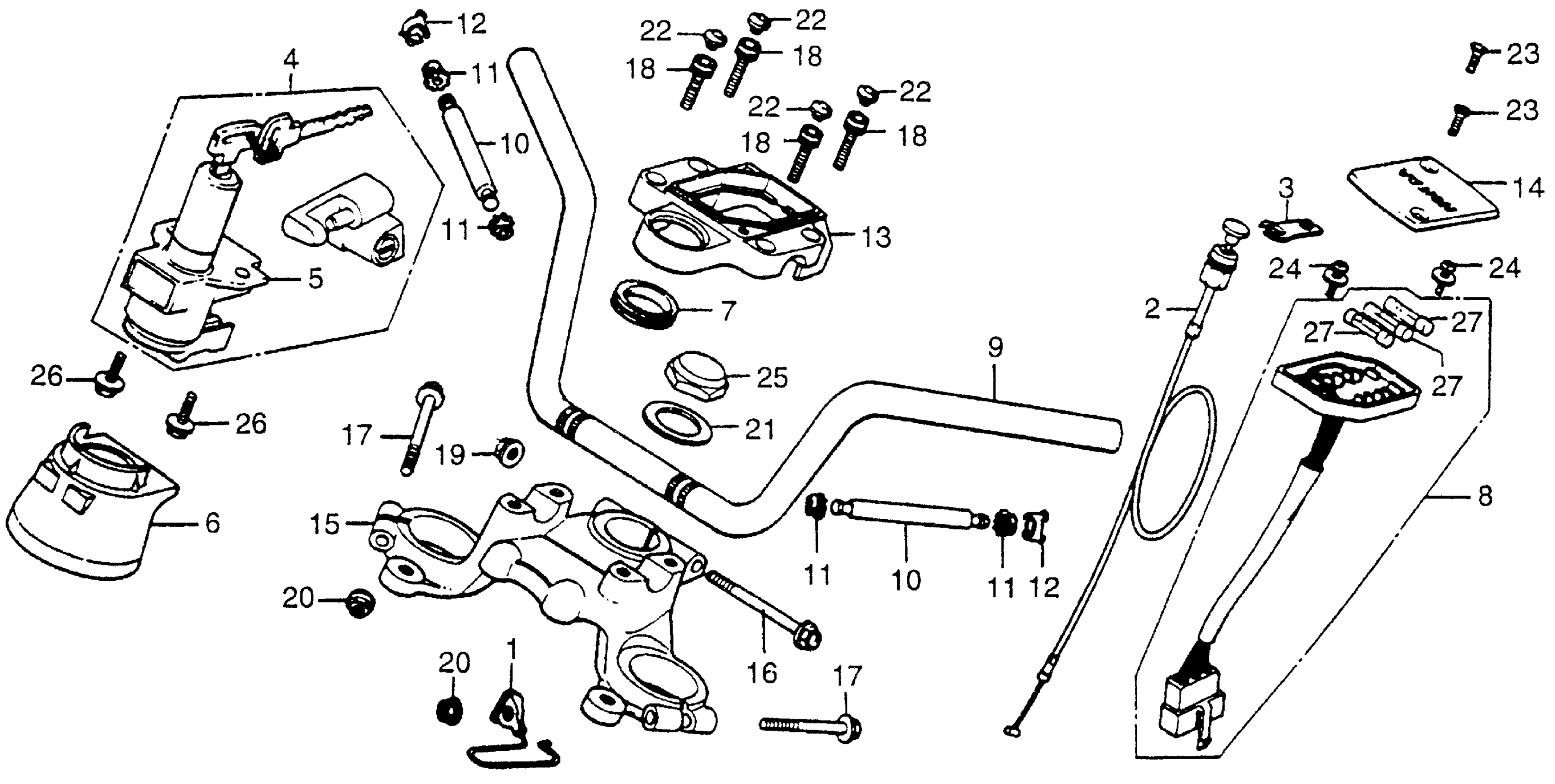

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 HANDLEBAR + TOP BRIDGE + KEY SET Diagram

GUIDE, CABLE (NOT AVAILABLE)

17908-449-000

Unavailable

CABLE, CHOKE

17950-415-000

Unavailable

BRACKET, CHOKE CABLE (NOT AVAILABLE)

17951-415-000

Unavailable

LOCK SET This part replaces 35010-449-000.

35010-449-305

Unavailable

LOCK SET

35010-449-305

Unavailable

SWITCH ASSY., COMBINATION & LOCK

35100-415-017

Unavailable

COVER, COMBINATION SWITCH

35105-449-000

Unavailable

RUBBER, IGNITION SWITCH SETTING (NOT AVAILABLE)

37623-415-000

Unavailable

PLATE ASSY., FUSE

38400-449-000

Unavailable

HANDLEBAR (NOT AVAILABLE)

53100-449-000

Unavailable

WEIGHT, HANDLE

53106-415-000

Unavailable

RUBBER, HANDLE WEIGHT

53107-415-000

Unavailable

RING, HANDLE WEIGHT SNAP

53108-MK4-000

Unavailable

RING, HANDLE WEIGHT SNAP This part replaces 53108-415-004.

53108-MK4-000

Unavailable

HOLDER, HANDLE (UPPER) (NOT AVAILABLE)

53131-415-000

Unavailable

COVER, HANDLEBAR HOLDER (NOT AVAILABLE)

53132-415-010

Unavailable

BRIDGE, FORK TOP *NH105* (MAT BLACK) (NOT AVAILABLE)

53230-415-000ZA

Unavailable

BOLT, FLANGE (8X72) (NOT AVAILABLE)

90124-458-000

Unavailable

BOLT, FLANGE (7X54)

90155-369-000

$6.01

BOLT, HEX. SOCKET (8X32)

90185-371-000

$6.28

NUT, FLANGE (8MM) This part replaces 90303-369-000.

94050-08020

$1.91

NUT, FLANGE (8MM)

94050-08020

$1.91

NUT, FLANGE (7MM)

90355-369-000

$4.94

WASHER, STEERING STEM

90503-283-000

$4.37

CAP, SOCKET BOLT

91456-371-770

$3.47

SCREW, OVAL (5X16)

93700-05016-0G

$1.49

SCREW-WASHER (4X12)

93891-04012-00

$1.49

NUT, STEERING STEM

90304-415-000

$19.83

NUT, STEERING STEM This part replaces 95020-11300.

90304-415-000

$19.83

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

FUSE B (10A)

98200-21000

$1.49
