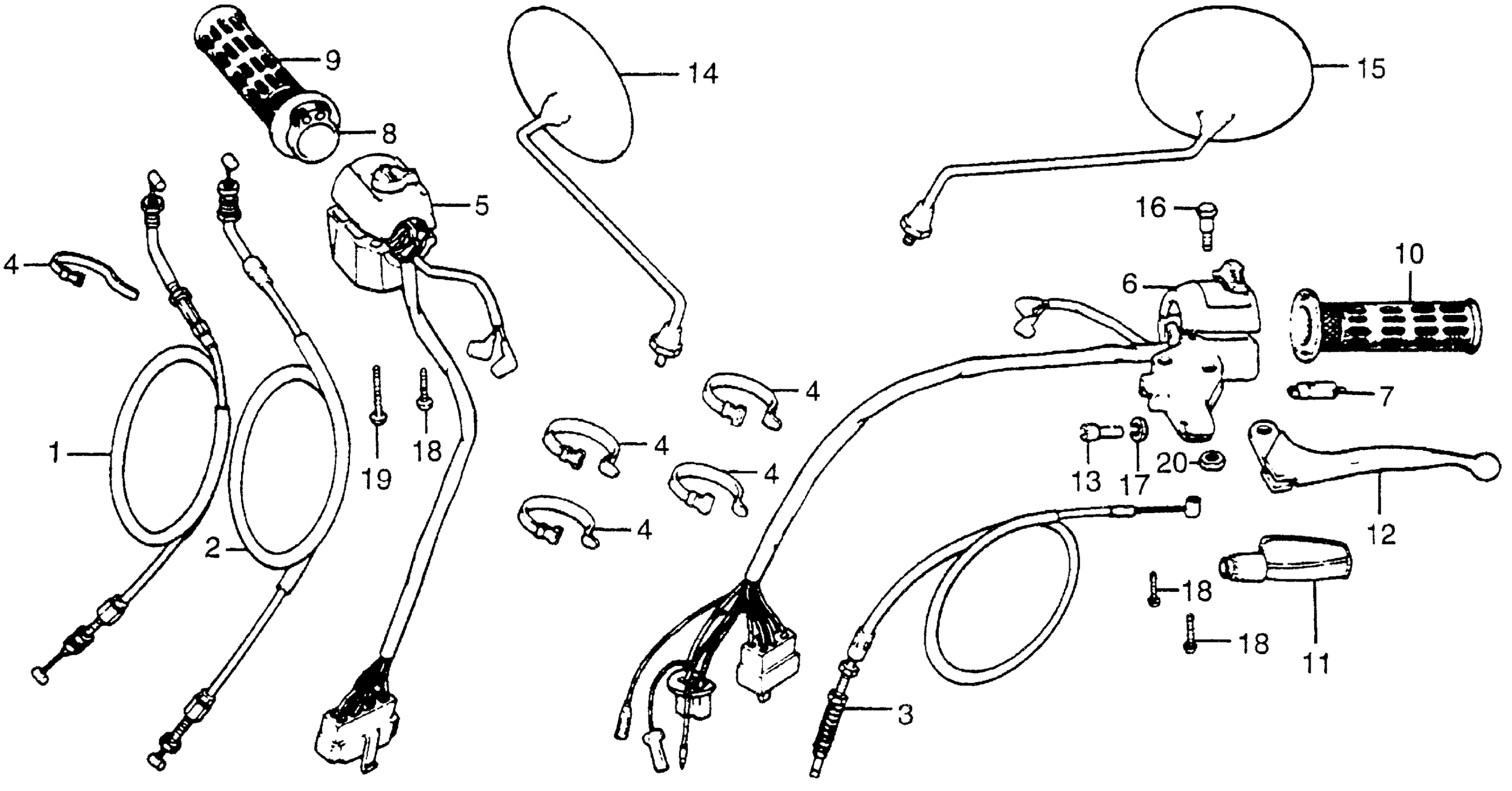

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE (NOT AVAILABLE)

17910-449-000

Unavailable

2

CABLE B, THROTTLE This part replaces 17920-449-000.

17920-449-010

Unavailable

2

CABLE B, THROTTLE

17920-449-010

Unavailable

3

CABLE, CLUTCH This part replaces 22870-MA1-000.

22870-ME2-000

Unavailable

3

CABLE, CLUTCH

22870-ME2-000

Unavailable

3

CABLE, CLUTCH This part replaces 22870-449-000.

22870-ME2-000

Unavailable

4

BAND B1, CABLE

32161-404-000

$2.23

5

SWITCH ASSY., STARTER STOP (NOT AVAILABLE) This part replaces 35130-449-671.

35130-449-750

Unavailable

6

SW,ASSY WINKER This part replaces 35200-449-671.

35200-449-406

Unavailable

7

SWITCH, FR. LEVER

35330-413-003

$21.91

8

PIPE, THROTTLE GRIP

53141-300-010

$20.93

9

GRIP, R. HANDLEBAR

53165-419-670

Unavailable

10

GRIP, L. HANDLEBAR

53166-419-670

Unavailable

11

BOOT, HANDLEBAR This part replaces 53180-425-000.

53180-425-010

$18.53

11

BOOT, HANDLEBAR

53180-425-010

$18.53

12

LEVER, L. HANDLEBAR

53178-399-700

$28.00

12

LEVER, L. HANDLEBAR This part replaces 53190-443-610.

53178-399-700

$28.00

13

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

14

MIRROR, R. (NOT AVAILABLE)

88110-449-000

Unavailable

15

MIRROR, L. (NOT AVAILABLE)

88120-449-000

Unavailable

16

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

17

NUT, FIXING

90321-315-670

$7.31

17

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

18

SCREW, PAN (5X25)

93500-05025-0A

$1.49

19

SCREW, PAN (5X35)

93500-05035-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
