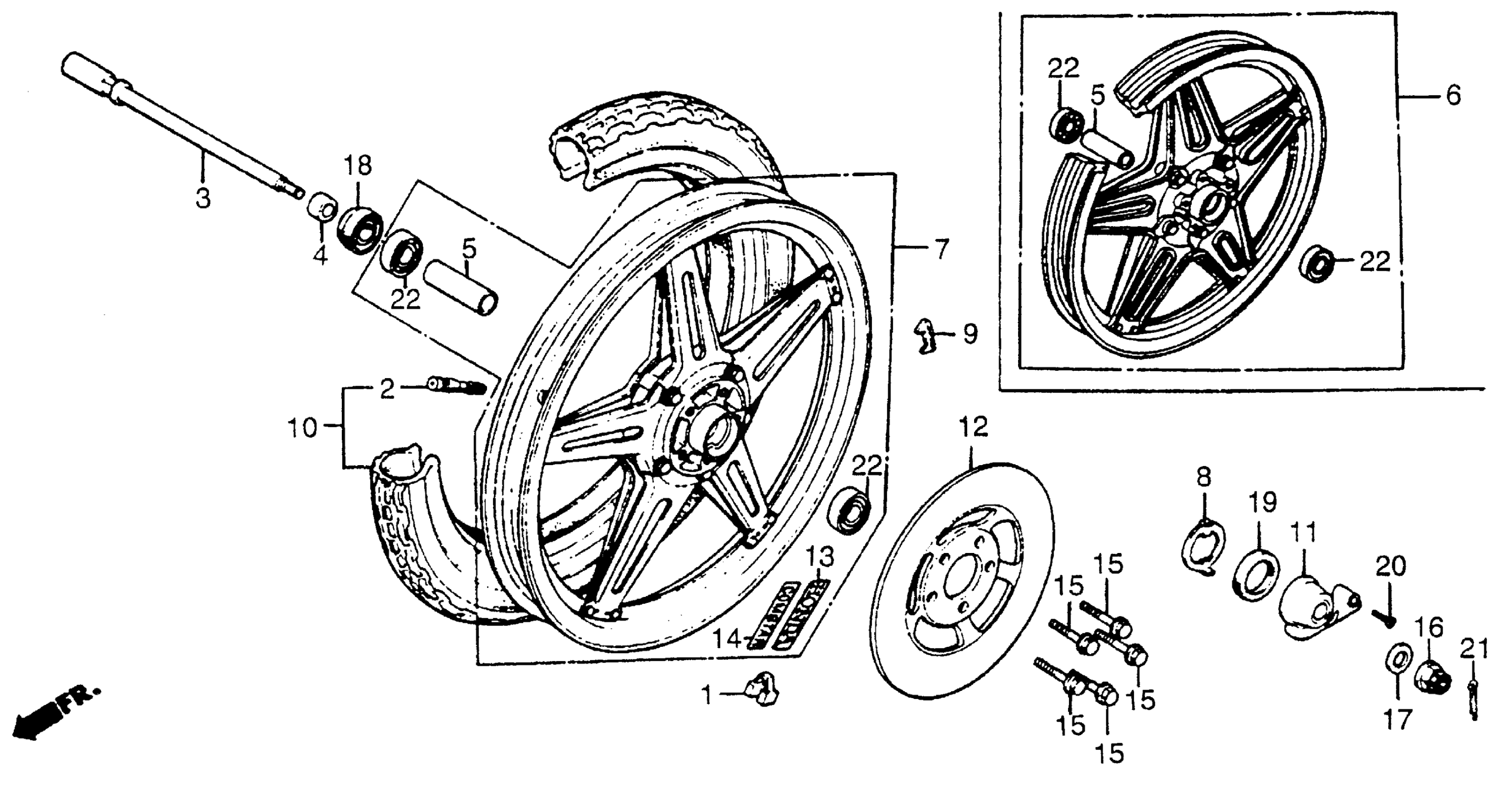

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 FRONT WHEEL + DISC Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

VALVE, RIM (SCHRADER)

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A02.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A01.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-671-692.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-671-962.

42753-SB8-661

$1.93

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-413-000

Unavailable

4

COLLAR, FR. WHEEL

44311-413-000

Unavailable

4

COVER, FR. WHEEL

44607-449-000

Unavailable

5

COLLAR, FR. AXLE DISTANCE

44620-286-000

Unavailable

7

WHEEL, FR. (NOT AVAILABLE)

44650-449-305

Unavailable

8

RETAINER, GEAR BOX

44680-410-000

$5.80

10

TIRE ASSY., FR. (3.50S19) (4PR) (BS) (NOT AVAILABLE)

44710-449-671

Unavailable

10

TIRE ASSY., FR. (3.50S19) (4PR) (DUNLOP) (NOT AVAILABLE)

44710-449-672

Unavailable

11

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)

44800-449-003

Unavailable

12

DISK, FR. BRAKE

45251-415-000

Unavailable

13

MARK, SPOKE PLATE (HONDA) (NOT AVAILABLE)

87108-426-770

Unavailable

14

MARK, SPOKE PLATE (COMSTAR) (NOT AVAILABLE)

87109-426-770

Unavailable

15

BOLT, UBS (8X33)

90112-413-000

$3.85

16

NUT, AXLE (14MM)

90305-401-680

$11.65

17

WASHER (15.2X25)

90557-230-000

$2.39

18

OIL SEAL (26X42X7)

91252-230-003

$10.56

18

OIL SEAL (26X42X7)

91252-230-003

$10.56

18

OIL SEAL (26X42X7) This part replaces 91252-230-005.

91252-230-003

$10.56

19

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

20

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

21

PIN, COTTER (3.0X45)

94201-30450

$1.49

22

BEARING, RADIAL BALL (6302Z)

96120-63020-10

Unavailable
