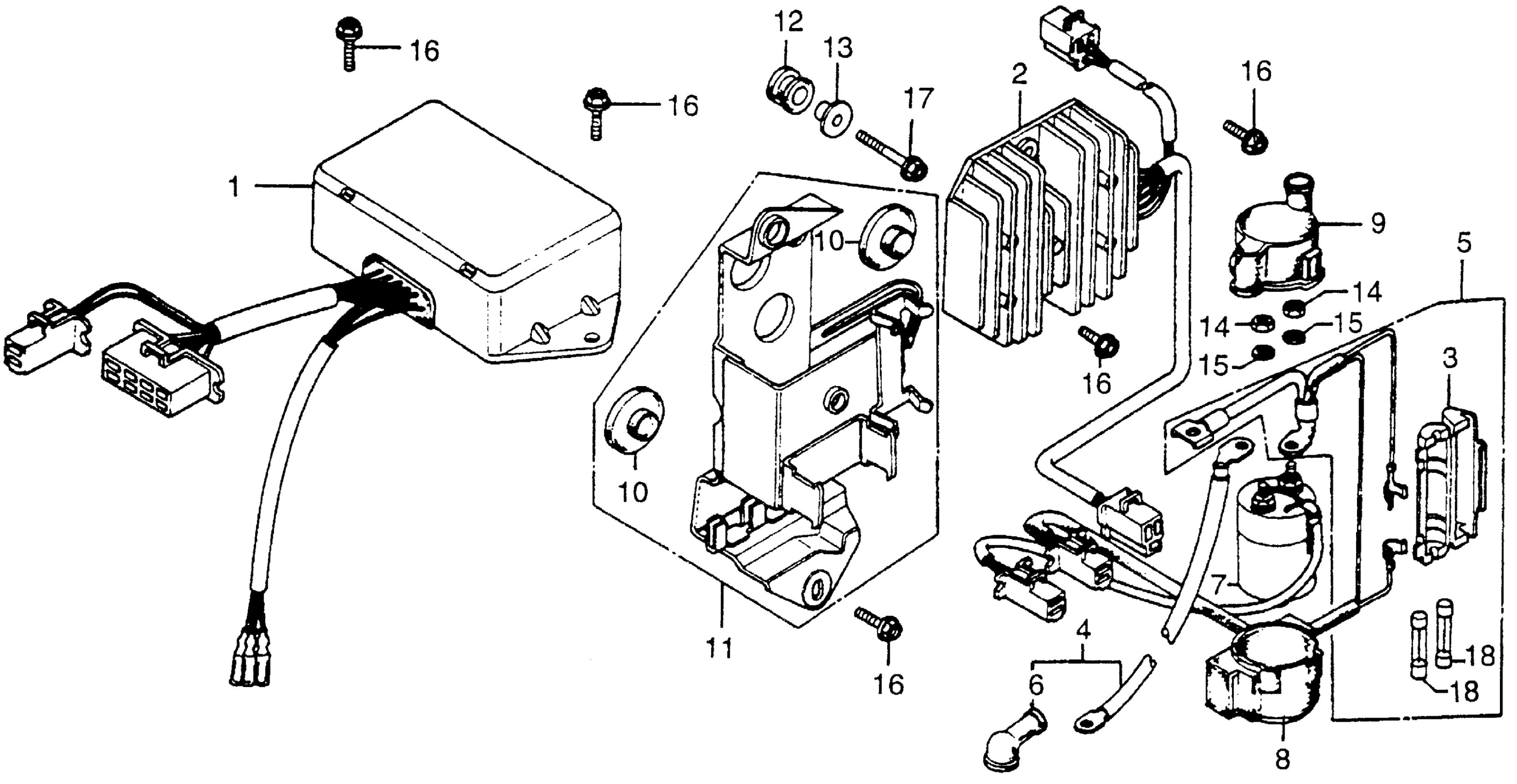

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 ELECTRIC PLATE + C.D.I. UNIT Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI) (HITACHI) (NOT AVAILABLE) This part replaces 30400-415-005.

30400-415-015

Unavailable

1

MODULE, IGNITION CONTROL (CDI) (HITACHI) (NOT AVAILABLE)

30400-415-015

Unavailable

2

RECTIFIER ASSY., REGULATOR

31600-415-008

Unavailable

3

CASE, FUSE (20A) (NOT AVAILABLE)

32125-415-000

Unavailable

4

CABLE, STARTER MOTOR (NOT AVAILABLE) | Use up to Frame SN 2016023 This part replaces 32310-415-000.

32410-415-000

Unavailable

4

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-415-000

Unavailable

5

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-415-000

Unavailable

6

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

6

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

7

SWITCH ASSY., STARTER MAGNETIC

35850-HA8-771

Unavailable

7

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-415-007.

35850-HA8-771

Unavailable

7

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-958-680.

35850-HA8-771

Unavailable

8

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

8

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

9

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-415-000

Unavailable

10

RUBBER B, BATTERY

50327-300-000

$4.58

10

RUBBER B, BATTERY This part replaces 50327-300-010.

50327-300-000

$4.58

11

PLATE, ELECTRIC (NOT AVAILABLE)

50340-449-000

Unavailable

12

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

13

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

13

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

13

COLLAR, RR. FENDER

61105-428-000

Unavailable

14

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

14

NUT, HEX. (6MM)

94002-06080-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

15

WASHER, SPRING (6MM)

94111-06800

$1.49

16

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

16

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

17

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

17

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

18

FUSE (20A)

98200-22000

$1.49
