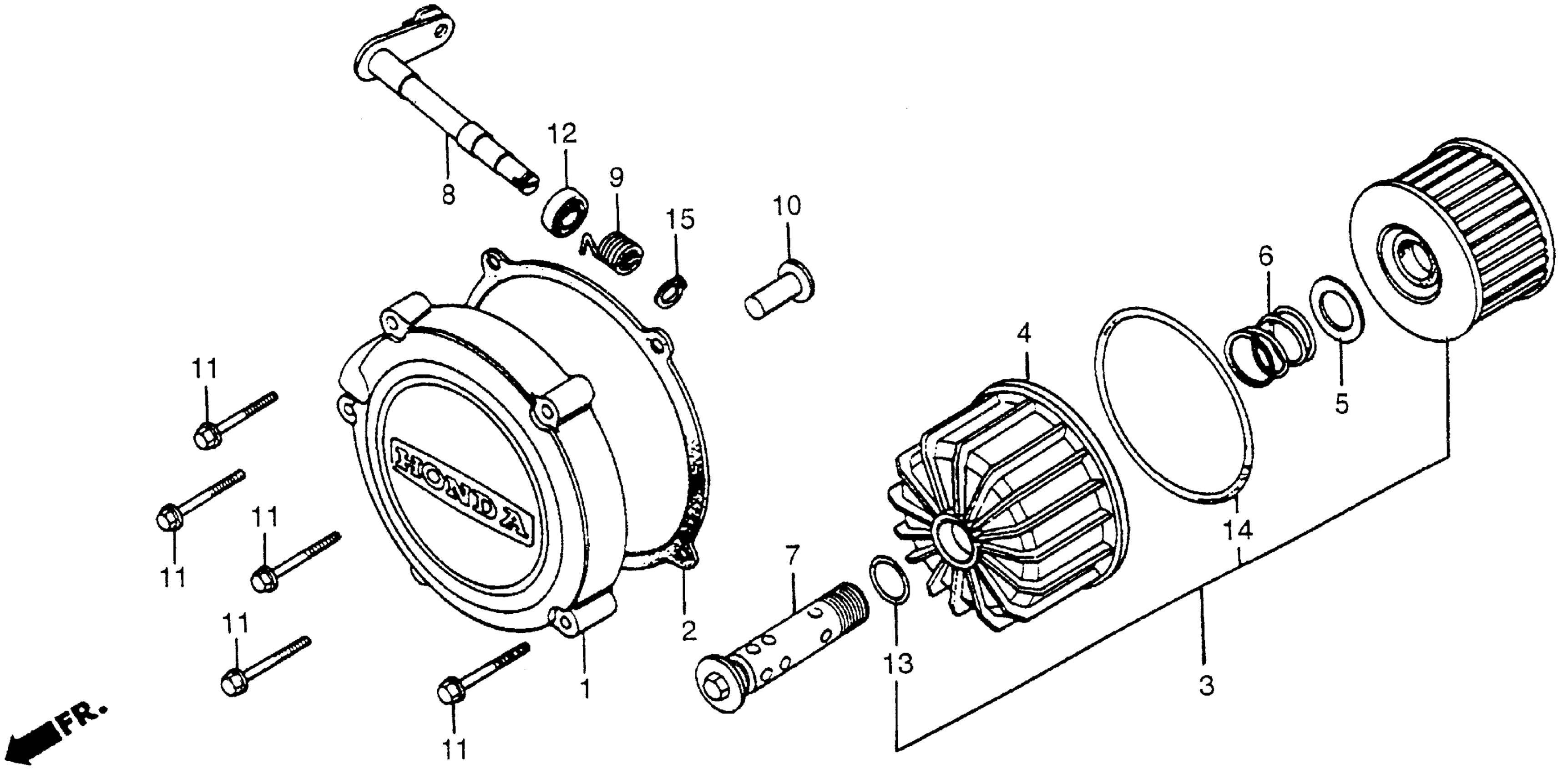

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 CLUTCH COVER + OIL FILTER Diagram

#

Description
Price

1

COVER, CLUTCH

11370-449-000

Unavailable

2

GASKET, CLUTCH COVER This part replaces 11372-415-000.

11372-449-306

Unavailable

2

GASKET, CLUTCH COVER

11372-449-306

Unavailable

2

GASKET, CLUTCH COVER This part replaces 11372-449-700.

11372-449-306

Unavailable

3

ELEMENT, OIL FILTER This part replaces 154A1-MA6-000.

154A1-413-505

$9.47

3

ELEMENT, OIL FILTER This part replaces 154A1-413-005.

154A1-413-505

$9.47

3

FILTER, OIL

154A1-415-000

Unavailable

3

ELEMENT, OIL FILTER This part replaces 15412-413-005.

154A1-413-505

$9.47

4

CASE, OIL FILTER (NOT AVAILABLE)

15411-449-000

Unavailable

5

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

6

SPRING, FILTER ELEMENT SETTING

15415-413-000

$3.47

7

BOLT, OIL FILTER CENTER

15420-449-000

Unavailable

8

SHAFT, CLUTCH LEVER (NOT AVAILABLE)

22811-449-000

Unavailable

9

SPRING, CLUTCH LEVER

22815-413-000

$3.08

10

ROD, CLUTCH LIFTER

22847-415-000

$7.18

11

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

11

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

12

OIL SEAL (12X18X3) (ARAI)

91201-951-003

$3.67

13

O-RING (15X2.5)

91302-377-000

$5.31

14

O-RING (81X4.5) (ARAI) This part replaces 91311-415-000.

91315-MA6-003

$3.13

14

O-RING (81X4.5) (ARAI)

91315-MA6-003

$3.13

15

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49
