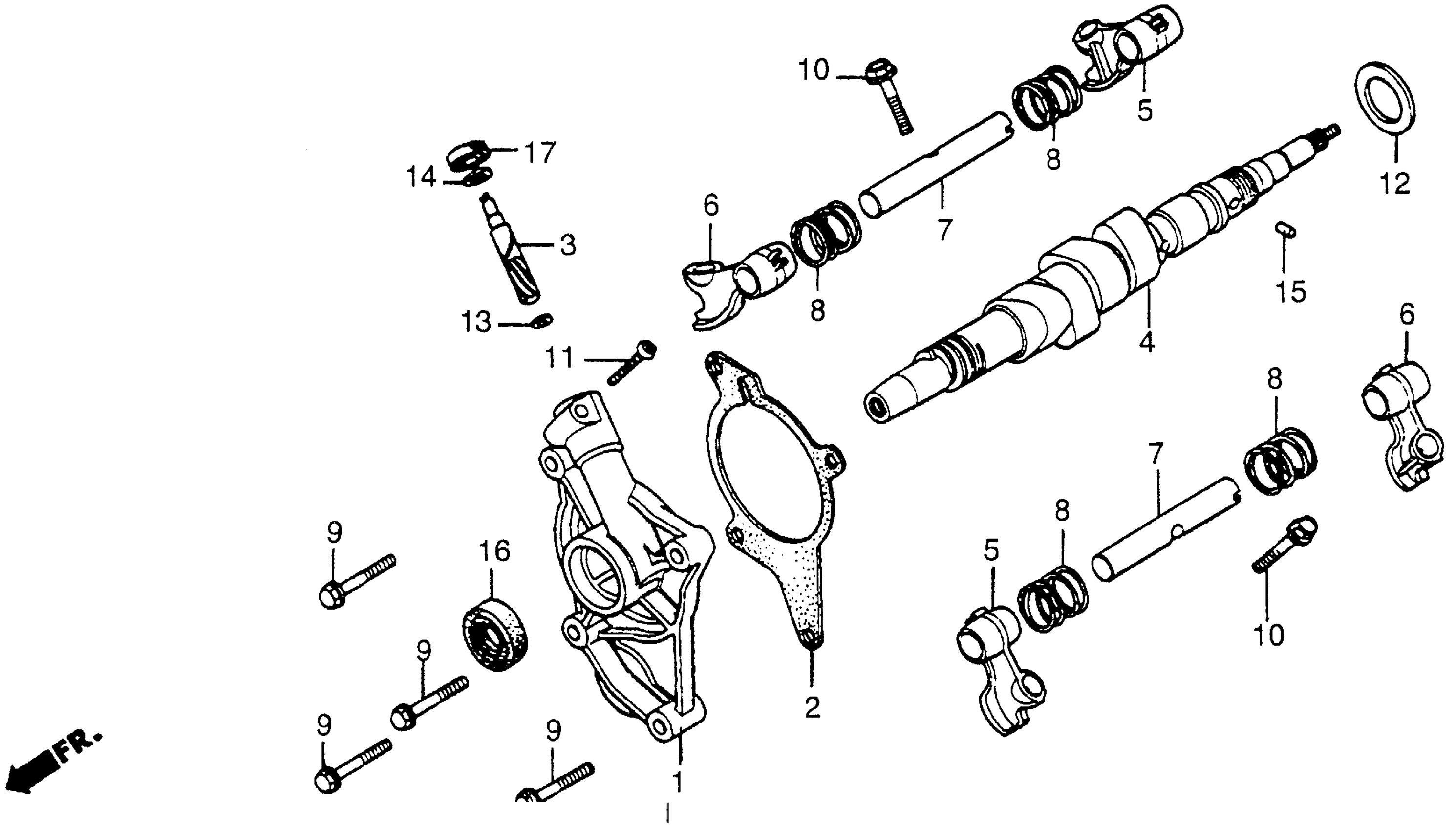

Honda CX500CA (79) CUSTOM, JPN, VIN# PC01-2000017 CAMSHAFT + LOWER ROCKER ARM Diagram

#

Description
Price

1

HOLDER, CAMSHAFT (NOT AVAILABLE) | Use up to Engine SN 2001260 This part replaces 12221-415-000.

12221-415-010

Unavailable

1

HOLDER, CAMSHAFT (NOT AVAILABLE)

12221-415-010

Unavailable

2

GASKET, CAMSHAFT HOLDER This part replaces 12230-415-000.

12230-415-306

Unavailable

2

GASKET, CAMSHAFT HOLDER

12230-415-306

Unavailable

2

GASKET, CAMSHAFT HOLDER This part replaces 12230-449-700.

12230-415-306

Unavailable

3

GEAR, TACHOMETER (NOT AVAILABLE) This part replaces 12431-415-000.

12431-415-010

Unavailable

3

GEAR, TACHOMETER (NOT AVAILABLE)

12431-415-010

Unavailable

4

CAMSHAFT (NOT AVAILABLE) | Use up to Engine SN 2012116 This part replaces 14100-415-000.

14100-MA1-000

Unavailable

4

CAMSHAFT (NOT AVAILABLE)

14100-MA1-000

Unavailable

4

CAMSHAFT (NOT AVAILABLE) This part replaces 14100-415-010.

14100-MA1-000

Unavailable

4

CAMSHAFT (NOT AVAILABLE) This part replaces 14100-415-020.

14100-MA1-000

Unavailable

4

CAMSHAFT (NOT AVAILABLE) This part replaces 14100-415-030.

14100-MA1-000

Unavailable

5

ARM A, ROCKER (LOWER) This part replaces 14441-415-000.

14441-415-010

Unavailable

5

ARM A, ROCKER (LOWER)

14441-415-010

Unavailable

6

ARM B, ROCKER (LOWER) (NOT AVAILABLE) This part replaces 14442-415-000.

14442-415-010

Unavailable

6

ARM B, ROCKER (LOWER) (NOT AVAILABLE)

14442-415-010

Unavailable

7

SHAFT, ROCKER ARM (LOWER) (NOT AVAILABLE) This part replaces 14451-415-000.

14451-ME7-000

Unavailable

8

SPRING A, VALVE ROCKER ARM (NOT AVAILABLE)

14453-415-000

Unavailable

9

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

9

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

10

BOLT, SPECIAL (6X30) (NOT AVAILABLE)

90008-415-000

Unavailable

11

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

12

WASHER, THRUST (26MM) This part replaces 90407-393-000.

90407-415-000

$5.64

13

WASHER

90441-044-300

Unavailable

14

WASHER, THRUST (6.7MM) (NOT AVAILABLE)

90458-324-000

Unavailable

15

ROLLER (5X8.5) (NOT AVAILABLE)

91105-415-000

Unavailable

16

OIL SEAL (17X28X7) This part replaces 91201-415-003.

91201-415-013

$5.53

16

OIL SEAL (17X28X7)

91201-415-013

$5.53

17

OIL SEAL (6X14.5X5)

91211-415-003

Unavailable

17

OIL SEAL (6X14.5X5) This part replaces 91211-415-004.

91211-415-003

Unavailable
