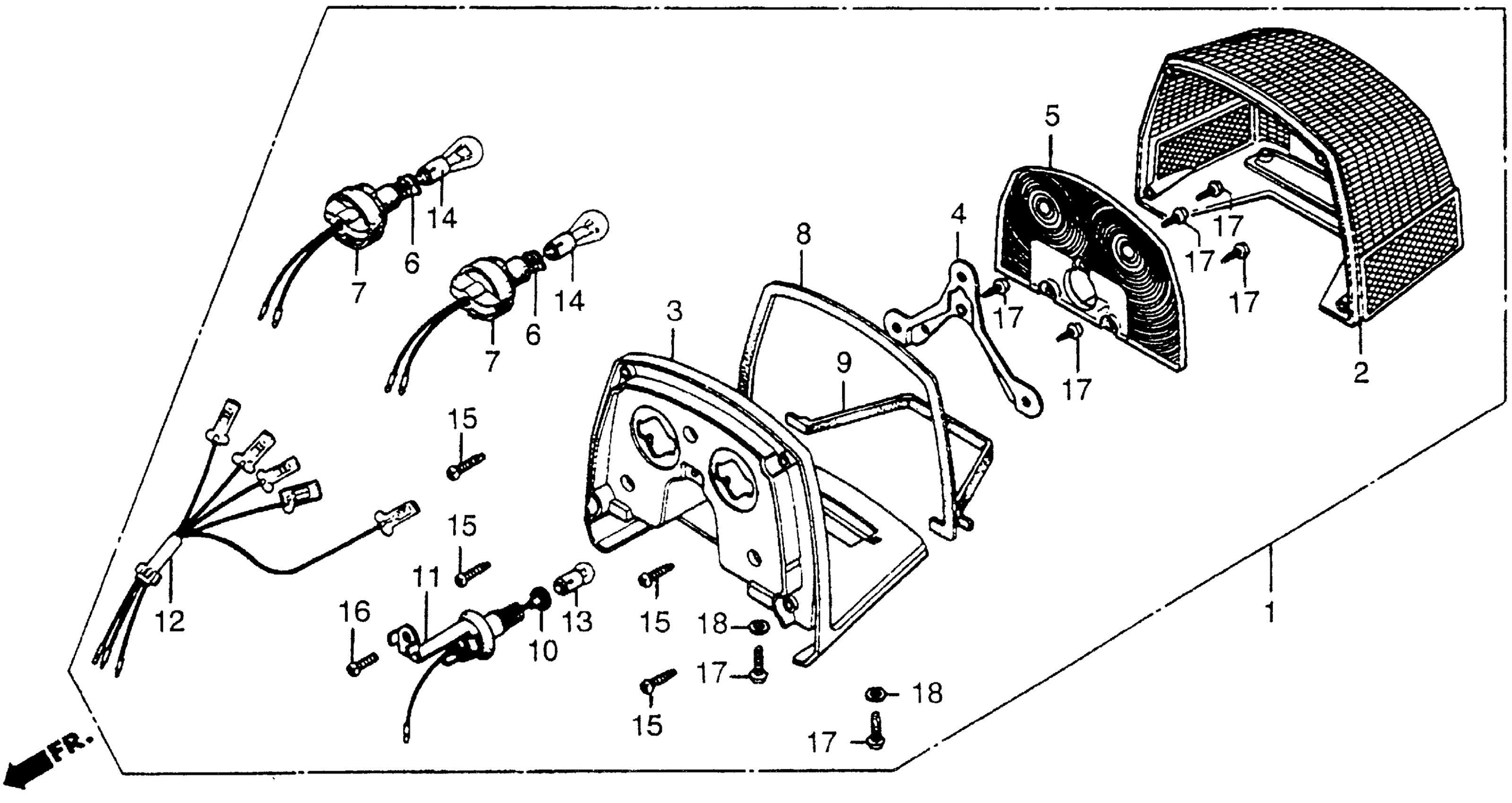

Honda CX500A (79) MOTORCYCLE, JPN, VIN# CX500-2100006 TAILLIGHT I Diagram

#

Description
Price

1

TAILLIGHT ASSY. (STANLEY) (NOT AVAILABLE)

33700-415-672

Unavailable

2

LENS, TAILLIGHT (NOT AVAILABLE)

33702-415-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-415-013

Unavailable

4

STAY, TAILLIGHT (NOT AVAILABLE)

33704-415-003

Unavailable

5

LENS, TAILLIGHT SUB (NOT AVAILABLE)

33705-415-671

Unavailable

6

CABLE, TAILLIGHT

33708-147-003

Unavailable

6

CABLE, TAILLIGHT This part replaces 33708-371-601.

33708-147-003

Unavailable

7

SOCKET, STOP & TAILLIGHT (NOT AVAILABLE)

33710-415-003

Unavailable

8

GASKET A, TAILLIGHT LENS (NOT AVAILABLE)

33711-415-003

Unavailable

9

GASKET B, TAILLIGHT LENS (NOT AVAILABLE)

33712-415-003

Unavailable

10

WIRE, LICENSE LIGHT

33713-415-003

Unavailable

11

SOCKET, LICENSE LIGHT (NOT AVAILABLE)

33715-415-003

Unavailable

12

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33718-415-003

Unavailable

13

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

13

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

13

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

13

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

13

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

14

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

14

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

15

SCREW, PAN (4X10)

93500-04010-0A

$1.49

16

SCREW, TAPPING (4X12)

93901-34310

$1.49

17

SCREW, TAPPING (4X16)

93901-34410

$1.49

18

WASHER, PLAIN (4MM)

94101-04000

$1.49
