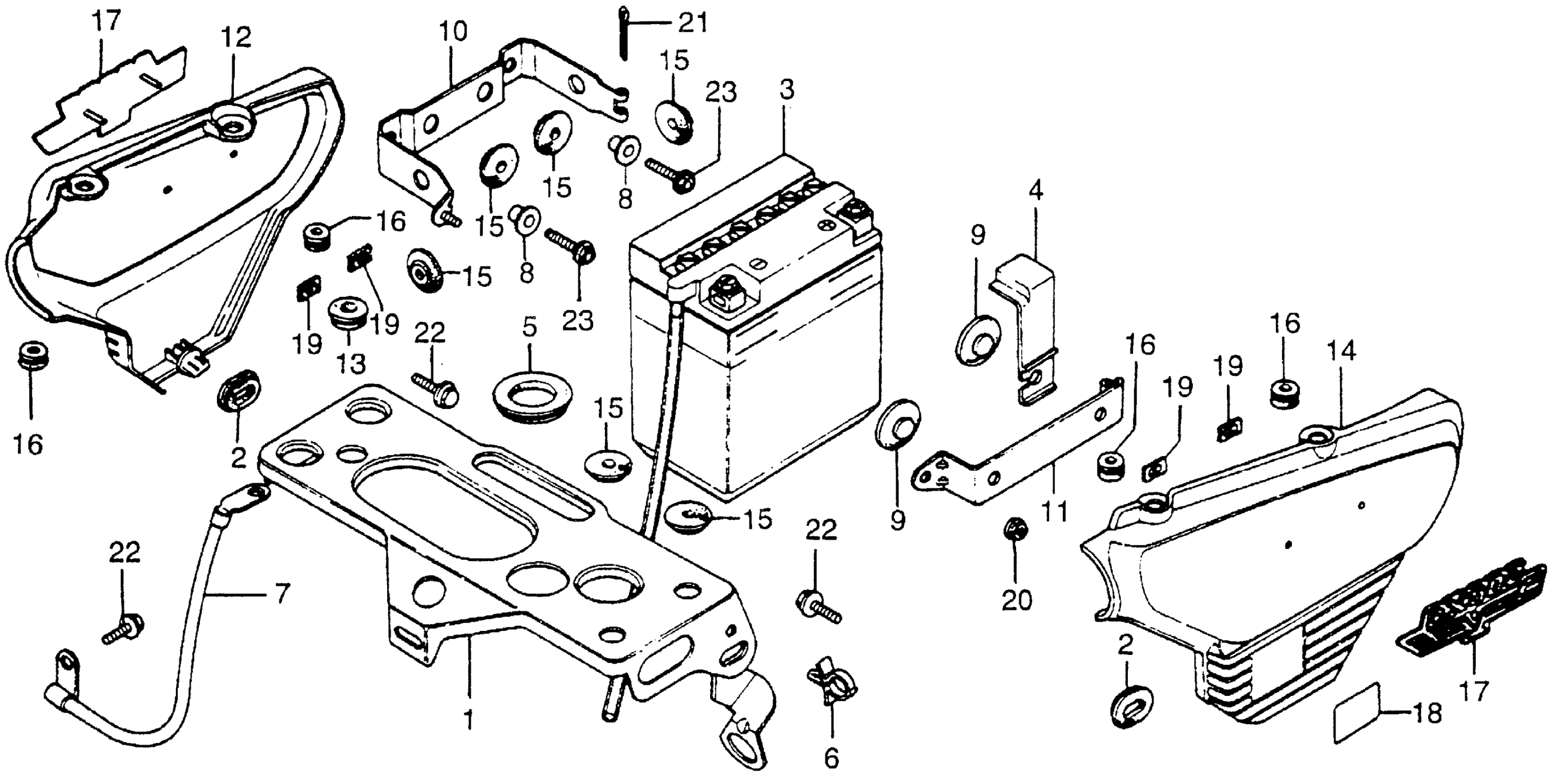

Honda CX500A (79) MOTORCYCLE, JPN, VIN# CX500-2100006 SIDE COVER + BATTERY Diagram

#

Description
Price

1

PLATE, AIR CLEANER HOLDER (NOT AVAILABLE)

17215-415-000

Unavailable

2

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

3

BATTERY (12N14-3A) This part replaces 31500-415-671.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 31500-425-671.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 31500-425-672.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 31500-425-677.

31500-425-672AH

$65.05

4

COVER, BATTERY (NOT AVAILABLE)

31561-415-000

Unavailable

5

GROMMET, WIRE

32112-611-000

Unavailable

6

CLIP, IGNITION WIRE (8MM) This part replaces 32175-647-920.

30701-883-000

$2.91

7

CABLE, BATTERY GROUND

32601-415-000

Unavailable

8

COLLAR, CHAIN CASE (NOT AVAILABLE)

40514-147-000

Unavailable

9

RUBBER B, BATTERY

50327-300-000

$4.58

9

RUBBER B, BATTERY This part replaces 50327-300-010.

50327-300-000

$4.58

10

BAND A, BATTERY

50327-415-000

Unavailable

11

BAND B, BATTERY (NOT AVAILABLE)

50328-415-000

Unavailable

12

COVER, R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83500-415-000ZD

Unavailable

12

COVER, R. SIDE *R8CS* (CANDY PRESTO RED)

83500-415-000ZE

Unavailable

13

GROMMET, SIDE COVER (NOT AVAILABLE)

83551-385-000

Unavailable

14

COVER, L. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83600-415-000ZD

Unavailable

14

COVER, L. SIDE *R8CS* (CANDY PRESTO RED) (NOT AVAILABLE)

83600-415-000ZE

Unavailable

15

RUBBER, BATTERY BOX

83618-323-000

$2.47

16

GROMMET, SIDE COVER SETTING

83705-413-000

$4.17

17

EMBLEM, SIDE COVER (NOT AVAILABLE)

87125-415-770

Unavailable

18

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

19

NUT, SPEED (3MM)

90315-504-000

$3.21

20

NUT, FLANGE (6MM)

94050-06080

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

21

PIN, COTTER (3.0X45)

94201-30450

$1.49

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

23

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

23

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
