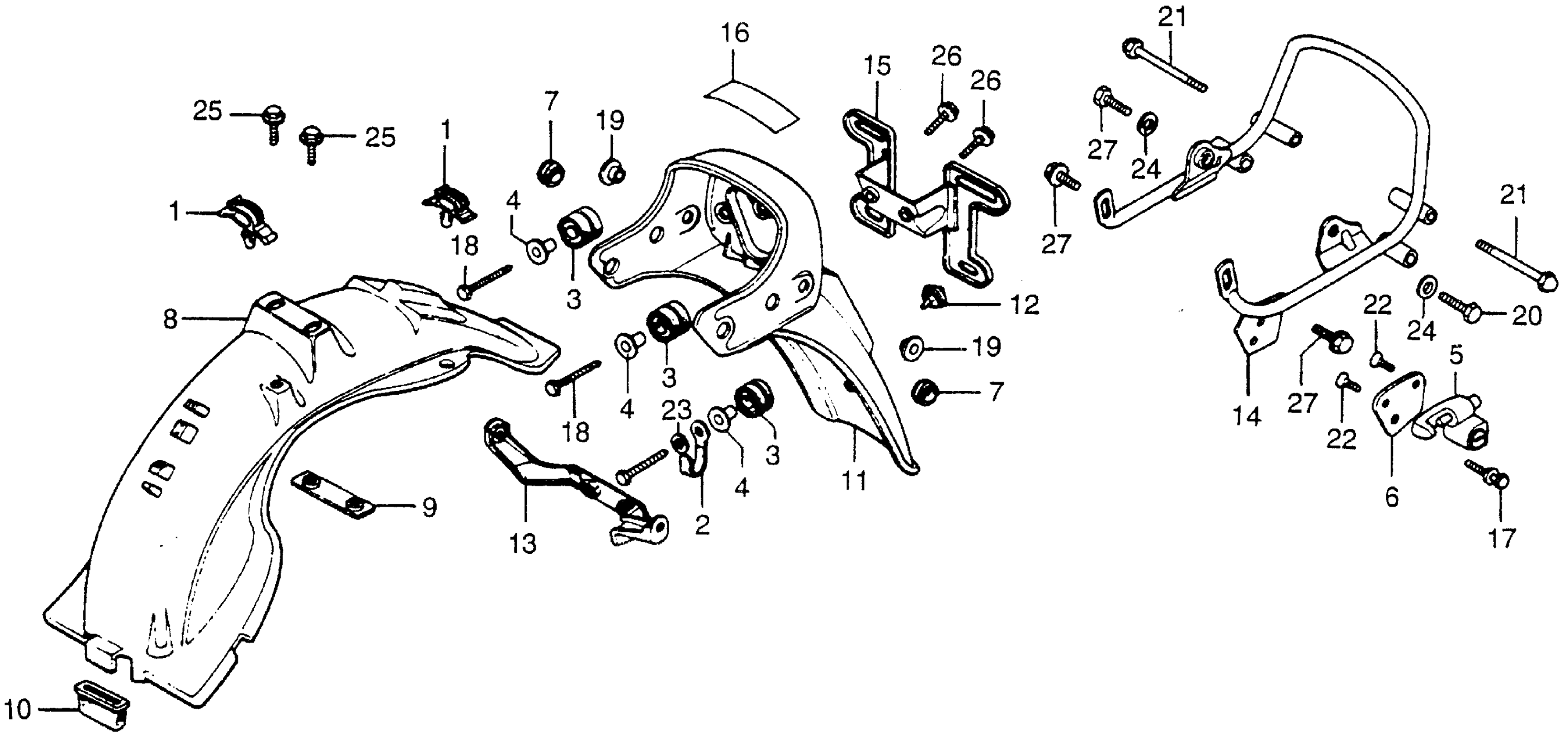

Honda CX500A (79) MOTORCYCLE, JPN, VIN# CX500-2100006 REAR FENDER I Diagram

#

Description
Price

1

CLIP, WIRE HARNESS

32161-393-003

$3.07

2

CLAMP, WIRE (NOT AVAILABLE)

32162-415-000

Unavailable

3

RUBBER, TAILLIGHT MOUNT (NOT AVAILABLE)

33731-415-000

Unavailable

4

COLLAR, TAILLIGHT MOUNT (NOT AVAILABLE)

33732-415-000

Unavailable

5

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

5

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

6

PLATE, HELMET HOLDER (NOT AVAILABLE)

50715-415-000

Unavailable

7

GROMMET B, METER CASE

66219-634-000

Unavailable

8

FENDER, RR. (NOT AVAILABLE)

80100-415-000

Unavailable

9

PLATE, RR. FENDER (NOT AVAILABLE)

80110-415-000

Unavailable

10

RUBBER, FENDER CUSHION (NOT AVAILABLE)

80115-415-000

Unavailable

11

COWL, RR. *NH1* (BLACK) (NOT AVAILABLE)

80500-415-000ZD

Unavailable

11

COWL, RR. *R8CS* (CANDY PRESTO RED)

80500-415-000ZE

Unavailable

12

PLUG, RR. COWL (NOT AVAILABLE)

80501-415-000

$2.64

13

STAY, RR. COWL

80510-415-000

Unavailable

14

BUMPER, RR. (NOT AVAILABLE)

84101-415-000

Unavailable

15

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-415-670

Unavailable

16

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-415-671

Unavailable

17

BOLT, SPECIAL (8X16MM) (NOT AVAILABLE)

90105-413-000

Unavailable

18

BOLT, TAILLIGHT (NOT AVAILABLE)

90115-415-000

Unavailable

19

WASHER (6X20)

90512-300-000

$3.08

20

BOLT,HEX(8X20) This part replaces 92000-08020-0B.

92101-08020-0B

$1.66

21

BOLT, CAP (6X70) (NOT AVAILABLE)

92500-06070-0B

Unavailable

22

SCREW, FLAT (6X8) This part replaces 93600-06008.

93600-06008-0A

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

WASHER, PLAIN (8MM)

94101-08200

$1.49

25

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

25

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

26

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

26

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

27

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

27

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
