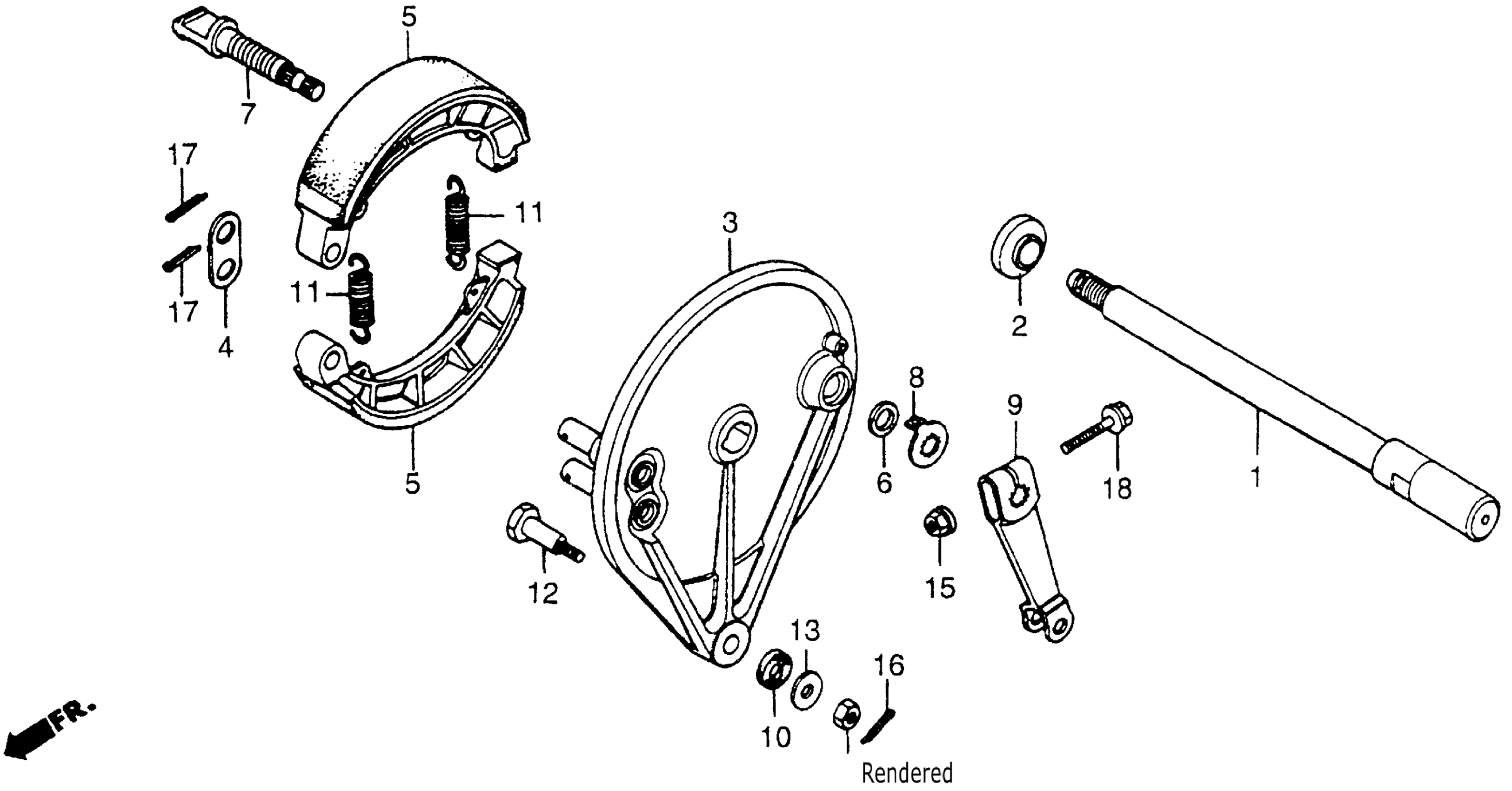

Honda CX500A (79) MOTORCYCLE, JPN, VIN# CX500-2100006 REAR BRAKE PANEL Diagram

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-415-000

Unavailable

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42311-415-000

Unavailable

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-415-000

Unavailable

WASHER, ANCHOR PIN

43102-319-000

$6.21

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

SHOE, BRAKE

43120-MW3-671

$44.36

SHOE, BRAKE This part replaces 43120-415-000.

43120-MW3-671

$44.36

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

CAM, RR. BRAKE (NOT AVAILABLE)

43141-415-000

Unavailable

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-415-000

Unavailable

ARM, RR. BRAKE (NOT AVAILABLE)

43410-415-000

Unavailable

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

PIN, COTTER (2.0X22)

94201-20220

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X22)

94201-29220

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

BOLT, FLANGE (8X40)

95701-08040-00

$1.49
