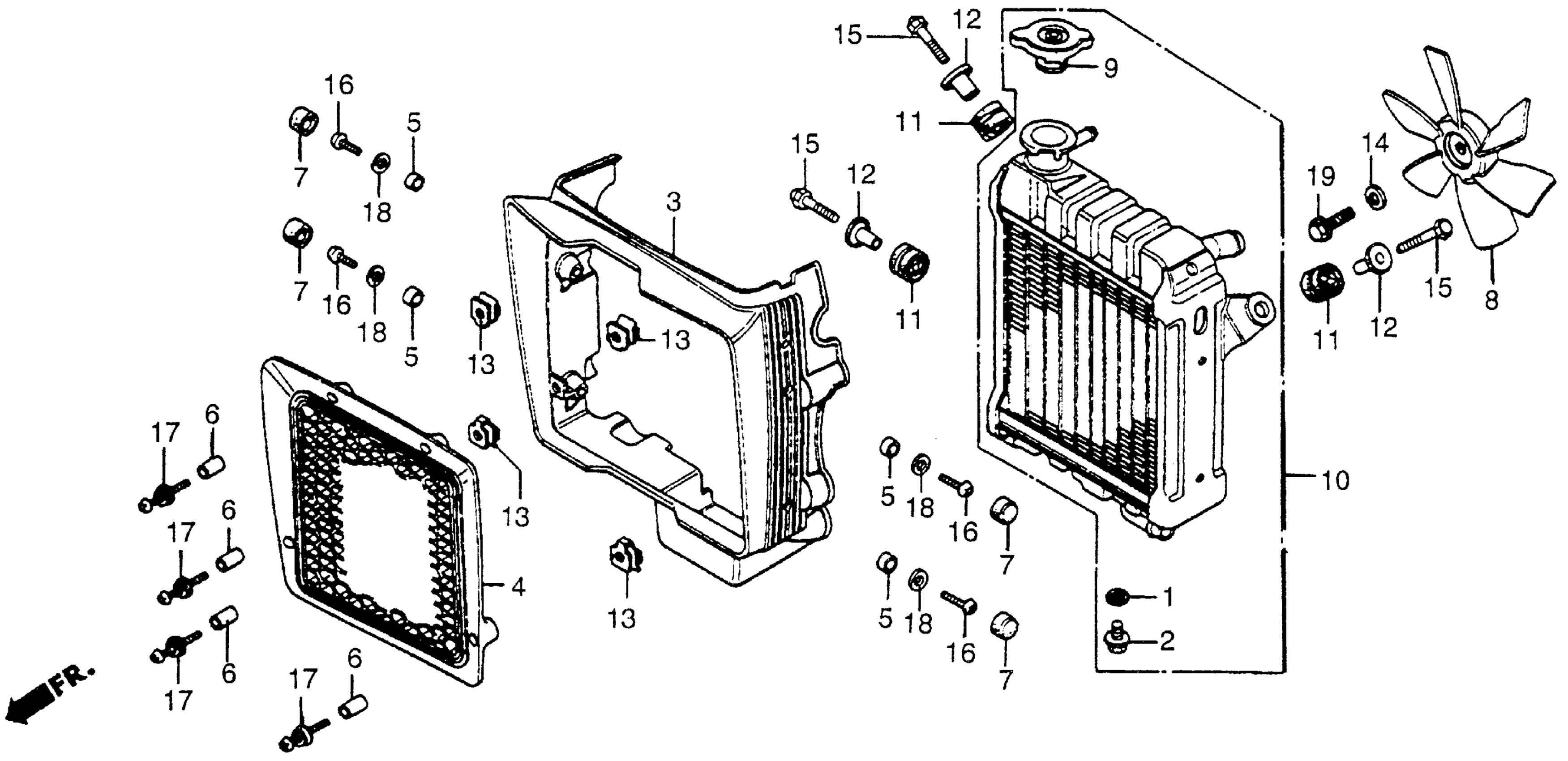

Honda CX500A (79) MOTORCYCLE, JPN, VIN# CX500-2100006 RADIATOR + COOLING FAN I Diagram

#

Description
Price

1

GASKET, DRAIN This part replaces 19012-PA0-003.

19012-ZB5-003

Unavailable

1

GASKET, DRAIN

19012-ZB5-003

Unavailable

1

GASKET, DRAIN This part replaces 19012-611-003.

19012-ZB5-003

Unavailable

2

VALVE, DRAIN

19013-415-004

Unavailable

3

COVER, RADIATOR (NOT AVAILABLE)

19031-415-000

Unavailable

4

GRILLE, RADIATOR

19032-415-000

Unavailable

5

COLLAR, RADIATOR COVER

19033-415-000

$2.92

6

COLLAR A, GRILLE (NOT AVAILABLE)

19034-415-000

Unavailable

7

GROMMET, RADIATOR COVER (NOT AVAILABLE)

19035-415-000

Unavailable

8

FAN, COOLING

19040-MA1-000

$54.25

8

FAN, COOLING This part replaces 19040-415-010.

19040-MA1-000

$54.25

8

FAN, COOLING This part replaces 19040-415-020.

19040-MA1-000

$54.25

9

CAP, RADIATOR (DENSO) This part replaces 19045-PA0-014.

19045-692-003

$37.56

9

CAP, RADIATOR (DENSO) This part replaces 19045-634-003.

19045-692-003

$37.56

9

CAP, RADIATOR (DENSO)

19045-692-003

$37.56

10

RADIATOR ASSY. This part replaces 19110-415-004.

19110-415-014

Unavailable

10

RADIATOR ASSY.

19110-415-014

Unavailable

11

RUBBER, RADIATOR SETTING (NOT AVAILABLE)

19115-415-000

Unavailable

12

COLLAR, RADIATOR MOUNTING (NOT AVAILABLE)

19119-415-000

Unavailable

13

NUT, GLOVE BOX (NOT AVAILABLE)

66871-671-000

Unavailable

14

WASHER, PLAIN (8.5X22X2.3)

90509-642-000

$6.84

15

BOLT, CAP (6X32)

92600-06032-0B

Unavailable

16

SCREW-WASHER (6X12)

93891-06012-07

$1.49

17

SCREW-WASHER (5X25)

93893-05025-07

$1.49

17

SCREW-WASHER (5X25) This part replaces 93893-05025-17.

93893-05025-07

$1.49

19

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

19

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
