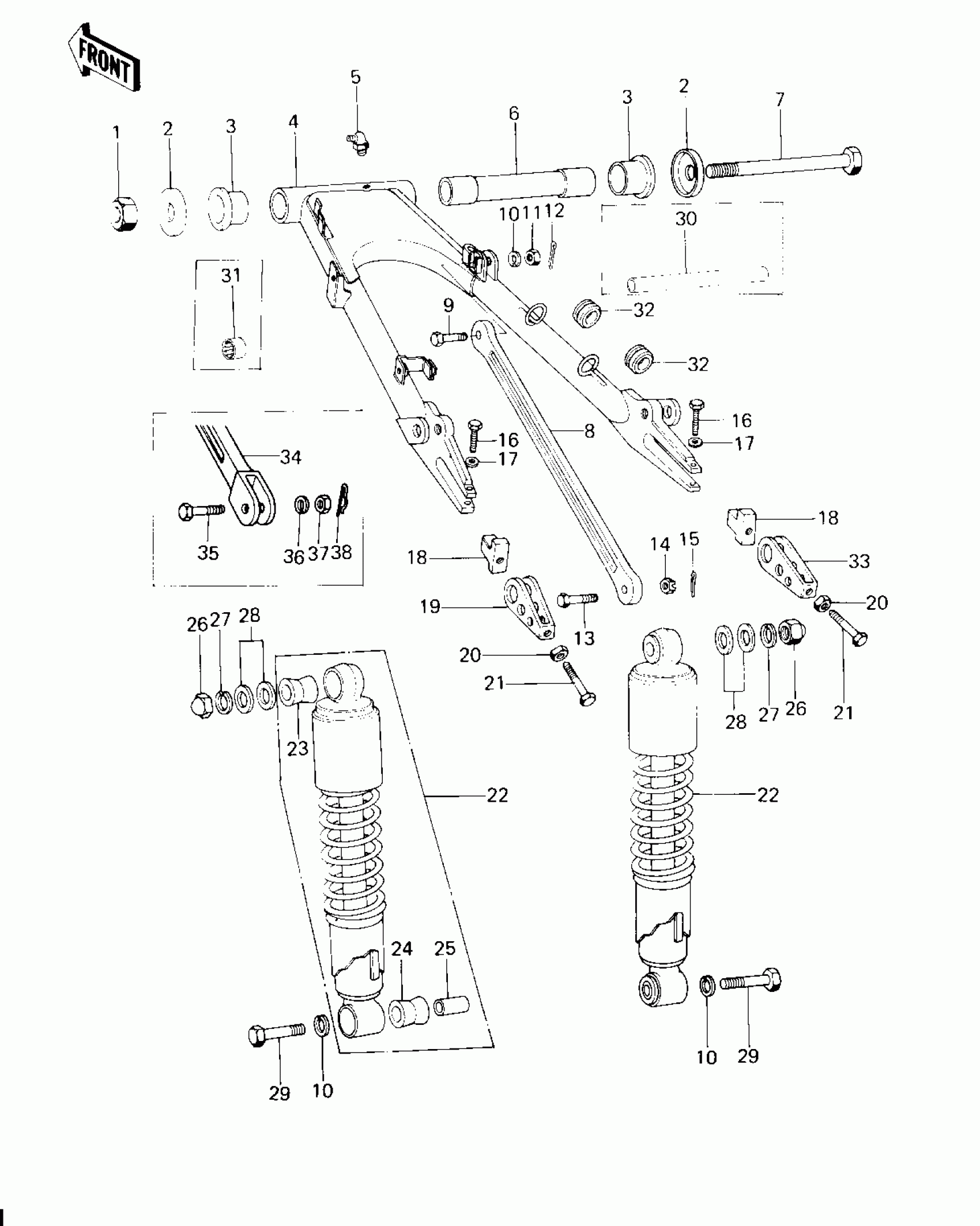

Kawasaki Custom SWING ARM/SHOCK ABSORBERS Diagram
#
1
NUT-SELF LOCKING
92019-012
$25.70
2
CAP,SWING ARM
33035-008
Unavailable
2
CAP,SWING ARM
33035-009
Unavailable
3
BUSHING-SWING ARM
33033-009
Unavailable
4
SWING ARM
33001-1007
$261.91
4
ARM-COMP-SWING
33001-1080
$232.72
5
GREASE NIPPLE
92005-002
Unavailable
6
SLEEVE,SWING ARM
33034-024
Unavailable
7
SHAFT,SWING ARM
33032-050
Unavailable
8
TORQUE LINK
43007-047
$28.85
9
BOLT,HEX HEAD,10X39
92003-218
Unavailable
10
WASHER SPRING 10MM
461F1000
$0.67
11
NUT-HEX-FINE,10MM
314B1000
$0.67
12
PIN-SNAP,8MM
554A0800
$1.26
13
BOLT,RR TORQUE LINK
92003-197
Unavailable
14
NUT,12MM
42045-021
Unavailable
15
PIN-COTTER,3.0X25
550D3025
$0.58
16
BOLT,FLANGED,8X35
92001-1577
Unavailable
17
WASHER SPRING 8MM
461F0800
$0.40
18
STOPPER,CHAIN ADJUST
33044-002
Unavailable
19
ADJUSTER,CHAIN
33040-056
Unavailable
20
NUT 8MM
312B0800
$0.58
21
BOLT,8X50
92001-1399
$9.48
22
SHOCK ABSBR RR
45014-117
$495.51
23
DAMPER,SHOCKABSORBER
45017-015
Unavailable
24
COLLAR,SHOCKABSORBER
45016-008
$9.91
25
DAMPER,SHOCKABSORBER
45017-012
$14.90
26
NUT,CAP,12MM
92020-014
$9.45
27
WASHER-SPRING,12MM
461F1200
$0.96
28
WASHER-PLAIN-SMALL,12MM
410B1200
$0.70
29
BOLT HEX HEAD 10X35
113N1035
$9.14
30
SLEEVE,SWING ARM
42036-1012
Unavailable
31
BEARING-NEEDLE,HK2216
92046-1115
$20.02
32
GROMMET,HOSE CLAMP
43064-007
$5.52
33
ADJUSTER,CHAIN
33040-1003
Unavailable
33
ADJUSTER,CHAIN
33040-056
Unavailable
34
TORQUE LINK,REAR HUB
43007-049
$52.17
35
BOLT,10X47
92001-1145
Unavailable
36
WASHER SPRING 10MM
461F1000
$0.67
37
NUT-HEX-FINE,10MM
314B1000
$0.67
38
PIN-SNAP,8MM
554A0800
$1.26
