Description

Price

1

PEDAL BRAKE

43001-1009

$200.73

2

NUT 6MM

311B0600

$0.93

3

UNAVAILABLE IN PRICE BOOK

110B6620

Unavailable

4

NUT,CAP AND LOCK,8MM

92019-013

$14.88

5

WASHER,8.5X20X1.6

92022-1561

$4.31

6

SPRING,BRAKE PEDAL

92081-1015

Unavailable

7

SHAFT,BRAKE PEDAL

43004-1002

Unavailable

8

PIN,BRAKE ROD

92043-1003

$4.19

9

COLLAR,BRAKE ROD

92027-1019

Unavailable

10

NUT-HEX-FINE,10MM

315B1000

$0.58

11

PEDAL BRAKE

43001-1009

$200.73

12

HOOK, BRAKE SWITCH

27012-1003

Unavailable

13

PIN COTTER 1.6X10

550D1610

Unavailable

14

STAND-SIDE

34024-1103

$74.82

15

BOLT,SIDE STAND

92003-079

$11.79

16

NUT-HEX-FINE,10MM

314B1000

$0.67

17

SPRING,STAND

34025-005

$7.58

18

STAND-MAIN

34011-1041

$89.04

19

SHAFT-STAND,CNT

34019-015

$17.42

20

UNAVAILABLE IN PRICE BOOK

580D3030

Unavailable

21

SPRING,STAND,CNT

34023-016

$16.50

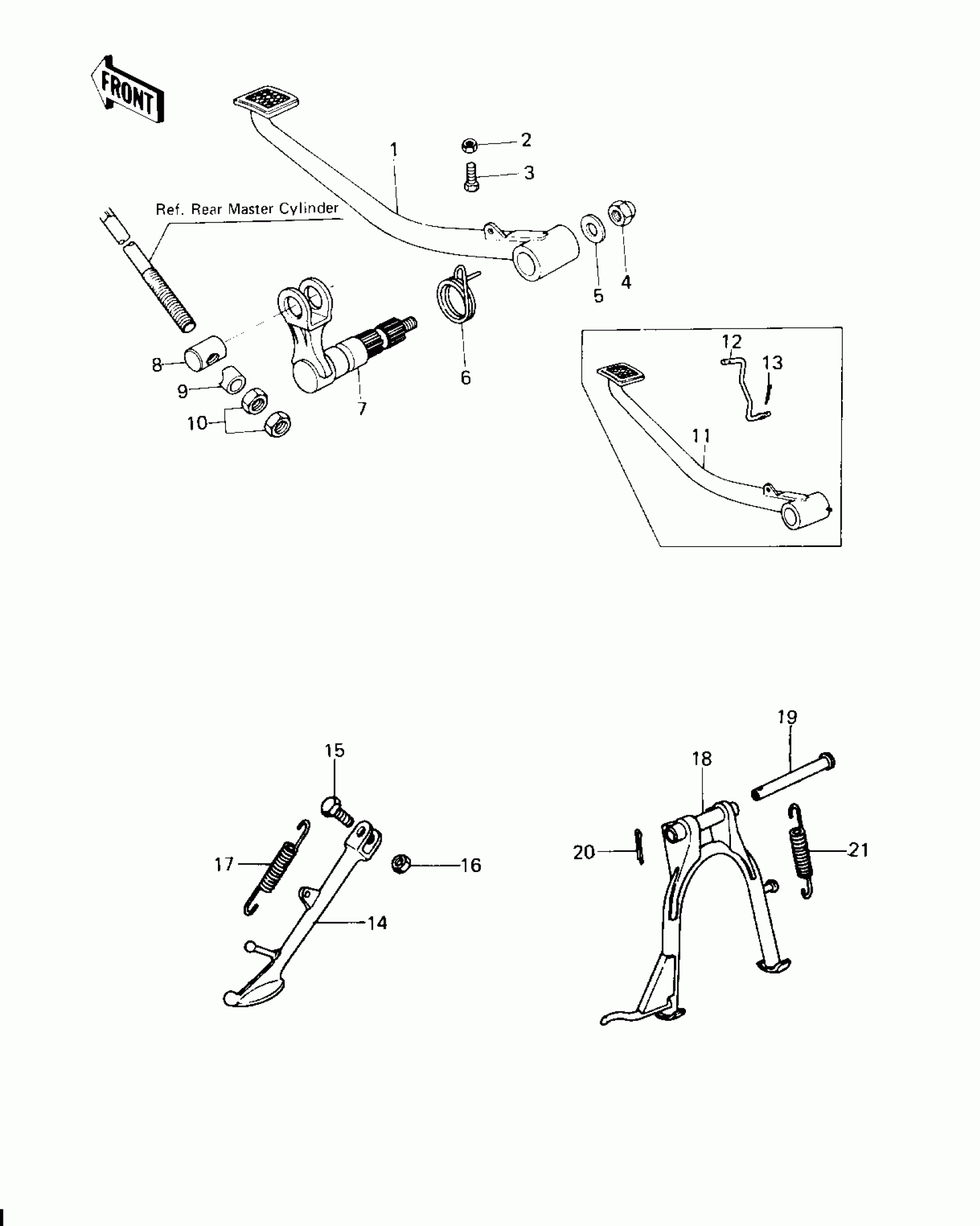

Kawasaki Custom STANDS/BRAKE PEDAL Diagram

PEDAL BRAKE

NUT 6MM

UNAVAILABLE IN PRICE BOOK

NUT,CAP AND LOCK,8MM

WASHER,8.5X20X1.6

SPRING,BRAKE PEDAL

SHAFT,BRAKE PEDAL

PIN,BRAKE ROD

COLLAR,BRAKE ROD

NUT-HEX-FINE,10MM

PEDAL BRAKE

HOOK, BRAKE SWITCH

PIN COTTER 1.6X10

STAND-SIDE

BOLT,SIDE STAND

NUT-HEX-FINE,10MM

SPRING,STAND

STAND-MAIN

SHAFT-STAND,CNT

UNAVAILABLE IN PRICE BOOK

SPRING,STAND,CNT
