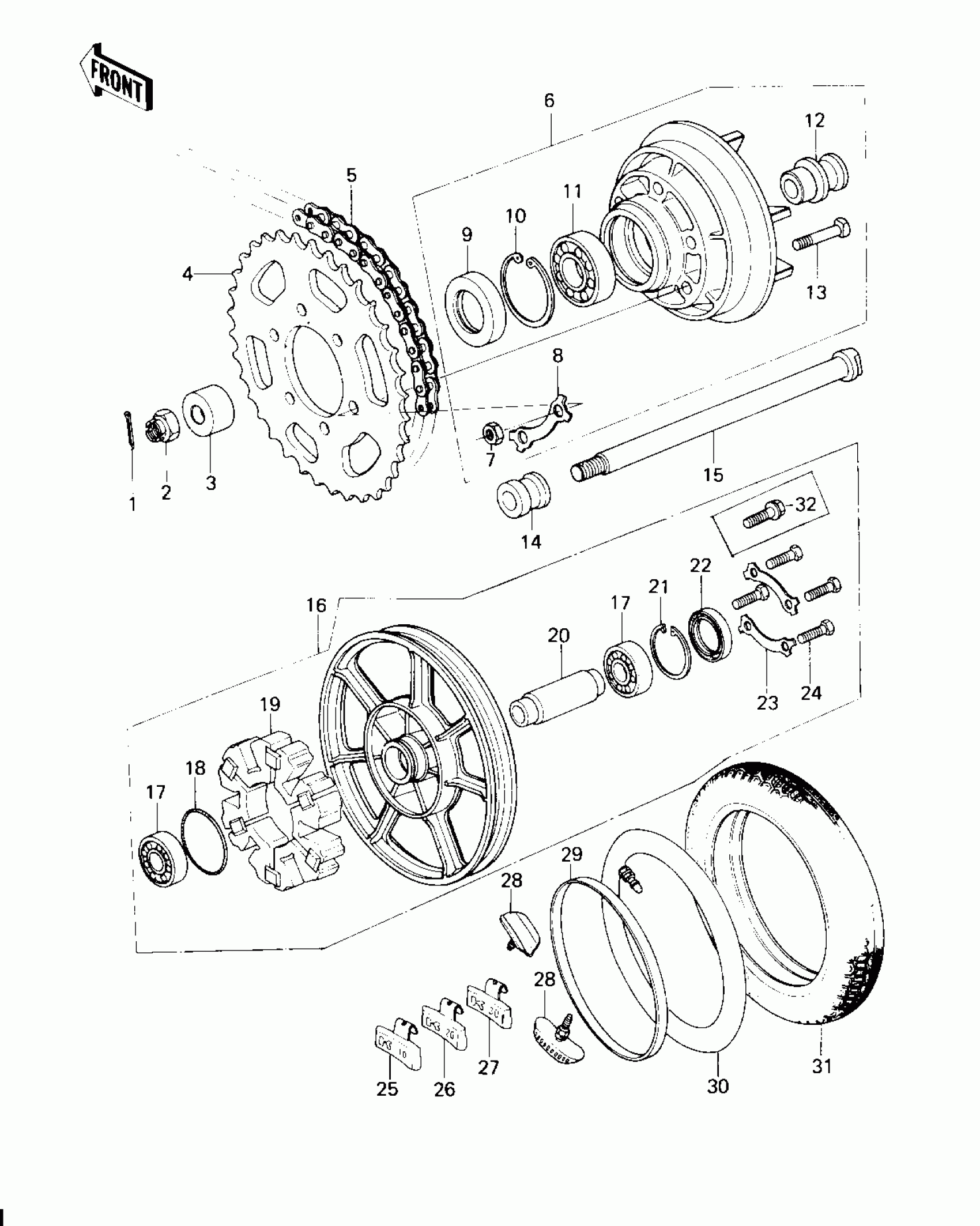

Kawasaki Custom REAR WHEEL/TIRE/HUB/CHAIN Diagram
#
1
PIN-COTTER,4.0X35
550D4035
$2.17
2
UNAVAILABLE IN PRICE BOOK
92015055
$11.50
3
COLLAR,REAR AXLE,22M
92027-1023
Unavailable
4
REAR SPROCKET,42T
42041-1003
$127.17
5
CHAIN,DRIVE,EK50MV-OX102L
92057-1232
Unavailable
6
COUPLING ASSY,REAR H
42033-1003
$120.80
7
UNAVAILABLE IN PRICE BOOK
42045005
$7.98
8
WASHER LOCK
92088-007
$13.51
9
SEAL-OIL,AJN40627
92050-027
$20.96
10
RING-SNAP,62MM
92033-1044
$11.29
11
BALL BEARING,#6206
601B6206
$22.50
12
SLEEVE,REAR HUB COUP
42036-1005
$39.97
13
BOLT-REAR SPROCKET
92003-087
Unavailable
14
COLLAR,REAR AXLE,33M
92027-1022
Unavailable
14
COLLAR 39M/M,RR AXLE
92027-1174
$22.19
15
AXLE,RR
41068-1086
$73.40
16
UNAVAILABLE IN PRICE BOOK
41073-1005
$428.68
16
SOLID WHEEL ASSY,REA
41073-1036
$397.09
16
SOLID WHEEL ASSY,REA
41073-1036
$397.09
16
SOLID WHEEL ASSY,REA
41073-1042
$378.24
17
BRG,BALL,#6205ZZC3
601B6205ZZ
$23.08
17
BEARING BALL #6205Z
601B6205Z
$21.69
18
O RING,65MM
671B2565
$8.86
19
DAMPER,RR HUB SHOCK,"1000"
42014-033
$111.86
20
COLLAR,REAR HUB BRG
92027-1021
$42.56
21
RING-SNAP,52MM
92033-1043
$8.05
22
SEAL-OIL,TWC35527
92052-006
Unavailable
23
WASHER,LOCK
92088-023
$11.60
24
BOLT
92001-160
Unavailable
25
WEIGHT,BALANCE,10GR
41075-1001
Unavailable
25
BALANCER-WHEEL,10G
41075-1011
Unavailable
26
WEIGHT,BALANCE,20GR
41075-1002
Unavailable
26
BALANCER-WHEEL,20G
41075-1012
Unavailable
27
WEIGHT,BALANCE,30GR
41075-1003
Unavailable
27
BALANCER-WHEEL,30G
41075-1013
Unavailable
28
STOPPER,RIM,2.15
41024-1001
$142.70
29
BAND,RIM,4.00/5.10-18
41023-1006
$13.87
30
TUBE 350/375/410-18
41022-031
$50.05
31
TIRE 400H-18 K87 R
41021-039
Unavailable
32
BOLT,FLANGED,10X30
92001-1173
$11.07
