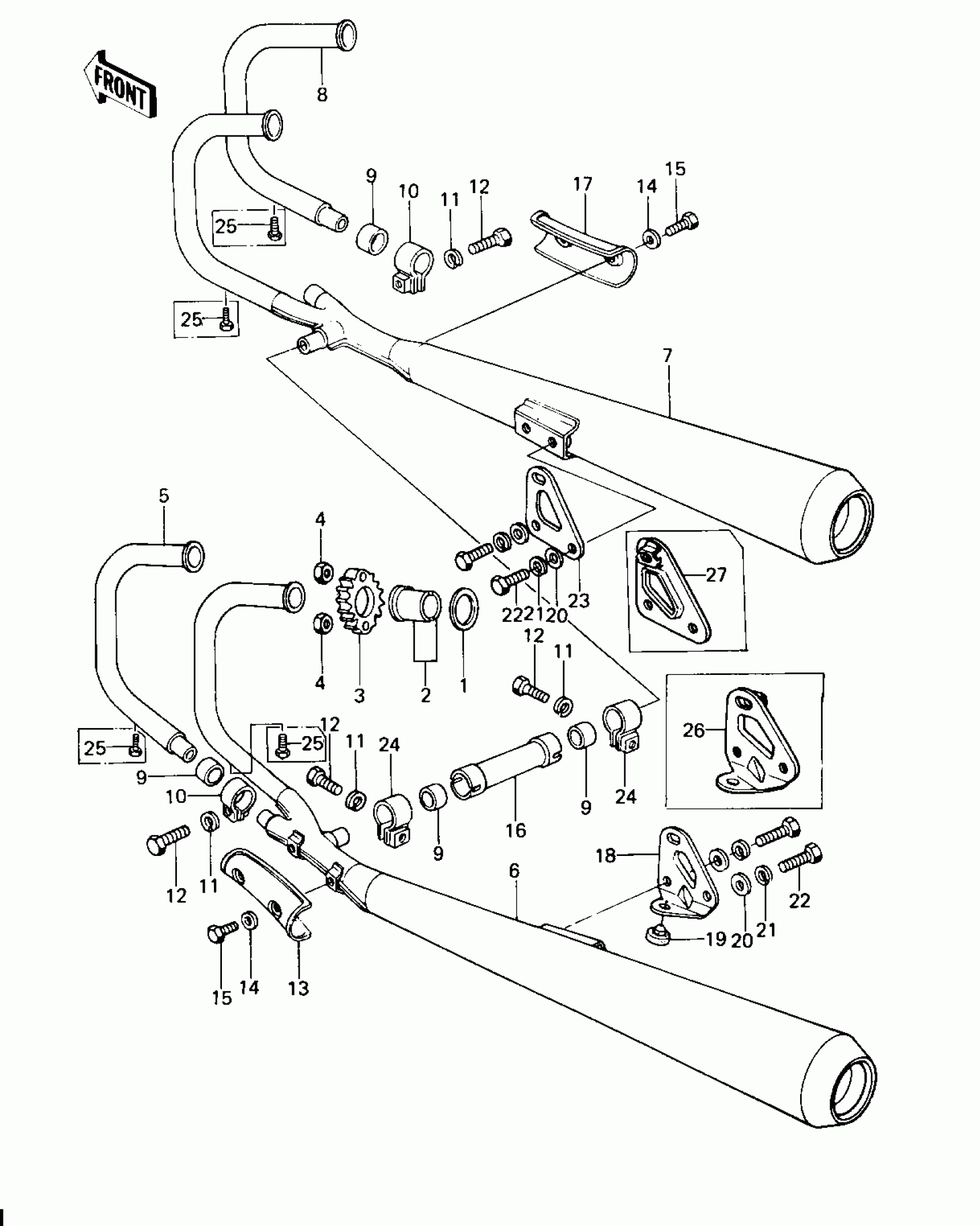

Kawasaki Custom MUFFLERS Diagram
#
Description
Price
1
GASKET,EXHAUST PIPE H
11009-1866
$8.25
2
COLLAR,EXHAUST PIPE
92027-264
$4.73
3
HOLDER,EXHAUST PIPE
18069-1006
$27.28
4
NUT,LOCK 6MM
92017-014
$7.51
5
PIPE-EXHAUST,#4
18049-1397
Unavailable
5
PIPE,EXHAUST,#1
18049-1013
Unavailable
6
MUFFLER ASSY,L.H
18001-1002
$573.71
6
MUFFLER ASSY,L.H
18001-1002
$573.71
6
MUFFLER ASSY,L.H
18001-1002
$573.71
7
MUFFLER ASSY,R.H
18001-1003
$597.10
7
MUFFLER ASSY,R.H
18001-1003
$597.10
7
MUFFLER ASSY,R.H
18001-1003
$597.10
8
PIPE-EXHAUST,#4
18049-1397
Unavailable
8
PIPE,EXHAUST,#1
18049-1013
Unavailable
9
GASKET,MUFFLER CONNEC
11060-1051
$23.41
9
GASKET,MUFFLER CONNEC
11060-1051
$23.41
10
CLAMP,MUFFLER
92037-1220
Unavailable
11
WASHER SPRING 8MM
461F0800
$0.40
12
BOLT-SMALL-UPSET 8X25
115G0825
$5.05
13
COVER,MUFFLER,L.H.
14025-1099
Unavailable
14
WASHER-PLAIN,6MM
411D0600
$2.06
15
SCREW,PAN HEAD,6X8
92011-039
Unavailable
16
PIPE,MUFFLER CONNECTING
32032-1669
Unavailable
17
COVER,MUFFLER,R.H.
14025-1100
Unavailable
17
COVER,MUFFLER,R.H.
14025-1100
Unavailable
18
BRACKET,MUFFLER,L.H.
32069-1040
Unavailable
19
DAMPER
92075-015
$5.00
20
WASHER PLAIN 6MM
411B0600
$2.84
21
WASHER SPRING 8MM
461F0800
$0.40
22
BOLT, HEX HEAD, 8X16
11080816
Unavailable
23
BRACKET,MUFFLER,R.H.
32069-1039
Unavailable
24
CLAMP,PIPE,35MM
92037-1223
Unavailable
25
BOLT (6X10)
110R0610
$3.44
26
BRACKET, MUFFLER, LH
32068-1040
Unavailable
27
BRACKET,MUFFLER,R.H.
32069-1039
Unavailable
