Description

Price

1

LAMP UNIT,HEAD

23003-017

$400.76

2

SCREW,FOCUS ADJUSTING

23019-021

$4.69

3

SCREW,SPECIAL,5X14

23019-022

$2.12

4

RIM,HEAD LAMP

23006-038

Unavailable

5

SPRING,FOCUS ADJUSTING

23014-005

$3.62

6

WASHER,4.1X8X0.8

23021-004

$2.91

7

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

8

NUT,5MM

23020-023

Unavailable

9

WASHER,PLAIN,5MM

23021-012

$5.43

10

SCREW,PAN HEAD,5X12

23019-023

$5.43

11

SCREW-PAN-CROS

220B0312

$1.58

12

RING,HEAD LAMP MOUNT

23072-001

$44.17

13

SEALD BEAM UNIT

23007-041

Unavailable

14

RING,HEAD LAMP MOUNT

23074-001

$64.65

15

SOCKET ASSY,HEAD LAMP

23008-037

Unavailable

16

BODY-COMP-HEAD LAMP

23005-1015-21

$231.11

16

BODY-COMP-HEAD LAMP

23005-1015-21

$231.11

17

DAMPER RUBBER

23066-016

Unavailable

18

COLLAR

23076-005

$49.11

19

PLUG REAR FENDER RUB

92074-006

$6.83

20

DAMPER RUBBER

23066-015

Unavailable

21

GROMMET

92071-1008

Unavailable

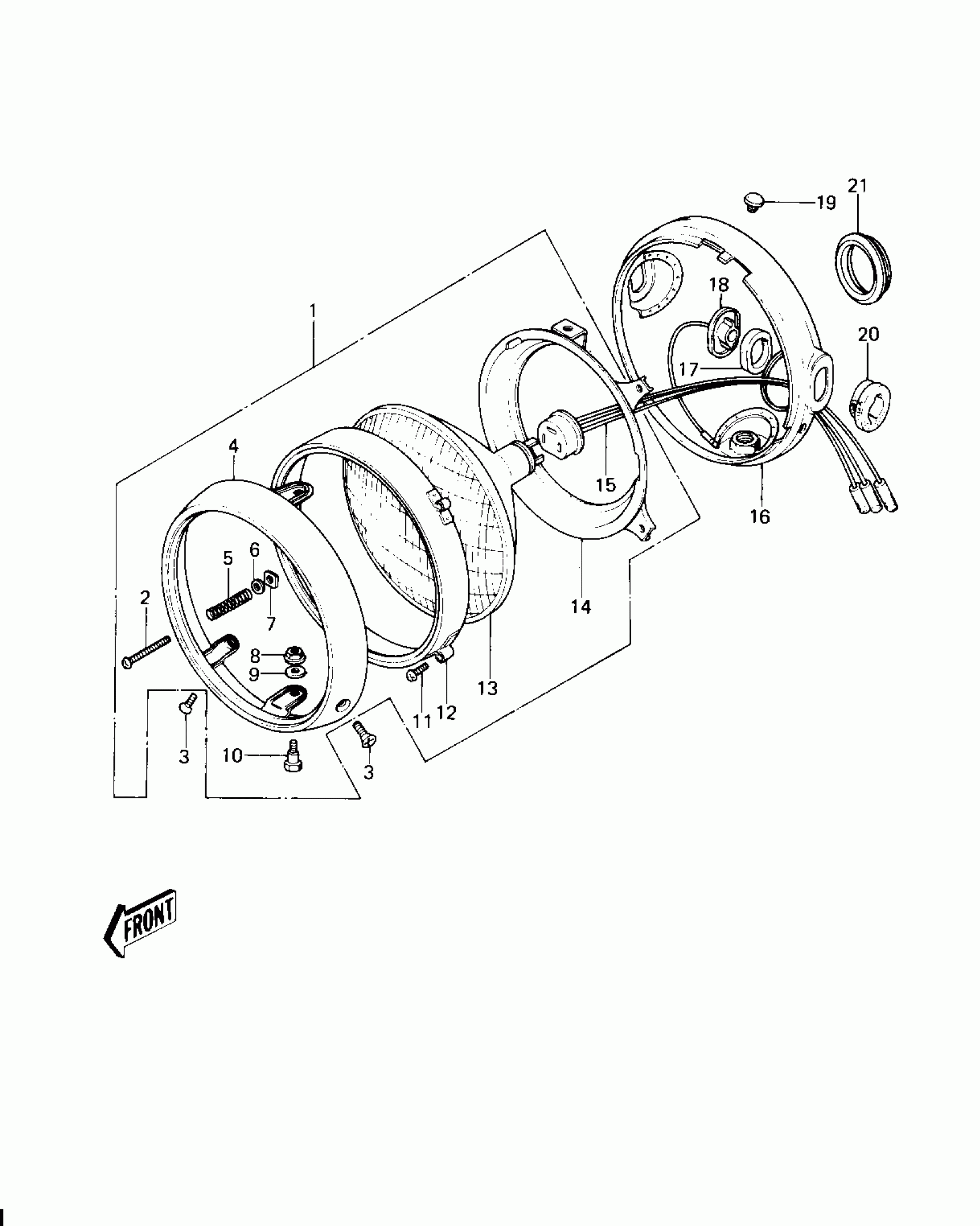

Kawasaki Custom HEADLIGHT Diagram

LAMP UNIT,HEAD

SCREW,FOCUS ADJUSTING

SCREW,SPECIAL,5X14

RIM,HEAD LAMP

SPRING,FOCUS ADJUSTING

WASHER,4.1X8X0.8

NUT,4MM,FOCUS ADJUST

NUT,5MM

WASHER,PLAIN,5MM

SCREW,PAN HEAD,5X12

SCREW-PAN-CROS

RING,HEAD LAMP MOUNT

SEALD BEAM UNIT

RING,HEAD LAMP MOUNT

SOCKET ASSY,HEAD LAMP

BODY-COMP-HEAD LAMP

BODY-COMP-HEAD LAMP

DAMPER RUBBER

COLLAR

PLUG REAR FENDER RUB

DAMPER RUBBER

GROMMET
