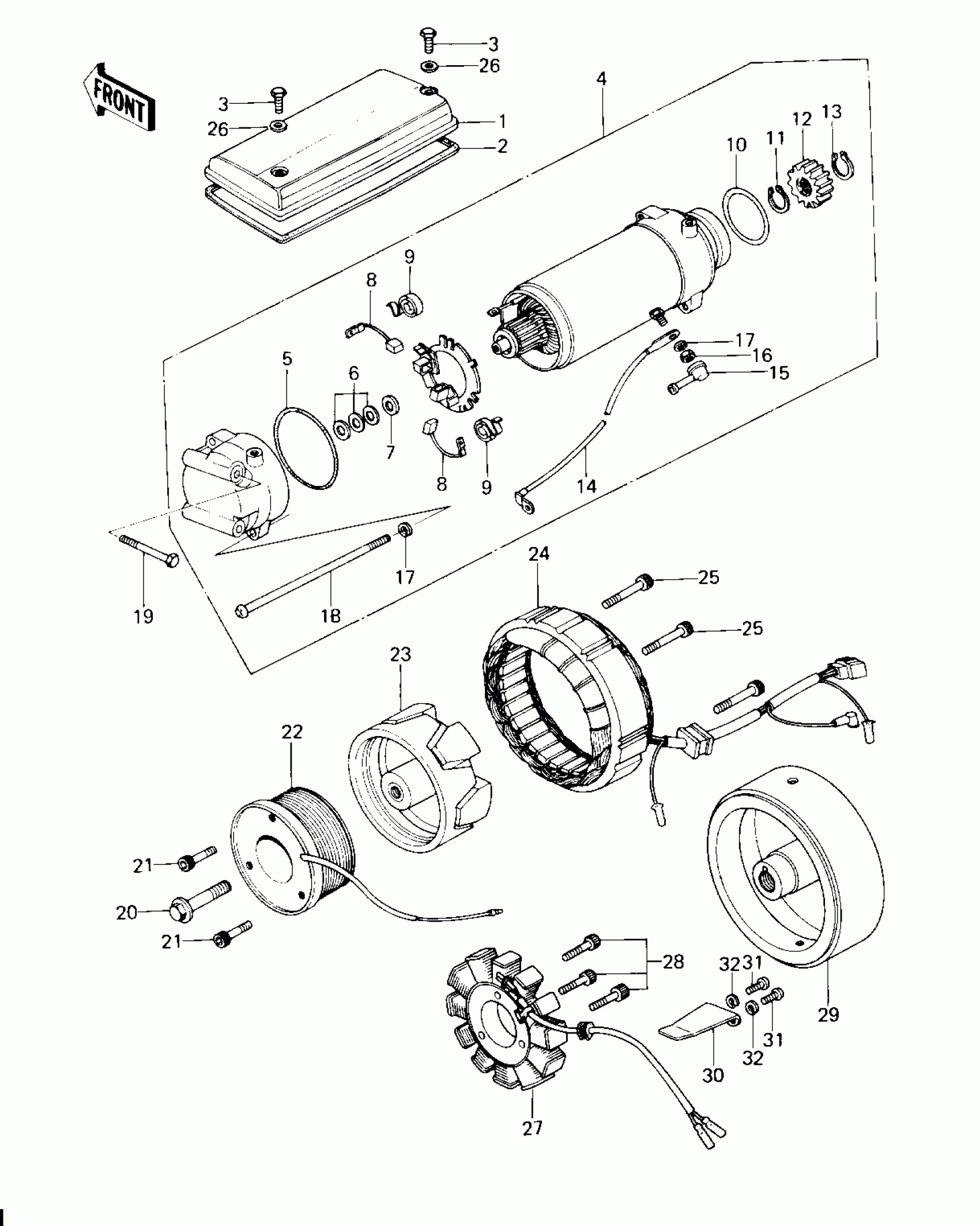

Kawasaki Custom GENERATOR/STARTER MOTOR Diagram
#
Description
Price
1
COVER,STARTER
21165-003
Unavailable
2
GASKET,STARTER COVER
21166-003
Unavailable
3
BOLT (6X10)
110R0610
$3.44
4
STARTER-ELECTRIC
21163-1022
$533.22
5
"0" RING,62MM
21027-006
Unavailable
6
WASHER,9.1X18X0.2
21025-011
Unavailable
7
WASHER,THRUST,T=1.6
21025-010
Unavailable
8
BRUSH,CARBON
21039-003
$40.76
9
SPRING-BRUSH
21040-003
Unavailable
10
RING-O,40MM
21027-008
$12.48
11
RING-SNAP,17MM
92033-034
$10.44
12
SPROCKET-ASSY,STARTER
21053-004
$93.28
13
RING-SNAP,13MM
92033-037
$9.80
14
WIRE-LEAD,STARTER
26011-1099
Unavailable
15
CAP,STARTING MOTOR
21017-020
$8.42
16
NUT 6MM
312B0600
$0.72
17
WASHER SPRING 6MM
461F0600
$0.69
18
SCREW,PAN HEAD,6X130
21099-006
Unavailable
19
BOLT-UPSET
112G0660
Unavailable
20
BOLT,10X40
92001-1201
$10.65
21
BOLT-SOCKET,6X18
120P0618
$2.87
22
COIL,FIELD
21077-005
$366.40
23
ROTOR
21007-033
$518.23
24
YOKE ASSY
21076-024
$630.48
25
UNAVAILABLE IN PRICE BOOK
12000632
Unavailable
26
WASHER,PLAIN,6MM
410D0600
$0.77
27
STATOR
21003-1005
$531.86
28
BOLT-SOCKET,5X30
120P0530
$5.14
29
FLYWHEEL
21050-1003
$532.30
30
CLAMP,GENERATOR LEAD
92037-1122
$4.80
31
SCREW-PAN-CROS
220B0512
$0.47
32
WASHER SPRING 5MM
461F0500
$0.69
