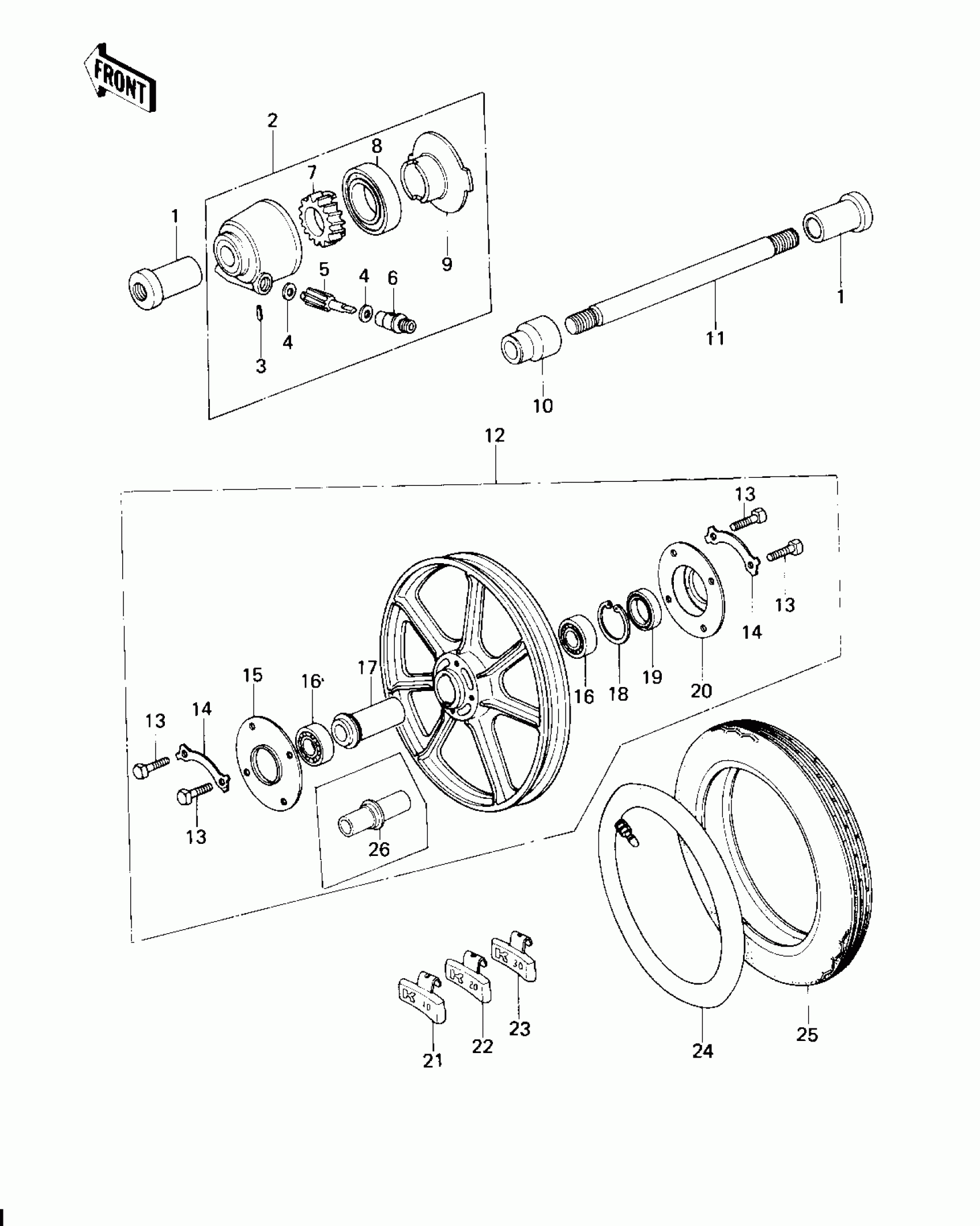

Kawasaki Custom FRONT WHEEL/TIRE/HUB Diagram

#

Description
Price

1

COLLAR,FRONT AXLE

41069-033

Unavailable

2

GEAR BOX ASSY

41078-008

Unavailable

3

PIN,SPRING

41082-001

$3.92

4

WASHER,5.1X9X0.4

41063-001

$4.69

5

PINION,SPEEDOMETER

41060-017

Unavailable

6

BUSHING,SPEEDOMETER CABLE

41062-005

$19.48

7

GEAR-METER SCREW,26T

41059-026

$42.53

8

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

9

RECEIVER,GEAR

41064-013

Unavailable

10

COLLAR,FRONT AXLE

41069-032

$26.55

11

AXLE,FRONT

41068-049

$132.80

12

SOLID WHEEL ASSY,FRN

41073-5104

$413.95

12

SOLID WHEEL ASSY,FRT

41073-1068

$822.39

12

SOLID WHEEL ASSY,FRT

41073-1068

$822.39

13

BOLT

92001-158

$3.41

14

WASHER,LOCK

92088-023

$11.60

15

DUST COVER

41042-014

Unavailable

16

BEARING-BALL,#6203ZZC3

601B6203ZZ

Unavailable

16

BEARING-BALL,#6203ZC3

601B6203Z

$27.81

17

COLLAR,FR HUB BEARIN

92027-1043

Unavailable

18

RING-SNAP,40MM

92033-1040

$5.90

19

OIL SEAL

654A254008

$25.75

20

DUST COVER

41042-015

Unavailable

21

WEIGHT,BALANCE,10GR

41075-1001

Unavailable

21

BALANCER-WHEEL,10G

41075-1011

Unavailable

22

WEIGHT,BALANCE,20GR

41075-1002

Unavailable

22

BALANCER-WHEEL,20G

41075-1012

Unavailable

23

WEIGHT,BALANCE,30GR

41075-1003

Unavailable

23

BALANCER-WHEEL,30G

41075-1013

Unavailable

24

*** N.L.A.*** (Canada)

41022-030

Unavailable

25

TIRE 325H-19 F6B F

41021-038

Unavailable

26

COLLAR,BRG

41039-028

Unavailable
