Description

Price

1

BOLT,FLANGED,6X45

92001-165

$5.24

2

COVER,CYLINDER HEAD

11022-009-2H

Unavailable

3

GASKET,CYL HEAD COVE

11009-1025

Unavailable

4

BOLT,HEX HEAD,6X65

92001-1102

Unavailable

5

BOLT,FLANGED,6X22

92001-1352

$4.31

6

CAP ASSY,L.H,REED VLV

14075-5002

$27.93

7

CAP ASSY,R.H,REED VLV

14075-5001

$26.78

8

VALVE-ASSY-REED

12021-1003

$75.73

9

COVER,CYLINDER HEAD

14025-1058

Unavailable

10

GASKET,CYL HEAD COVER

11009-1065

Unavailable

11

BOLT,FLANGED,6X45

92001-165

$5.24

12

GEAR,TACHOMETER,10T

13223-011

Unavailable

13

RING-O,10MM

92055-1149

$6.57

14

GUIDE,TACHOMETER GEAR

92087-010

$24.19

15

SEAL-OIL

92050-075

$11.39

16

GASKET,TACHOMETER GEAR

92065-103

$4.07

17

HOLDER SET,TACHOMETER

13091-5001

Unavailable

18

HOLDER,TACHOMETR,3.2T

13091-1009

$4.26

19

HOLDER,TACHOMETER2.3T

13091-1008

$4.26

20

BOLT-SOCKET,6X14

120P0614

$3.82

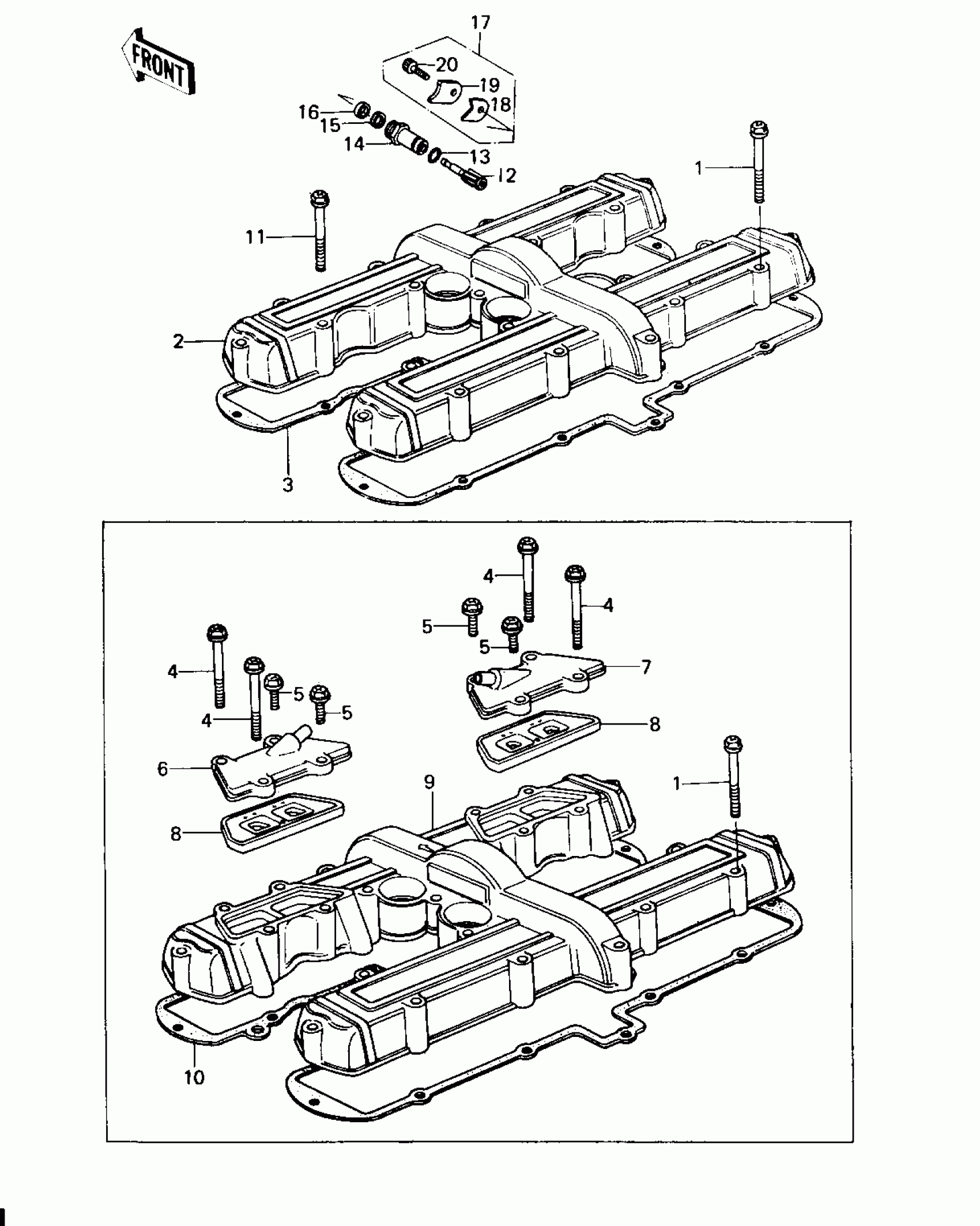

Kawasaki Custom CYLINDER HEAD COVER Diagram

BOLT,FLANGED,6X45

COVER,CYLINDER HEAD

GASKET,CYL HEAD COVE

BOLT,HEX HEAD,6X65

BOLT,FLANGED,6X22

CAP ASSY,L.H,REED VLV

CAP ASSY,R.H,REED VLV

VALVE-ASSY-REED

COVER,CYLINDER HEAD

GASKET,CYL HEAD COVER

BOLT,FLANGED,6X45

GEAR,TACHOMETER,10T

RING-O,10MM

GUIDE,TACHOMETER GEAR

SEAL-OIL

GASKET,TACHOMETER GEAR

HOLDER SET,TACHOMETER

HOLDER,TACHOMETR,3.2T

HOLDER,TACHOMETER2.3T

BOLT-SOCKET,6X14
