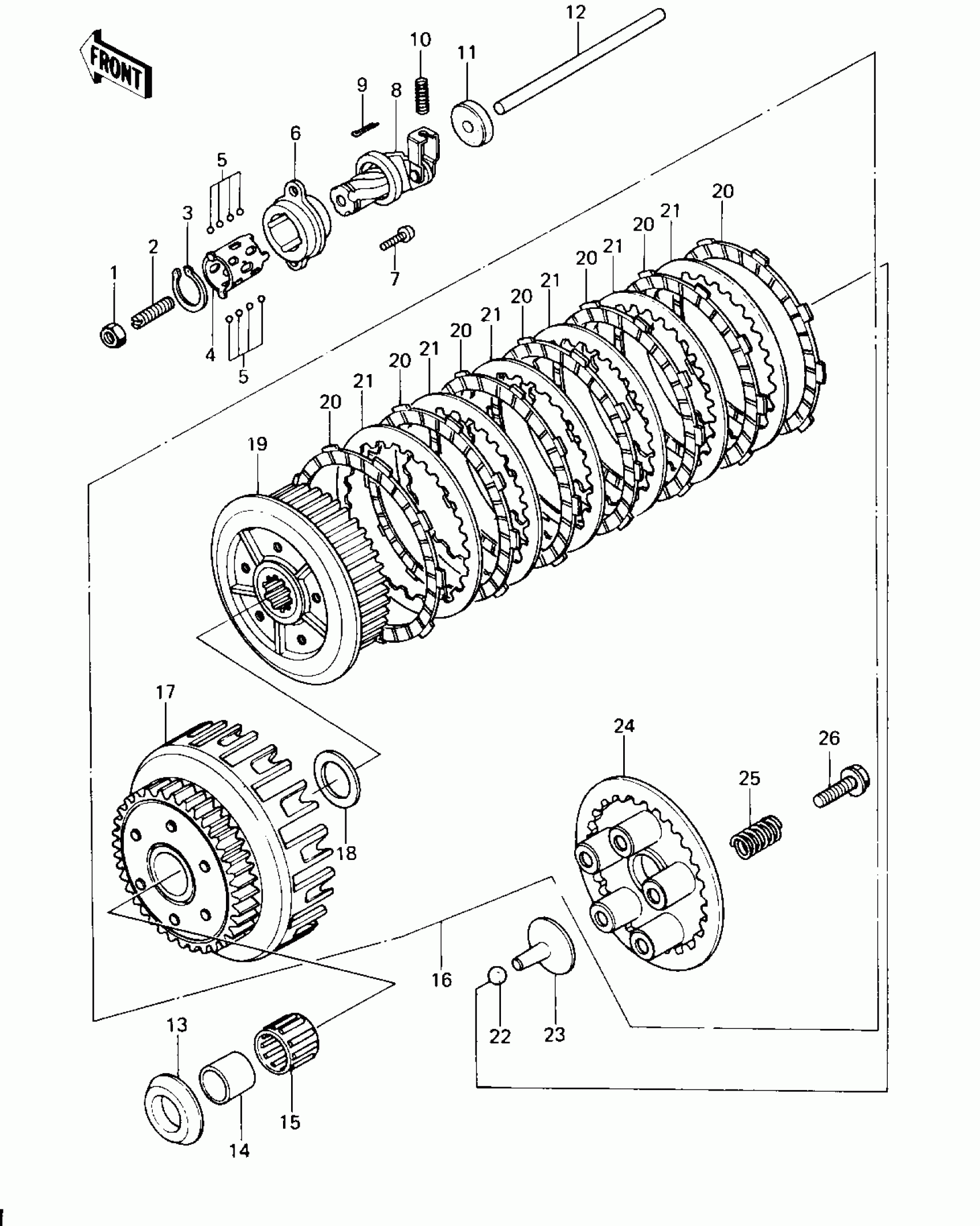

Kawasaki Custom CLUTCH Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

31880800

Unavailable

2

SCREW,SLOTTED,8X25

92014-014

Unavailable

3

CIRCLIP-TYPE-C,15MM

480J1500

$2.31

4

RETAINER

13197-004

Unavailable

5

BALL,STEEL,1/8"

600A0400

$1.40

6

OUTER,CLUTCH RELEASE

13118-011

Unavailable

7

SCREW-PAN-CROS,6X16

220B0616

$2.84

8

INNER,CLUTCH RELEASE

13102-027

Unavailable

9

PIN-COTTER,1.6X15

550D1615

$2.51

10

SPRING,CLUTCH RELEASE

92081-069

$7.51

11

OIL SEAL,TC7187

92050-048

$25.59

12

ROD,CLUTCH PUSH

13116-035

Unavailable

13

SPACER,THRUST,T=5.5

92026-116

$17.60

14

BUSHING,25X32X23.6

92028-178

$25.03

15

BEARING-NEEDLE,KTV323723

92046-028

$21.24

16

CLUTCH-ASSY

13081-1043

Unavailable

16

CLUTCH-ASSY

13081-1043

Unavailable

17

HOUSING,CLUTCH

13095-1022

Unavailable

17

HOUSING,CLUTCH

13095-1022

Unavailable

18

SPACER,25.5X47X2.5

92026-022

$9.91

19

HUB-CLUTCH

13087-043

$154.96

20

PLATE,CLUTCH FRICTION

13088-030

$26.17

21

PLATE,CLUTCH STEEL

13089-022

Unavailable

22

BALL-STEEL,3/8"

600A1200

$1.56

23

PUSHER,CLUTCH SPRG P

13116-022

Unavailable

24

PLATE,CLUTCH SPRING

13187-006

Unavailable

25

SPRING,CLUTCH

92081-1033

$7.38

25

SPRING,CLUTCH

92081-1033

$7.38

26

BOLT,FLANGED,6X18

92001-1066

$6.22
