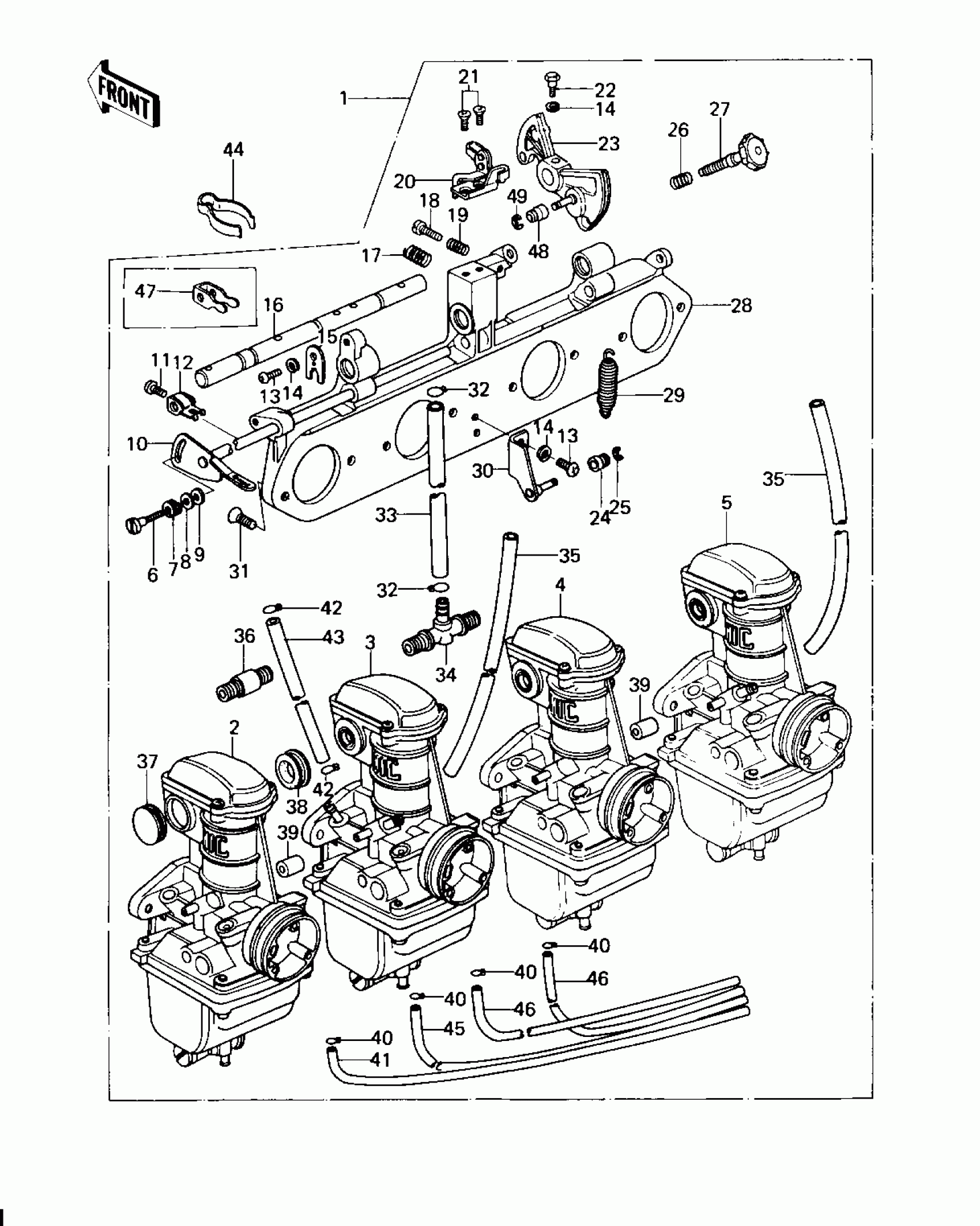

Kawasaki Custom CARBURETOR ASSY Diagram
#
2
CARBURETOR,L.H,OUT
16001-1029
$365.56
3
CARBURETOR,L.H,INSID
16001-1030
$299.49
4
CARBURETOR,R.H,INSID
16001-1031
$299.49
5
CARBURETOR,R.H,OUT
16001-1032
$285.94
6
SCREW
16046-005
Unavailable
7
SPRING,F
16040-009
Unavailable
8
WASHER PLAIN 5MM
410B0500
$0.46
9
WASHER,PLAIN,NYLON
16039-019
Unavailable
10
SHAFT,STARTER PLUNGE
16041-021
$54.54
11
SCREW,PAN HEAD,5X7
16046-007
Unavailable
12
LEVER,STARTER PLUNGE
13168-1026
Unavailable
13
SCREW-PAN-CROS
220B0514
$4.04
14
WASHER SPRING 5MM
461F0500
$0.69
15
PLATE,SHAFT STOPPER
16055-012
Unavailable
16
SHAFT,CARB CONNECTIO
16041-017
Unavailable
17
SPRING,CABLE PULLY
16040-022
Unavailable
18
SCREW
16021-032
$6.77
19
SPRING,THROTTLE ADJST
16022-010
Unavailable
20
BRACKET,THROTTLE CAB
16077-017
$59.26
21
SCREW CNTSNK HD 5X10
221B0510A
$3.67
22
BOLT,HEX HEAD,5X14
16067-006
Unavailable
23
PULLEY,THROTTLE CABLE
16068-015
$66.67
24
RING
16073-016
Unavailable
25
CIRCLIP 3MM
482K3000
$1.78
26
SPRING,THROTTLE STOP
16022-017
Unavailable
27
SCREW,THROTTLE STOP
16021-1010
$32.19
28
HOLDER,CARBURETOR
16065-049
$114.50
29
SPRING,THROTTLE PULL
92081-1028
Unavailable
30
BRACKET,THROTTLE CABL
16077-016
$15.67
31
SCREW,6X14
16033-029
Unavailable
32
CLAMP,CARB CONECT HOS
92037-056
$6.60
33
TUBE,5.8X10.8X180
92059-1443
$35.06
33
HOSE,FEL,6.5X11.5X16
92059-1044
$32.85
34
FITTING
92005-1010
$28.80
35
HOSE,AIR VENT,5X8X250
92059-1045
Unavailable
35
HOSE,AIR VENT,5X8X250
92059-1045
Unavailable
36
FITTING
92005-1009
Unavailable
37
CAP,RUBBER
16039-042
Unavailable
38
GROMMET,CARBURETOR
92071-104
Unavailable
39
HOSE,6X11.5X16
92059-141
$17.97
40
CLAMP,OVERFLOW HOSE
92037-173
Unavailable
41
HOSE,FUEL OVERFLOW
92059-147
Unavailable
44
CLAMP,BRAKE HOSE
92037-1061
Unavailable
45
HOSE,FUEL OVERFLOW
92059-147
Unavailable
46
HOSE,FUEL OVERFLOW
92059-134
Unavailable
48
RING
16073-016
Unavailable
49
CIRCLIP 3MM
482K3000
$1.78
