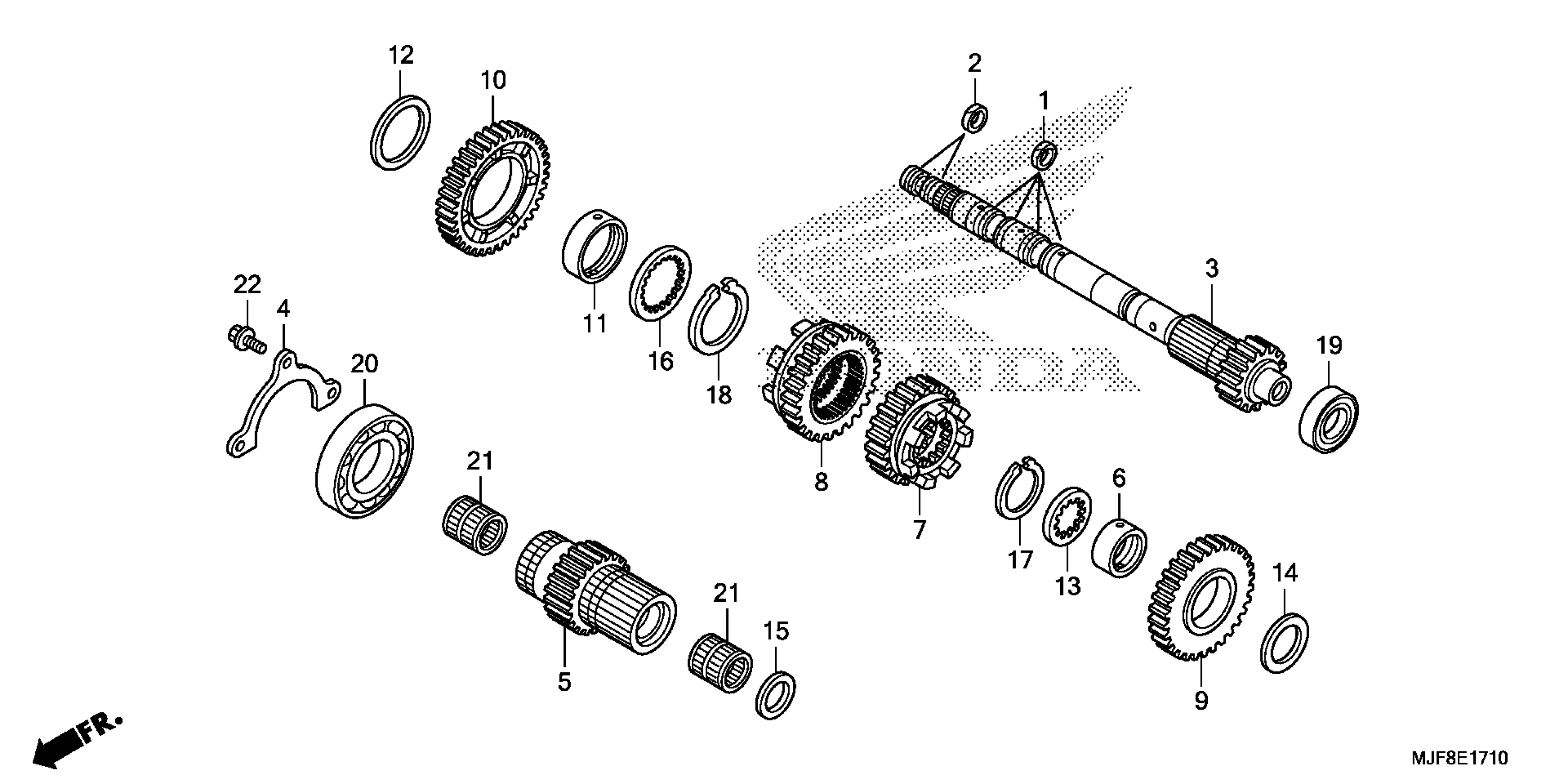

Honda CTX700NDAC (18) MOTORCYCLE, JPN, VIN# JH2RC685-JK300001 TRANSMISSION (CTX700ND) (MAINSHAFT) Diagram

RING, SEALING (26MM)

22814-PFL-003

$6.77

SEAL, RING (21.2MM)

22814-RGC-003

$12.00

MAINSHAFT (INNER) (15T)

23210-MGS-D20

$337.62

PLATE, MAINSHAFT BEARING SETTING

23212-MGS-D30

$2.96

MAINSHAFT (OUTER) (21T)

23231-MGS-D20

$273.01

COLLAR (30X11.2)

23442-MS2-610

$21.93

GEAR, MAINSHAFT THIRD (22T)

23451-MGS-D20

$101.10

GEAR, MAINSHAFT FOURTH (25T)

23471-MGS-D20

$94.69

GEAR, MAINSHAFT FIFTH (30T)

23491-MGS-D20

$88.25

GEAR, MAINSHAFT SIXTH (37T)

23511-MGS-D20

$88.25

COLLAR (40X43X10)

23512-MGS-D20

$11.66

WASHER (40.2X51X1)

90411-MGE-D00

$10.90

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.04

WASHER, THRUST (30.5MM)

90458-MAT-E00

$1.69

WASHER (26X34X2)

90463-MGS-D20

$4.59

WASHER, SPLINE (40MM)

90493-MGE-D00

$7.46

CIRCLIP (30MM)

90604-MM5-000

$4.28

CIRCLIP (40MM)

90605-MGE-D00

$6.41

BEARING, RADIAL BALL (6204U)

91006-MGS-D31

$16.01

BEARING, RADIAL BALL (6008)

91023-MGS-D21

$22.12

BEARING, NEEDLE (26X31X24) (NTN)

91102-KR0-003

$27.87

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93
