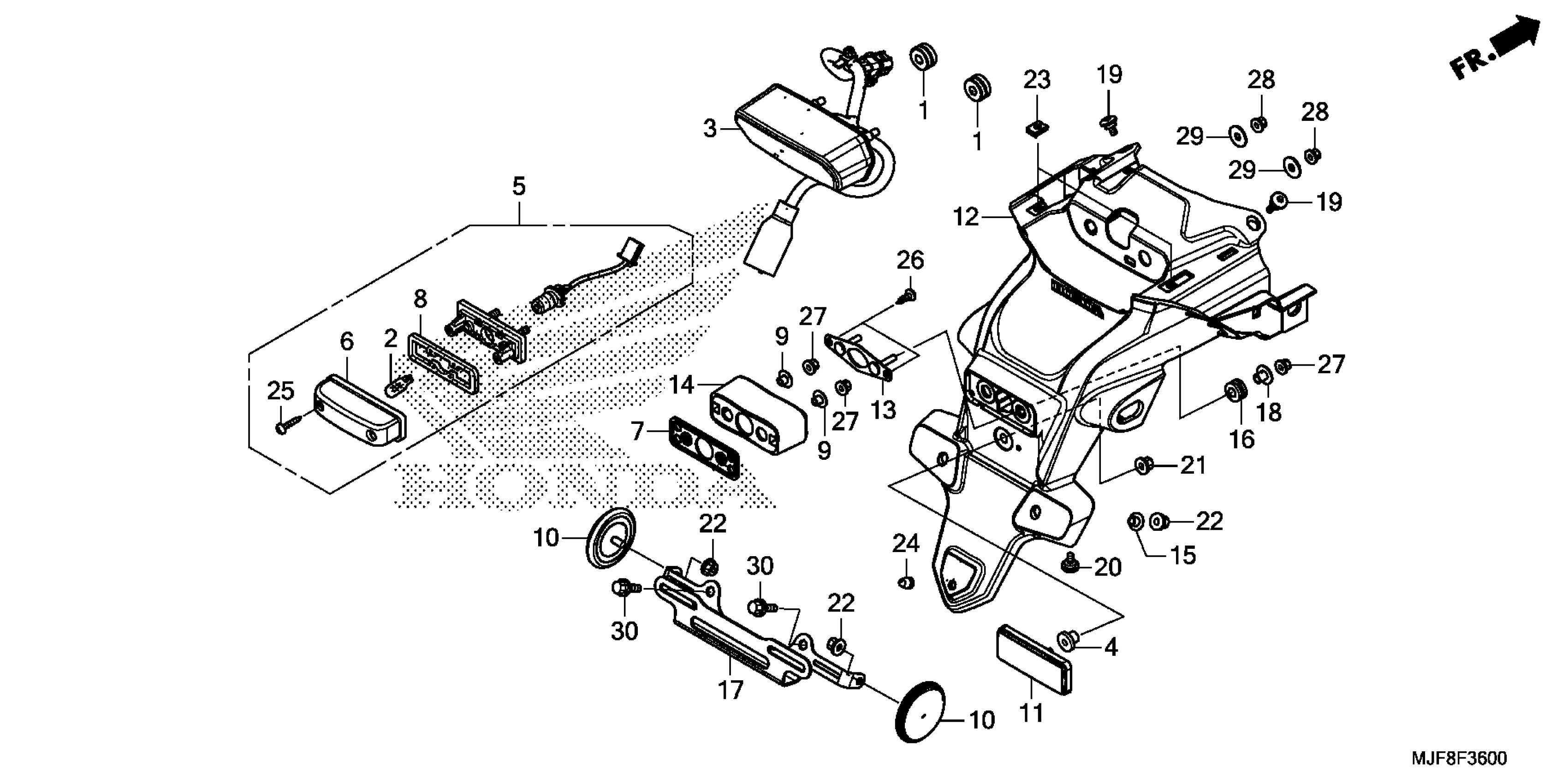

Honda CTX700NDAC (18) MOTORCYCLE, JPN, VIN# JH2RC685-JK300001 TAILLIGHT Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

2

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

3

TAILLIGHT UNIT (COO)

33701-MJF-305

$173.38

3

TAILLIGHT UNIT (COO) This part replaces 33701-MJF-A01.

33701-MJF-305

$173.38

4

COLLAR, TAILLIGHT SETTING

33715-MC4-610

$4.59

5

LIGHT ASSY., LICENSE (12V 5W)

33720-MFL-641

$97.59

6

COVER, LICENSE

33721-GET-671

$19.11

7

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.97

8

GASKET, LENS

33729-MCZ-003

$9.48

9

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.39

10

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

11

REFLECTOR, REFLEX

33741-MCJ-G01

$23.89

12

FENDER SET A, RR. (TYPE1) (WL)

80050-MJF-A00ZA

$97.39

13

STAY, LICENSE LIGHT BRACKET

80118-MGE-670

$7.74

14

BRACKET, LICENSE LIGHT

80201-MGE-670

$8.20

15

COLLAR, LOCK SETTING

83119-MG9-000

$5.90

16

RUBBER, SHROUD

83545-MFC-640

$1.82

17

BRACKET, NUMBER PLATE

84700-MGE-672

$17.31

18

COLLAR, SIDE MOUNTING

90001-961-670

$5.62

19

SCREW, PAN (6X13)

90112-GCM-900

$1.92

20

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.59

21

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66

22

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

23

NUT, CLIP (5MM)

90677-KAN-961

$4.07

24

PLUG, CONE TYPE

90899-422-610

$1.89

25

SCREW, TAPPING (4X16)

93901-24480

$1.49

26

SCREW, TAPPING (4X12)

93903-24380

$1.49

27

NUT, FLANGE (5MM)

94050-05000

$1.49

28

NUT, FLANGE (6MM)

94050-06080

$1.49

29

WASHER, PLAIN (6MM)

94103-06800

$1.49

30

BOLT, FLANGE (6X16)

95701-06016-07

$1.55
