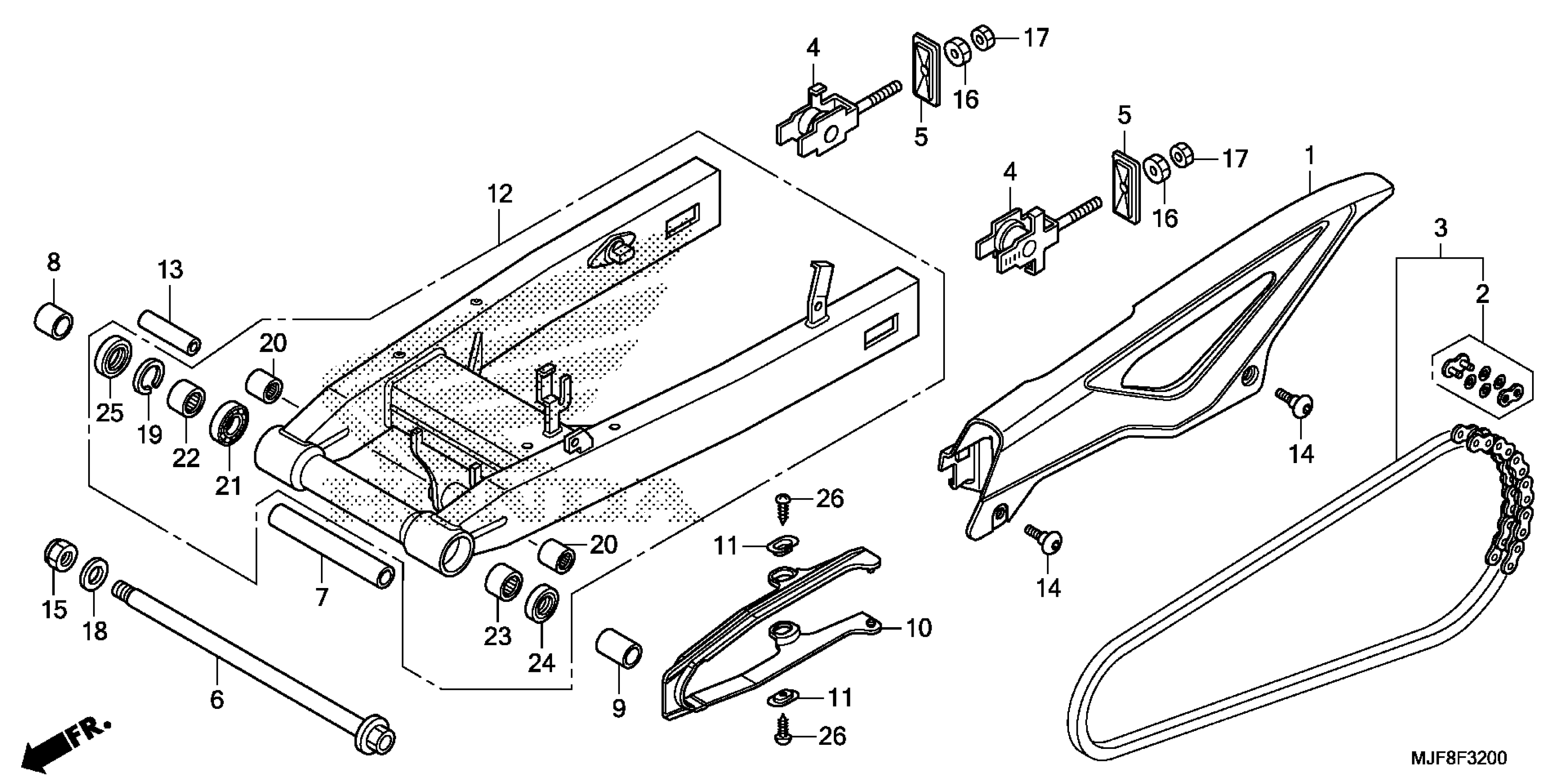

Honda CTX700NDAC (18) MOTORCYCLE, JPN, VIN# JH2RC685-JK300001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-MGS-D30

$104.42

2

MASTER LINK (RK EXCEL)

40531-MJF-A02

$12.04

2

MASTER LINK (DAIDO)

40545-MGS-D31

$12.23

3

CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)

40540-MGS-D31

$210.54

3

CHAIN, DRIVE (RK520KHO-120LJFZ) (RK EXCEL) (STANDARD LINK 112L) (STANDARD LINK 114L)

40540-MJF-A02

$207.39

4

ADJUSTER, CHAIN

40543-MGS-D30

$28.16

5

CAP, SWINGARM END

40546-MGS-D30

$17.70

6

BOLT, SWINGARM PIVOT

52101-MGS-D30

$35.97

7

COLLAR, PIVOT DISTANCE CENTER

52141-MGS-D10

$31.35

8

COLLAR, R. PIVOT DISTANCE

52142-MGS-D10

$16.97

9

COLLAR, L. PIVOT DISTANCE

52143-MGS-D10

$18.32

10

SLIDER, CHAIN

52170-MGS-D30

$38.28

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.35

12

SWINGARM SUB-ASSY., RR.

52200-MGS-D71

$1,055.23

13

COLLAR B, CUSHION ARM

52463-MGS-D10

$11.64

14

SCREW, PAN (6X14)

90106-KBV-000

$3.64

15

NUT, U (18MM)

90301-MJF-A01

$9.47

16

NUT, HEX. (8MM)

90302-MBZ-G00

$0.78

17

NUT, HEX. (8MM)

90303-MBZ-G00

$0.70

18

WASHER (20X31.5X2)

90401-MAS-000

$2.98

19

CIRCLIP (INNER) (37)

90651-MEW-920

$2.86

20

BEARING, NEEDLE (17X24X30)

91052-MGS-D31

$8.78

21

BEARING, RADIAL BALL (20X37X9)

91054-MGS-D31

$9.12

22

BEARING, NEEDLE (30X37X20)

91055-MGS-D31

$17.49

23

BEARING, NEEDLE

91071-MR7-003

$22.90

24

DUST SEAL (28X37X4)

91202-MR7-003

$5.91

25

DUST SEAL (30X37X4)

91253-KZ3-861

$7.79

26

SCREW, TAPPING (5X12)

93901-25280

$0.83
