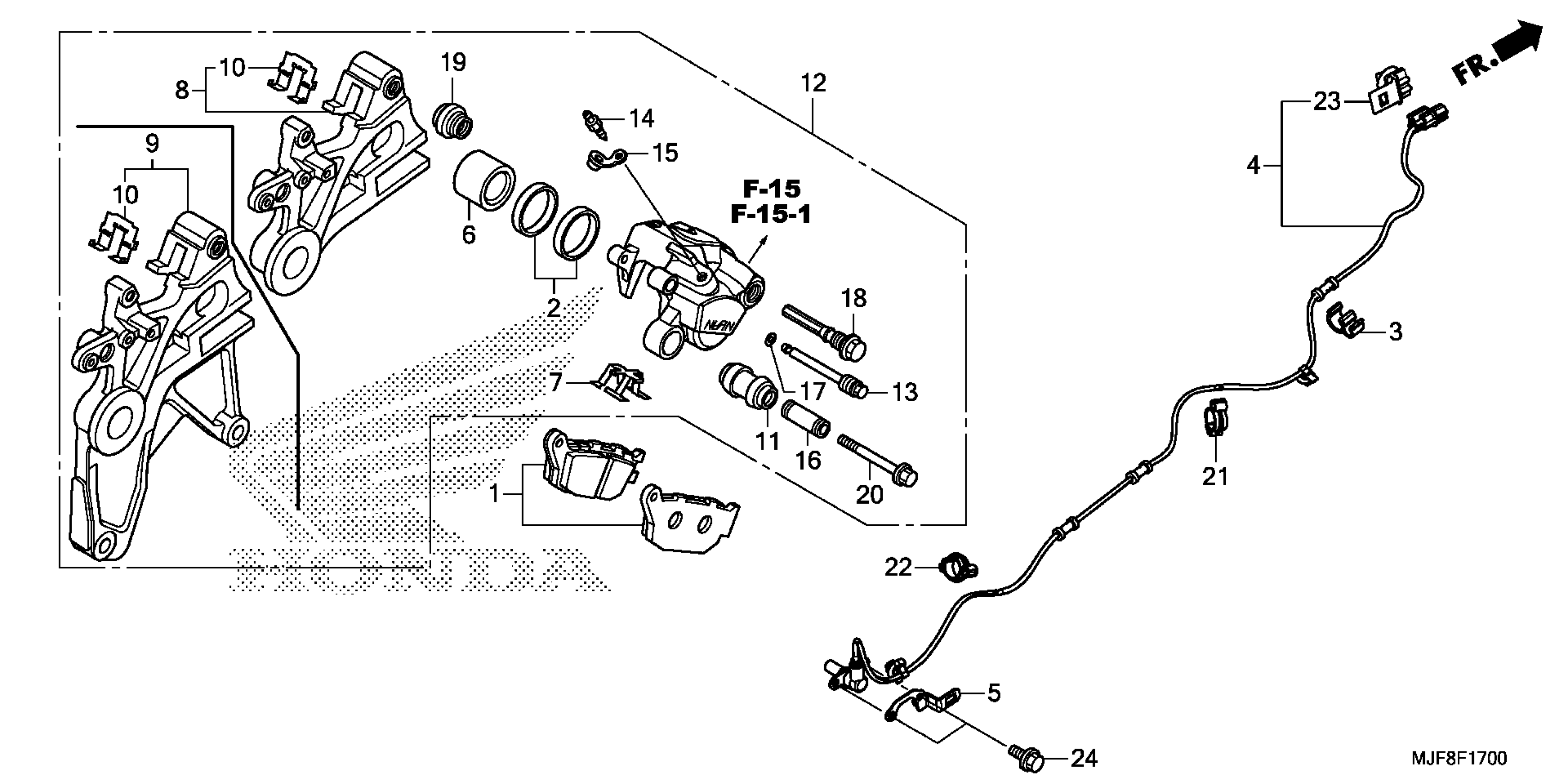

Honda CTX700NDAC (18) MOTORCYCLE, JPN, VIN# JH2RC685-JK300001 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR.

06435-MGS-D32

$49.46

SEAL SET, PISTON

06451-443-405

$13.23

CLAMP, PIPE

11152-KS4-003

$7.13

SENSOR, RR. WHEEL SPEED

38510-MJF-C11

$225.66

STAY, SPEED SENSOR

38555-MGS-D80

$5.62

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-MBB-006

$6.19

BRACKET, RR. (NISSIN)

43110-MJF-A21

$261.05

RETAINER

43112-KT7-761

$9.43

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MJF-A21

$416.21

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

RING, STOPPER

45111-MAJ-G41

$3.80

BOLT, PIN

45131-MN9-006

$15.97

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07

CLIP, CABLE (14MM)

90690-MCA-003

$1.77

CLIP, CABLE (13MM)

90690-MJF-C11

$2.34

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
