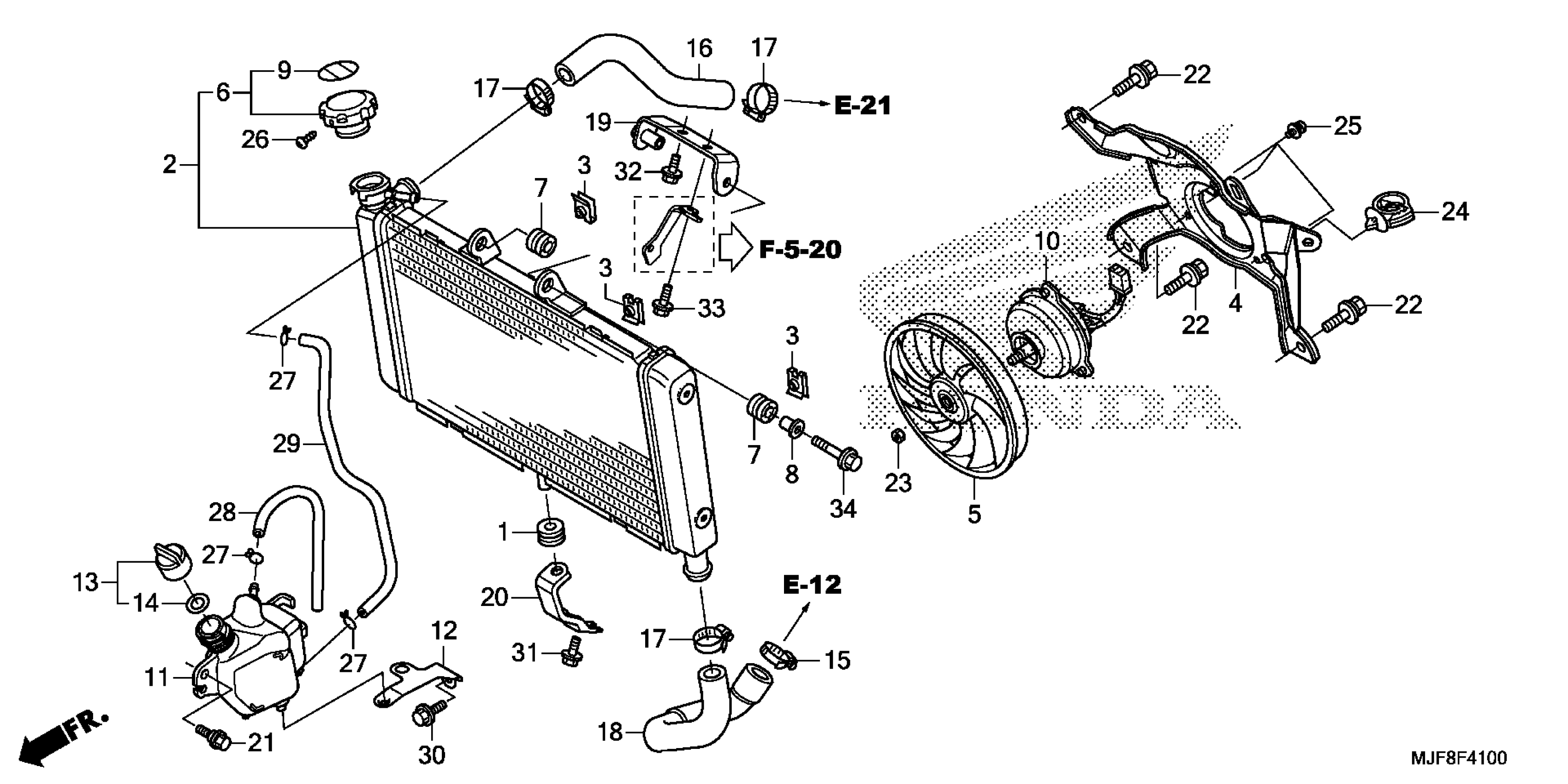

Honda CTX700NDAC (18) MOTORCYCLE, JPN, VIN# JH2RC685-JK300001 RADIATOR Diagram

RUBBER, CUSHION

17622-GB7-900

$4.78

RADIATOR (COO) This part replaces 19010-MJF-A01.

19010-MJF-305

$890.36

NUT, SETTING (6MM)

19014-KEA-003

$3.10

SHROUD

19016-MJF-A01

$82.02

FAN, COOLING (TOYO)

19020-MGS-D31

$39.67

CAP, RADIATOR

19045-MY3-621

$40.44

RUBBER, RADIATOR MOUNTING

19051-MGS-D30

$1.82

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$9.22

MOTOR ASSY., FAN

19080-MGS-D31

$215.93

TANK, RADIATOR RESERVE

19101-MGS-D30

$38.85

STAY, RESERVE TANK (LOWER)

19104-MGS-D70

$7.00

CAP ASSY., RESERVE TANK

19106-GET-000

$6.90

GASKET, RESERVE TANK

19107-GET-000

$3.74

CLAMP, WATER HOSE (35MM)

19504-MGP-000

$9.41

HOSE, RADIATOR (UPPER)

19505-MGS-D30

$14.51

CLAMP, WATER HOSE

19505-ML3-770

$7.08

HOSE, RADIATOR (LOWER)

19506-MGS-D30

$22.85

STAY, RADIATOR (UPPER)

19515-MGS-D30

$8.33

STAY, RADIATOR (LOWER) *NH303M* (MAT AXIS GRAY METALLIC)

19516-MGS-D30ZA

$10.00

BOLT, FLANGE (6MM)

90111-162-000

$2.89

BOLT-WASHER (6X12)

90120-GHB-601

$1.98

NUT, FLANGE (3MM)

90315-MFL-003

$2.33

CLIP, HARNESS

90683-MGC-920

$3.11

SCREW-WASHER (4X6)

93891-04006-07

$1.49

SCREW, TAPPING (3X8)

93901-22180

$1.49

CLIP, TUBE (B10)

95002-02100

$1.90

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

$34.09

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X14) (Honda Code 3707114)

95701-06014-02

$1.49

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)

95701-06025-08

$1.72
