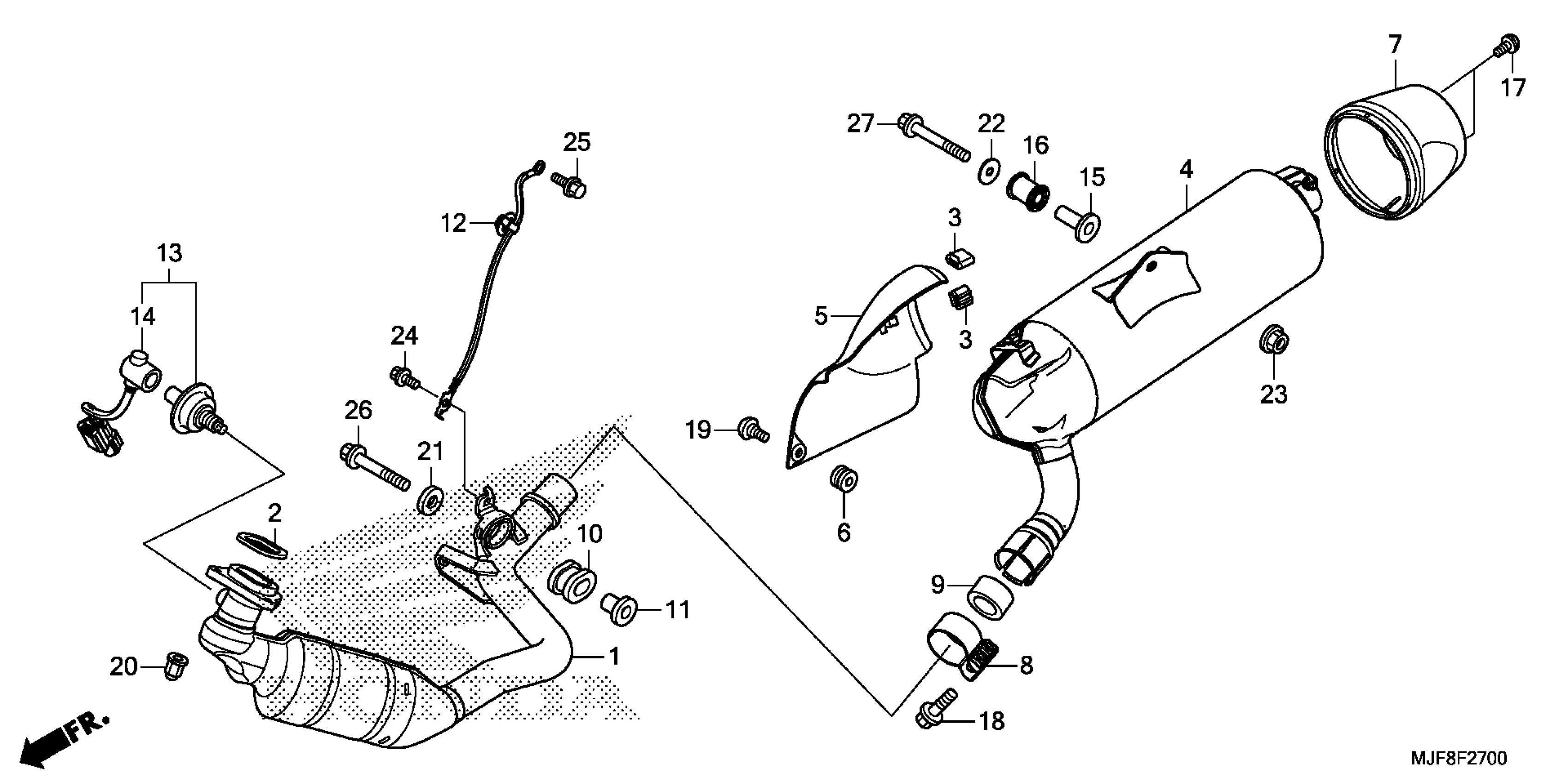

Honda CTX700NDAC (18) MOTORCYCLE, JPN, VIN# JH2RC685-JK300001 MUFFLER Diagram

#

Description
Price

1

PIPE, EX.

18150-MJF-A01

$1,085.49

2

GASKET, EX. PIPE

18291-MGS-D31

$11.31

3

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

4

MUFFLER

18310-MJF-A02

$611.11

5

COVER, MUFFLER

18342-MJF-A01

$58.40

6

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

7

COVER, MUFFLER END

18350-MJF-A00

$172.95

8

BAND, MUFFLER

18376-KG0-003

$18.83

9

GASKET, MUFFLER

18392-MK4-000

$13.66

10

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$18.48

11

COLLAR, EX. PIPE MOUNTING

18423-MGS-D30

$7.69

12

SUB-HARNESS, OXYGEN SENSOR GROUND

32200-MJF-A00

$8.98

13

SENSOR, OXYGEN

36532-MJF-A01

$267.56

14

WIRE, OXYGEN SENSOR

36533-MJF-A01

$66.38

15

COLLAR, MOUNTING RUBBER

50607-KK6-000

$9.13

16

RUBBER, MUFFLER MOUNTING

50608-KK6-000

$7.79

17

BOLT, SOCKET (6X10)

90102-MJF-A00

$3.20

18

BOLT, FLANGE (8X35)

90103-KCM-620

$1.57

19

SCREW, PAN (6X12)

90113-GFP-B00

$3.58

20

NUT, CAP (8MM)

90304-ME1-670

$5.94

21

WASHER (8MM)

90501-819-000

$1.49

22

WASHER (8.5X28)

90534-MV4-000

$2.89

23

NUT, FLANGE (8MM)

94050-08080

$1.49

24

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

26

BOLT, FLANGE (8X45)

96300-08045-04

$1.51

27

BOLT, FLANGE (8X50)

96300-08050-04

$1.79
