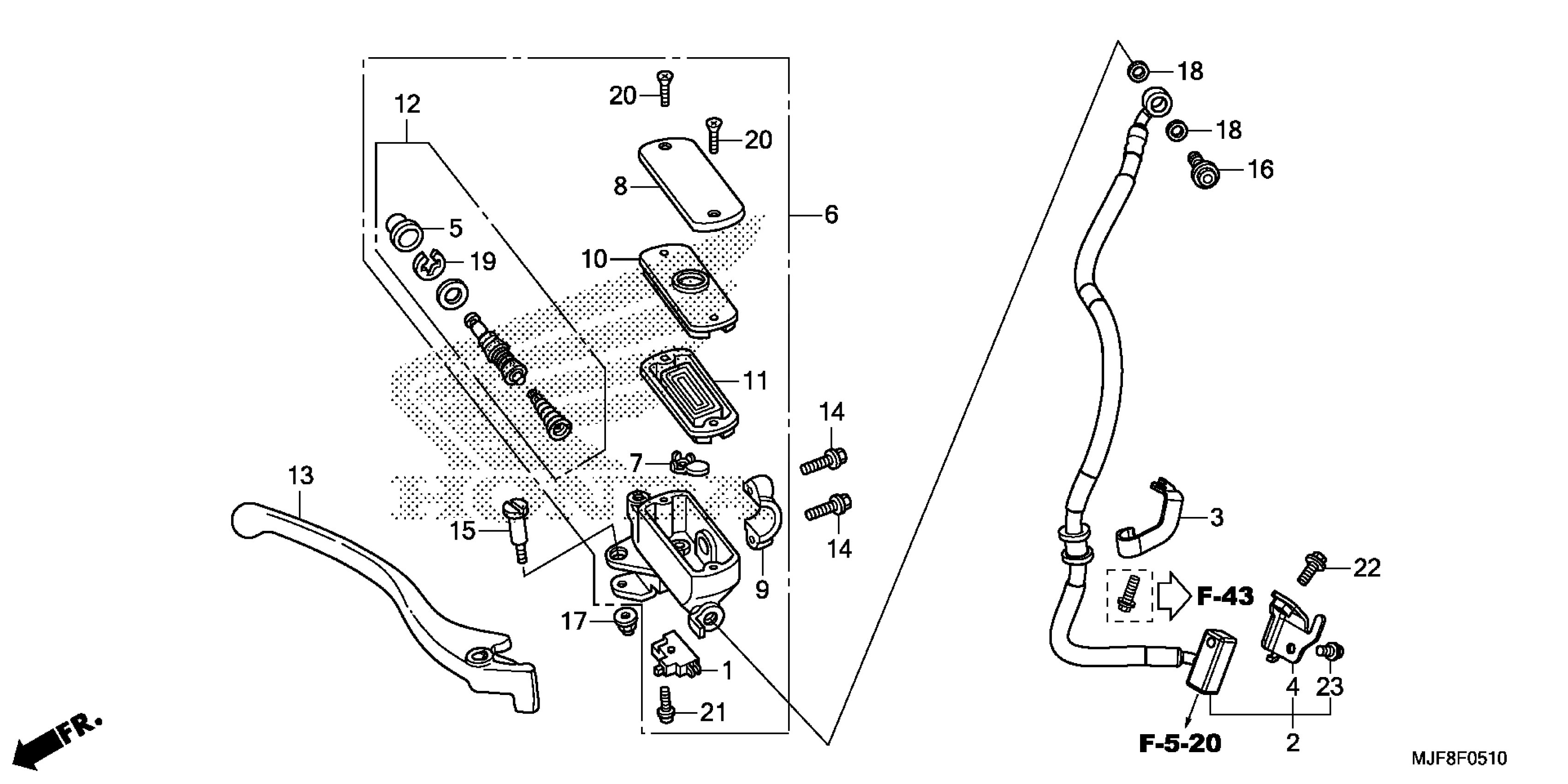

Honda CTX700NDAC (18) MOTORCYCLE, JPN, VIN# JH2RC685-JK300001 FRONT BRAKE MASTER CYLINDER (2) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

HOSE A, FR. BRAKE

45125-MJF-C11

$54.66

CLAMP A, FR. BRAKE

45155-MJF-C10

$7.19

STAY, FR. BRAKE HOSE

45158-MGS-D80

$5.49

BOOT

45504-410-003

$11.17

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MGS-D31

$258.54

PROTECTOR

45512-MA6-006

$4.09

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

MASTER CYLINDER SET

45530-KVY-911

$23.84

LEVER, R. HANDLE

53175-MK7-671

$16.42

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

NUT, CAP (6MM)

90201-415-000

Unavailable

WASHER, OIL BOLT

90545-300-000

$5.79

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

SCREW-WASHER (4X12)

93893-04012-07

$1.32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

BOLT, FLANGE (6X14)

95701-06014-07

$1.34

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.79
