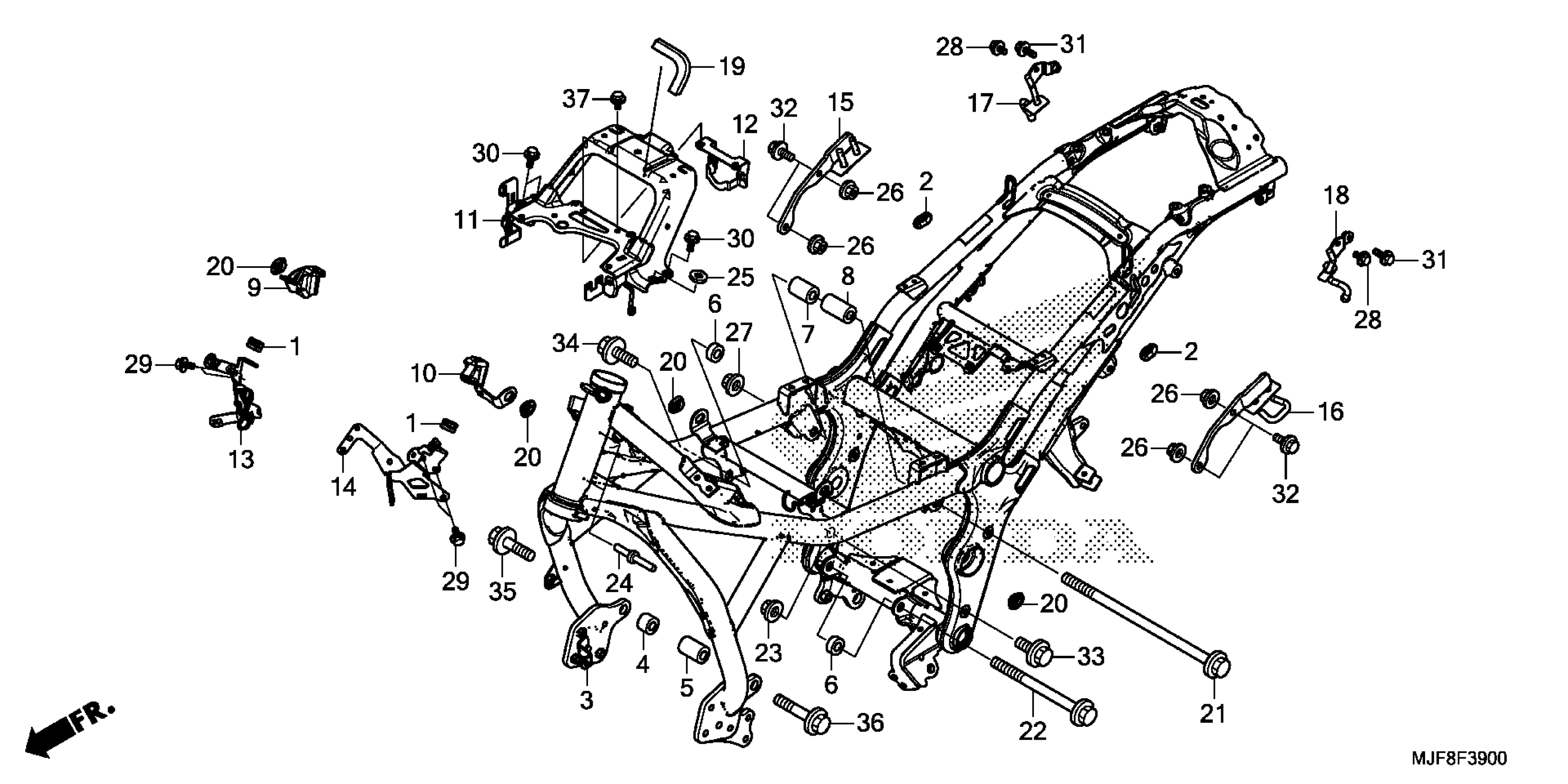

Honda CTX700NDAC (18) MOTORCYCLE, JPN, VIN# JH2RC685-JK300001 FRAME Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.77

2

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$7.56

3

FRAME *NH303M* (MAT AXIS GRAY METALLIC)

50100-MJF-A00ZA

$2,610.77

4

COLLAR A, R. ENGINE HANGER

50191-MJF-A00

$7.55

5

COLLAR A, L. ENGINE HANGER

50192-MJF-A00

$11.36

6

COLLAR B, ENGINE HANGER

50193-MGS-D10

$5.06

7

COLLAR C, R. ENGINE HANGER

50194-MGS-D10

$10.26

8

COLLAR C, L. ENGINE HANGER

50195-MGS-D10

$11.91

9

STAY, R. FR. TANK

50231-MJF-A00

$18.70

10

STAY, L. FR. TANK

50232-MJF-A00

$18.70

11

PLATE, CENTER CROSS

50234-MJF-A00

$108.78

12

STAY, BANK ANGLE SENSOR

50236-MJF-A00

$23.55

13

STAY, R. AIR CLEANER HOUSING

50237-MJF-A00

$18.13

14

STAY, L. AIR CLEANER HOUSING

50238-MJF-A00

$18.13

15

HOOK, R. FR.

50240-MJF-A00

$37.74

16

HOOK, L. FR.

50241-MJF-A00

$37.74

17

HOOK, R. RR.

50245-MJF-A00

$37.96

18

HOOK, L. RR.

50246-MJF-A00

$37.96

19

MAT, RR. FENDER A

80102-MGS-D70

$3.46

20

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

21

BOLT, FLANGE (12X276)

90103-MGS-D30

$17.84

22

BOLT, FLANGE (12X168)

90104-MGS-D30

$11.04

23

NUT, FLANGE (12MM)

90364-MEJ-000

$1.57

24

SCREW, RIVET (1.5X5) (NOT AVAILABLE)

90841-001-000

$1.38

25

WASHER, BLACK (20MM)

91414-671-000

$4.43

26

NUT, FLANGE (8MM)

94050-08070

$1.36

27

NUT, FLANGE (12MM)

94050-12000

$0.94

28

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

29

BOLT, FLANGE (6X14)

95701-06014-08

$1.48

30

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48

31

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

32

BOLT, FLANGE (8X22)

95701-08022-07

$1.91

33

BOLT, FLANGE (12X35)

95701-12035-08

$2.88

34

BOLT, FLANGE (12X45)

95701-12045-08

$1.89

35

BOLT, FLANGE (12X55)

95701-12055-08

$2.99

36

BOLT, FLANGE (12X80)

95701-12080-08

$4.01

37

BOLT, FLANGE (6X12)

96001-06012-00

$1.64
