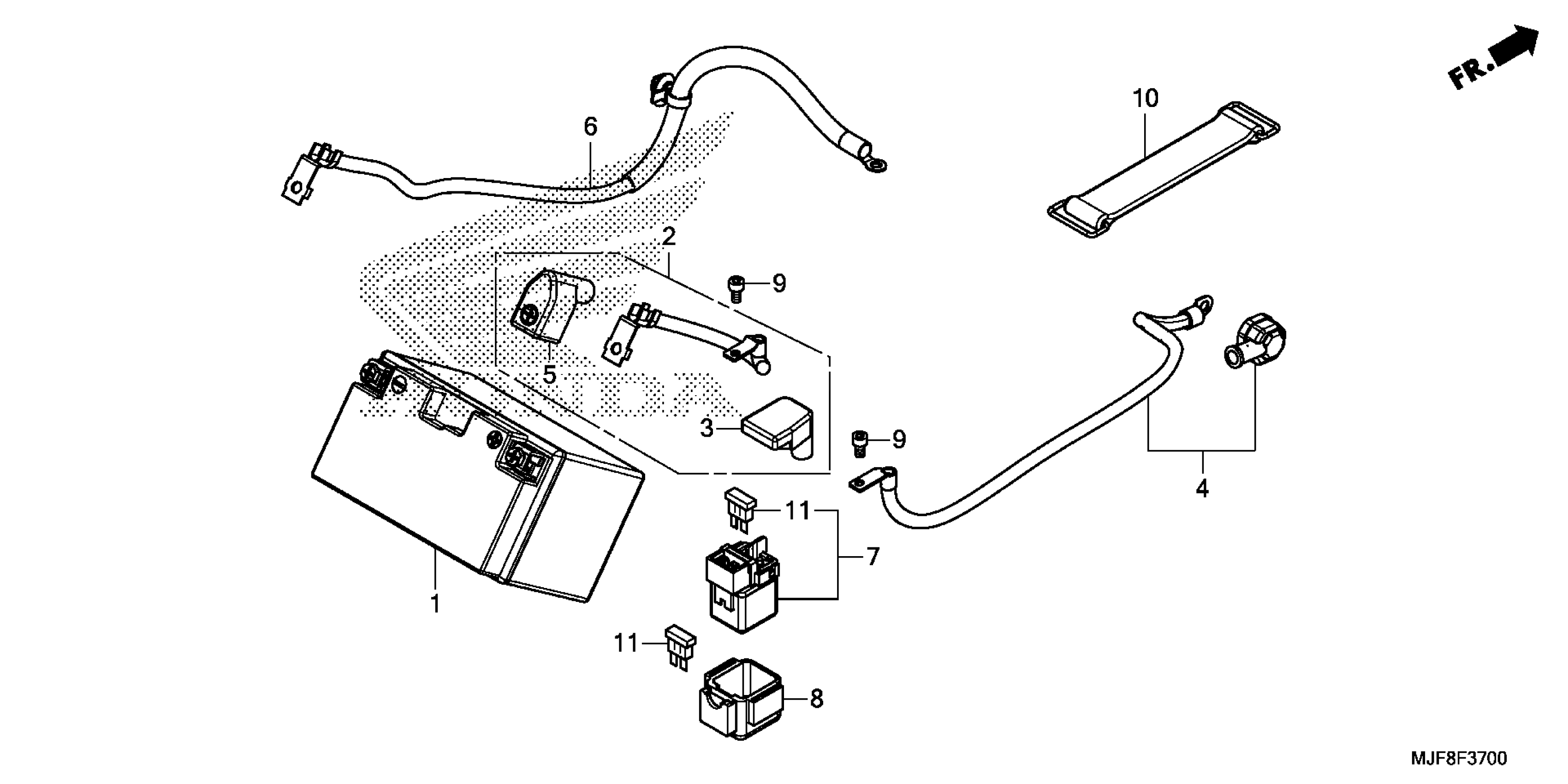

Honda CTX700NDAC (18) MOTORCYCLE, JPN, VIN# JH2RC685-JK300001 BATTERY Diagram

#

Description

Price

1

BATTERY (YTZ12S) (YUASA) (MSDS) This part replaces 31500-MCF-643.

31500-MCF-644

$156.43

1

BATTERY (YTZ12S) (YUASA) (MSDS) This part replaces 31500-MCF-643AH.

31500-MCF-644

$156.43

4

CABLE, STARTER MOTOR

32410-MJF-A20

$37.82

6

CABLE, BATTERY GROUND

32601-MJF-A20

$29.01

7

SWITCH ASSY., STARTER MAGNETIC

35850-MT4-003

$71.60

8

RUBBER, SHOCK

35856-MBG-003

$8.43

9

BOLT, SOCKET (5X9)

90111-MR5-000

$2.41

10

BAND F, BATTERY (155MM)

95012-17001

$6.90

11

FUSE, BLADE (30A)

98200-33000

$1.21
