Description

Price

1

CLAMP, TUBE (7.5X2)

17205-PC6-000

$8.38

2

SPRING, BALL SETTING

24271-743-000

$2.21

3

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

4

CABLE, PARKING BRAKE

43450-MJF-A21

$51.93

5

CLAMP, PARKING BRAKE

43455-MGS-D50

$8.56

6

GUIDE, PARKING BRAKE

43456-MGS-D70

$6.32

7

HOLDER (UPPER)

47111-MGS-D50

$50.38

8

COVER, HOLDER

47117-MGS-D50

$3.53

9

LEVER, PARKING TOP

47152-MGS-D51

$10.25

10

SPRING, SWITCH

47154-MGE-D00

$7.85

11

SPRING, PLUNGER

47155-MGE-D00

$3.46

12

CAP, HOLDER (LOWER)

47156-MGE-D00

$2.13

13

LEVER ASSY., PARKING

47200-MJF-A21

$340.75

14

LEVER, PARKING

47210-MGS-D51

$41.32

15

WASHER (10.2MM)

90401-430-000

$1.59

16

WASHER, PLAIN (4X8)

90515-GN5-910

$1.15

16

WASHER, PLAIN (4X8) This part replaces 90515-046-810.

90515-GN5-910

$1.15

17

CLIP, JOINT

90601-MEJ-000

$3.38

18

PLUG, CHANGE REINFORCEMENT

90801-SB0-000

$3.50

19

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$0.84

20

SCREW-WASHER (4X14)

93892-04014-07

$1.18

21

PIN, SPRING (3X22)

94305-30223

$1.10

22

PIN, SPRING (3X28) (NOT AVAILABLE)

94305-30283

$1.65

23

E-RING (9MM) (NOT AVAILABLE)

94540-09018

$3.56

24

BOLT, FLANGE (6X14)

96001-06014-00

$1.66

25

BOLT, SOCKET (6X20)

96600-06020-07

$0.96

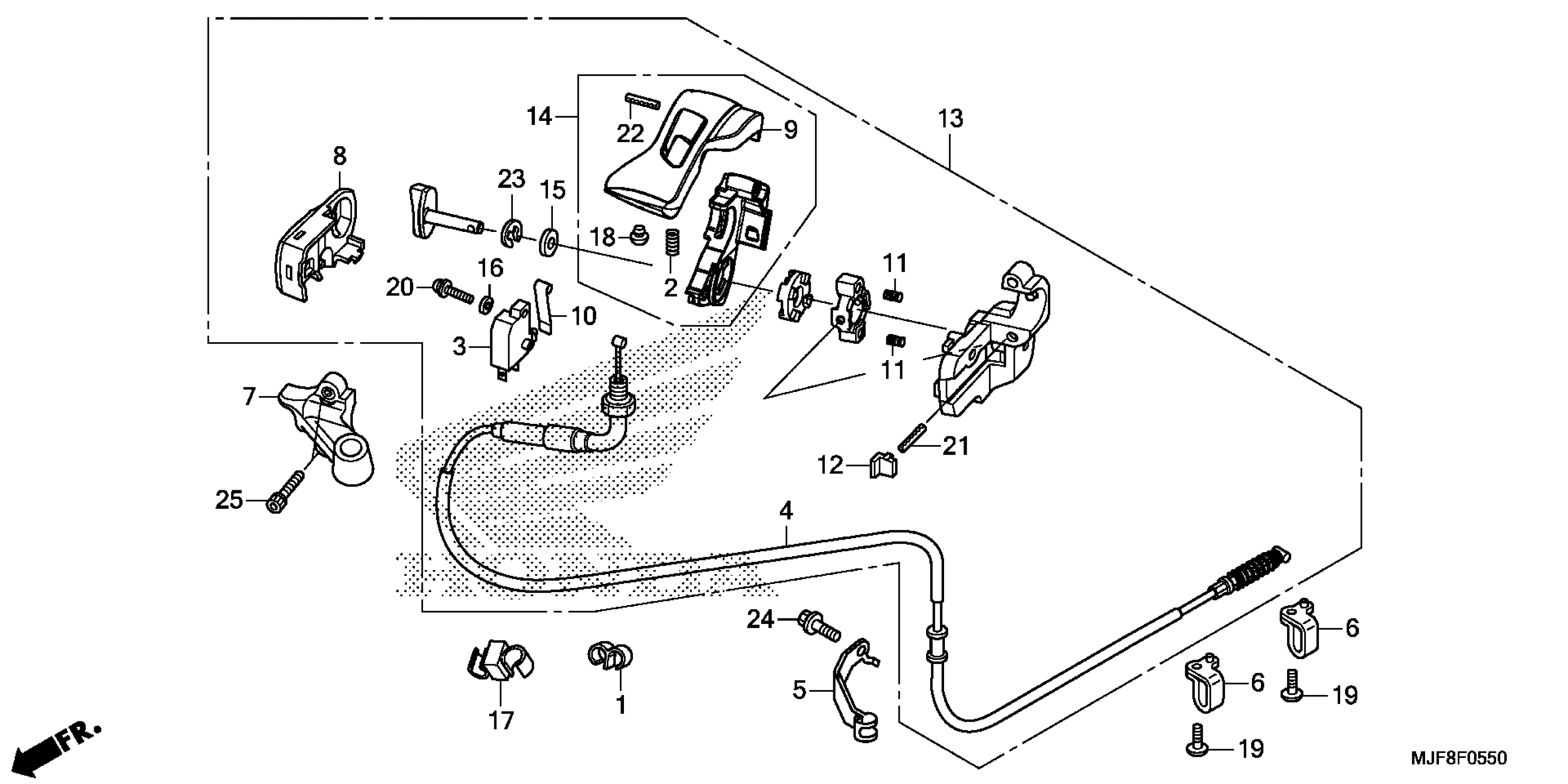

Honda CTX700NDA (18) MOTORCYCLE, JPN, VIN# JH2RC684-JK300001 PARKING BRAKE LEVER Diagram
