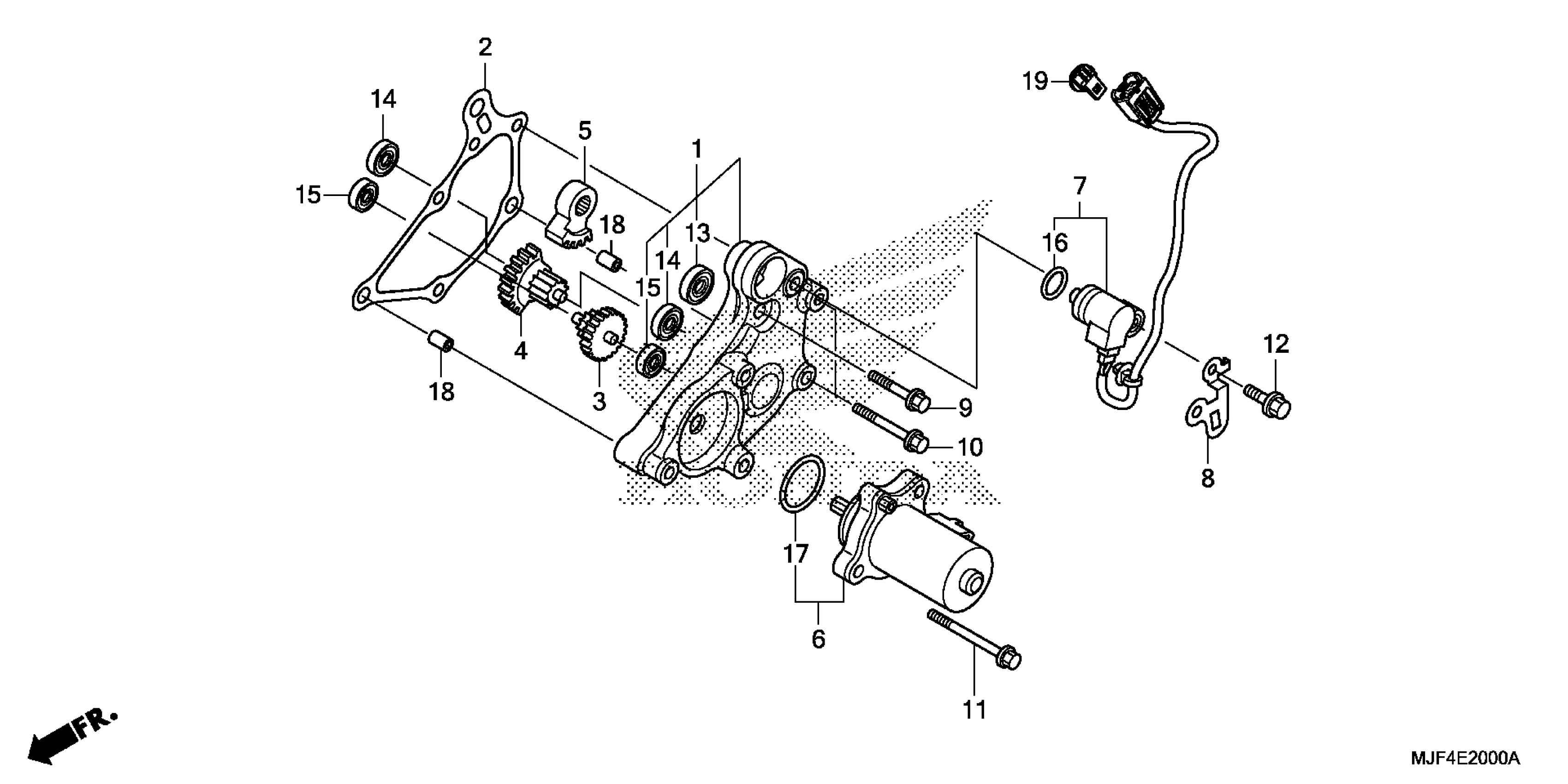

Honda CTX700NDA (15) CTX700ND, JPN, VIN# JH2RC684-FK100001 REDUCTION GEAR Diagram

COVER, REDUCTION GEAR

11520-MGS-D20

$98.87

GASKET This part replaces 11523-MGS-D20.

11523-MGS-D21

$10.91

GEAR, SHIFT REDUCTION (45T/7T)

24615-MGE-D01

$62.28

GEAR, SHIFT REDUCTION (32T/13T)

24616-MGS-D21

$61.41

GEAR, SHIFT REDUCTION (42T)

24617-MGE-D01

$50.53

MOTOR, RATIO CONTROL This part replaces 31300-MJF-A21.

31300-MJF-A22

$255.41

SENSOR ASSY., ANGLE

38800-MGS-D21

$221.94

STAY, ANGLE SENSOR WIRE

38815-MGS-D20

$2.60

BOLT, FLANGE (6X28)

90001-MGS-D20

$1.81

BOLT, FLANGE (6X40)

90002-MGS-D20

$2.68

BOLT, FLANGE (6X60)

90003-MGS-D20

$2.44

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.66

BEARING, RADIAL BALL (699ZZ)

91025-MGS-D21

$10.15

BEARING, RADIAL BALL (607ZZ)

91026-MGS-D21

$9.03

BEARING, RADIAL BALL (696ZZ)

91027-MGS-D21

$8.03

O-RING (16.5X2.5)

91310-MGE-D01

$4.44

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.65

PIN, DOWEL (8X10)

94301-08100

$2.62

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.52
