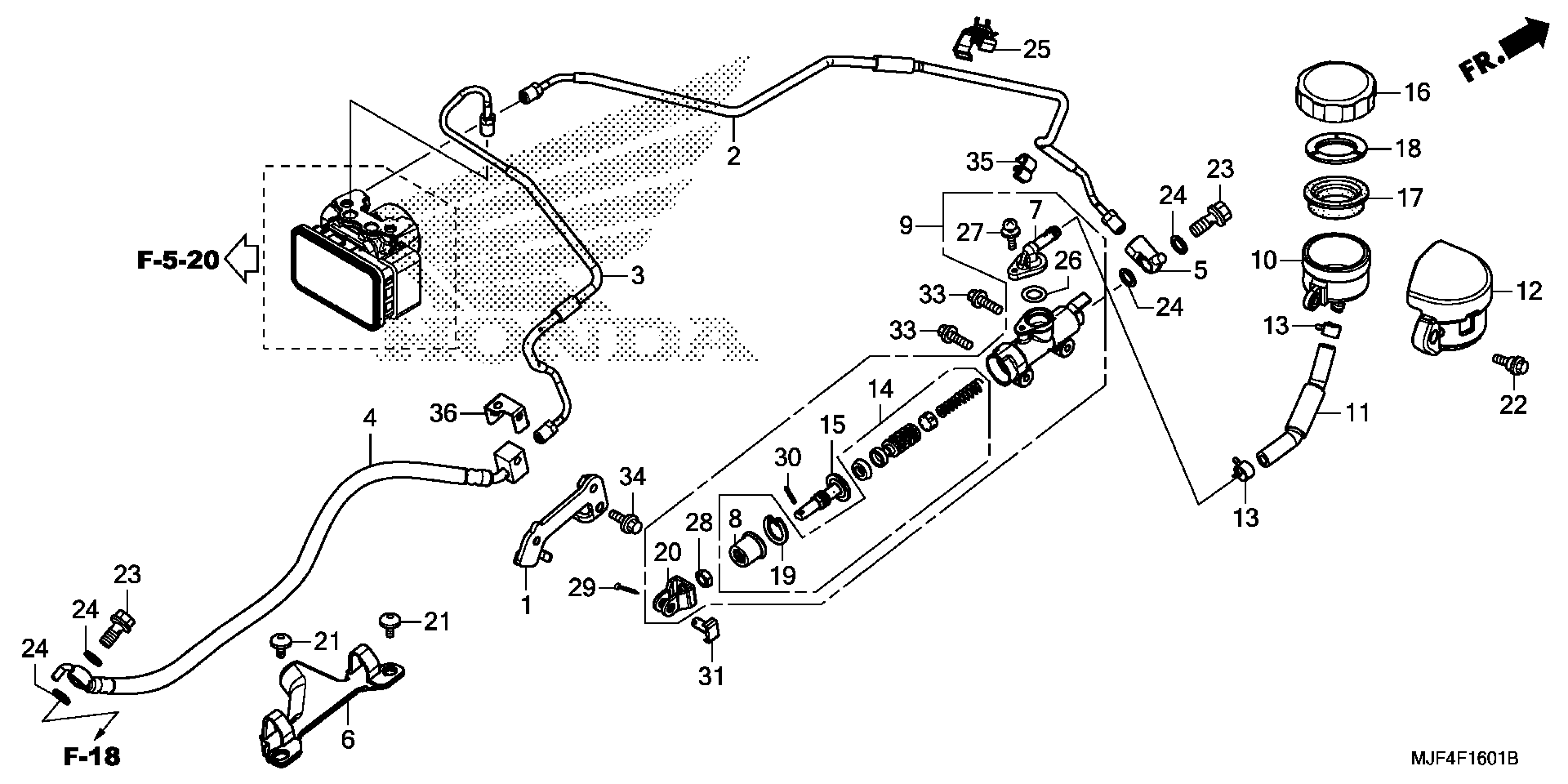

Honda CTX700NDA (15) CTX700ND, JPN, VIN# JH2RC684-FK100001 REAR BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

STAY, RR. BRAKE HOSE

43160-MGS-D70

$15.63

2

PIPE A, RR. BRAKE

43310-MJF-C10

$33.65

3

PIPE C, RR. BRAKE

43312-MJF-C10

$17.66

4

HOSE D, RR. BRAKE

43313-MJF-A01

$90.60

5

JOINT, BRAKE PIPE

43321-MJF-A01

$33.47

6

GUIDE, RR. BRAKE HOSE

43468-MGS-D31

$15.32

7

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.15

8

BOOT

43504-MB2-006

$9.24

9

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN) This part replaces 43510-MJF-305.

43510-MJF-A01

$202.99

10

CUP, OIL

43511-MR7-016

$29.99

11

HOSE, RR. BRAKE MASTER CYLINDER

43512-MJF-A01

$17.85

12

COVER, RR. MASTER CYLINDER CUP

43513-MJF-A00

$17.56

13

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

14

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$41.66

15

ROD, PUSH

43530-MV9-006

$32.63

16

CAP, OIL CUP

45513-MEL-D21

$16.92

17

DIAPHRAGM

45520-300-000

$8.34

18

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

19

CIRCLIP

46182-MEL-D21

$1.79

20

JOINT, BRAKE ROD

46504-MAH-671

$13.21

21

SCREW, SPECIAL (5X14)

90101-MJJ-D30

Unavailable

22

BOLT, FLANGE (6X25)

90113-MJF-A00

$4.09

23

BOLT, OIL (10X22)

90145-MS9-612

$6.99

24

WASHER, OIL BOLT

90545-300-000

$6.56

25

CLAMP, BRAKE PIPE (7.0X2)

90661-MEW-921

$2.62

26

O-RING (14.8X2.4)

91212-422-006

$2.37

27

SCREW-WASHER (4X12)

93893-04012-07

$1.24

27

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

28

NUT, HEX. (8MM)

94002-08000-0S

$1.21

29

PIN, SPLIT (2.0X15)

94201-20150

$0.96

30

PIN, SPRING (2X10)

94305-20102

$0.81

31

PIN D, JOINT

95015-54000

$4.05

32

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

33

BOLT, FLANGE (6X18)

95701-06018-00

$1.50

34

BOLT, FLANGE (6X14)

96001-06014-00

$1.66

35

CLAMP, PIPE

11152-KS4-003

$6.80

36

STAY, SENSOR WIRE

38515-MJF-A00

$3.87
