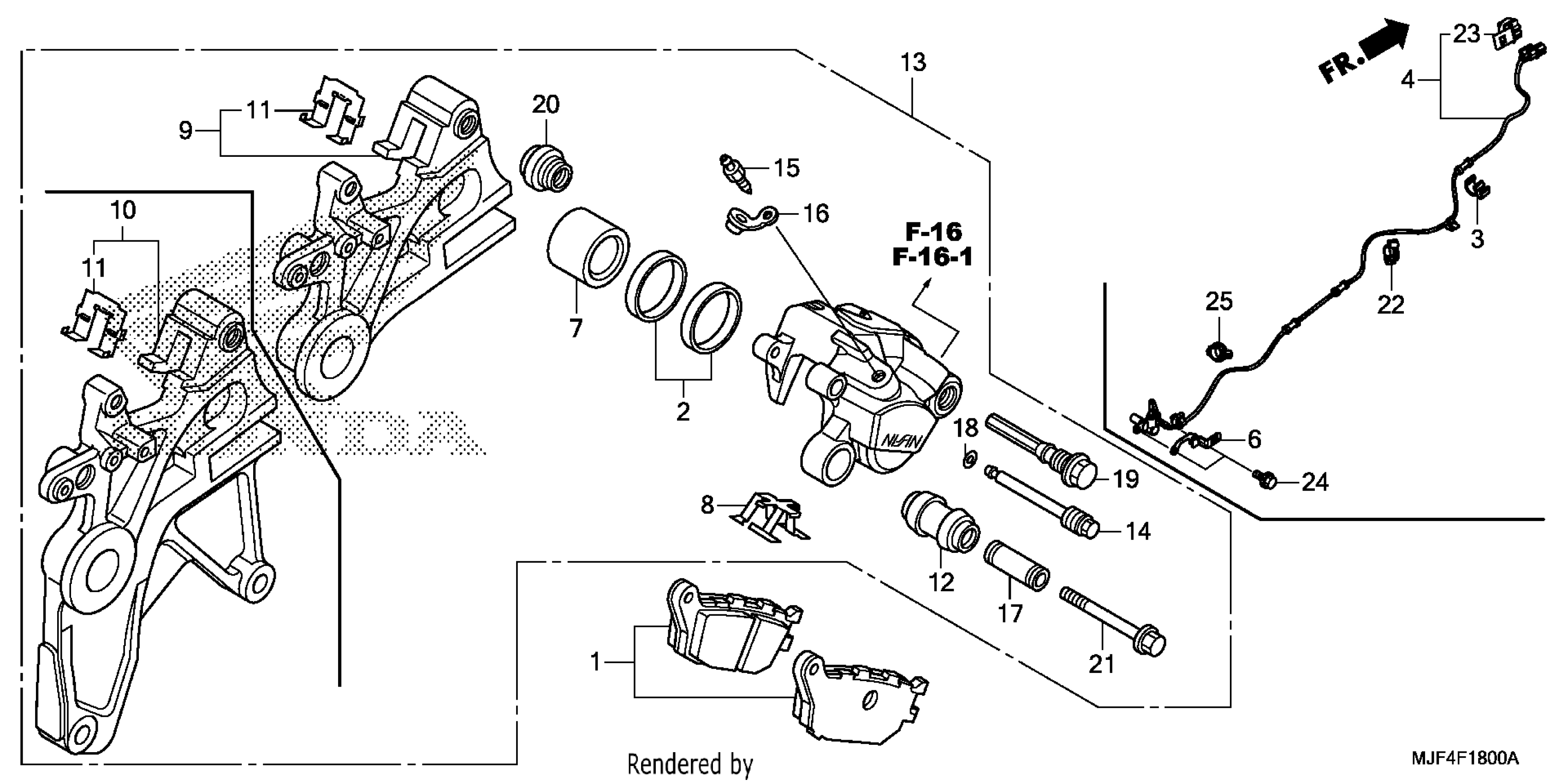

Honda CTX700NDA (15) CTX700ND, JPN, VIN# JH2RC684-FK100001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR. This part replaces 06435-MGS-D31.

06435-MGS-D32

$44.08

1

PAD SET, RR.

06435-MGS-D32

$44.08

2

SEAL SET, PISTON

06451-443-405

$12.15

3

CLAMP, PIPE

11152-KS4-003

$6.80

4

SENSOR, RR. WHEEL SPEED

38510-MJF-C11

$208.49

6

STAY, SPEED SENSOR

38555-MGS-D80

$5.19

7

PISTON

43107-KT7-761

$34.77

8

SPRING, PAD

43108-MBB-006

$5.90

10

BRACKET, RR. (NISSIN)

43110-MJF-A21

$241.16

11

RETAINER

43112-KT7-761

$8.68

12

BOOT, SLEEVE

43132-KT7-761

$7.85

13

CALIPER SUB-ASSY., RR. BRAKE (NISSIN)

43150-MJF-A21

$384.57

14

PIN, HANGER

43215-KZ4-J41

Unavailable

15

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

16

CAP, BLEEDER

43353-461-771

Unavailable

17

SLEEVE

45111-MA3-006

$12.28

18

RING, STOPPER

45111-MAJ-G41

$3.63

19

BOLT, PIN

45131-MN9-006

$14.66

20

BOOT B

45133-MA3-006

$5.21

21

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80

22

CLIP, CABLE (14MM)

90690-MCA-003

$1.63

23

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.52

24

BOLT, FLANGE (6X16)

96001-06016-07

$0.97

25

CLIP, CABLE (13MM)

90690-MJF-C11

$2.16
