Description

Price

1

CLAMP, TUBE (7.5X2)

17205-PC6-000

$8.26

2

SPRING, BALL SETTING

24271-743-000

$2.17

3

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.62

4

CABLE, PARKING BRAKE

43450-MJF-A21

$51.17

5

CLAMP, PARKING BRAKE

43455-MGS-D50

$8.43

6

GUIDE, PARKING BRAKE

43456-MGS-D70

$6.23

7

HOLDER (UPPER)

47111-MGS-D50

$49.65

8

COVER, HOLDER

47117-MGS-D50

$3.48

9

LEVER, PARKING TOP This part replaces 47152-MGS-D50.

47152-MGS-D51

$10.10

10

SPRING, SWITCH

47154-MGE-D00

$7.74

11

CAP, HOLDER (LOWER)

47156-MGE-D00

$2.10

12

LEVER ASSY., PARKING

47200-MJF-A20

Unavailable

13

LEVER, PARKING This part replaces 47210-MGS-D50.

47210-MGS-D51

$40.72

13

LEVER, PARKING

47210-MGS-D51

$40.72

14

WASHER (10.2MM)

90401-430-000

$1.57

15

WASHER, PLAIN (4X8)

90515-GN5-910

$1.13

15

WASHER, PLAIN (4X8) This part replaces 90515-046-810.

90515-GN5-910

$1.13

16

CLIP, JOINT

90601-MEJ-000

$3.33

17

PLUG, CHANGE REINFORCEMENT

90801-SB0-000

$3.45

18

SCREW, PAN (5X16)

93500-05016-0G

$0.83

19

SCREW-WASHER (4X14)

93892-04014-07

$0.90

20

PIN, SPRING (3X28) (NOT AVAILABLE)

94305-30283

$1.38

21

E-RING (9MM) (NOT AVAILABLE)

94540-09018

$3.51

22

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

23

BOLT, SOCKET (6X20)

96600-06020-07

$0.94

24

SPRING, PLUNGER

47155-MGE-D00

$3.37

25

PIN, SPRING (3X22)

94305-30223

$1.09

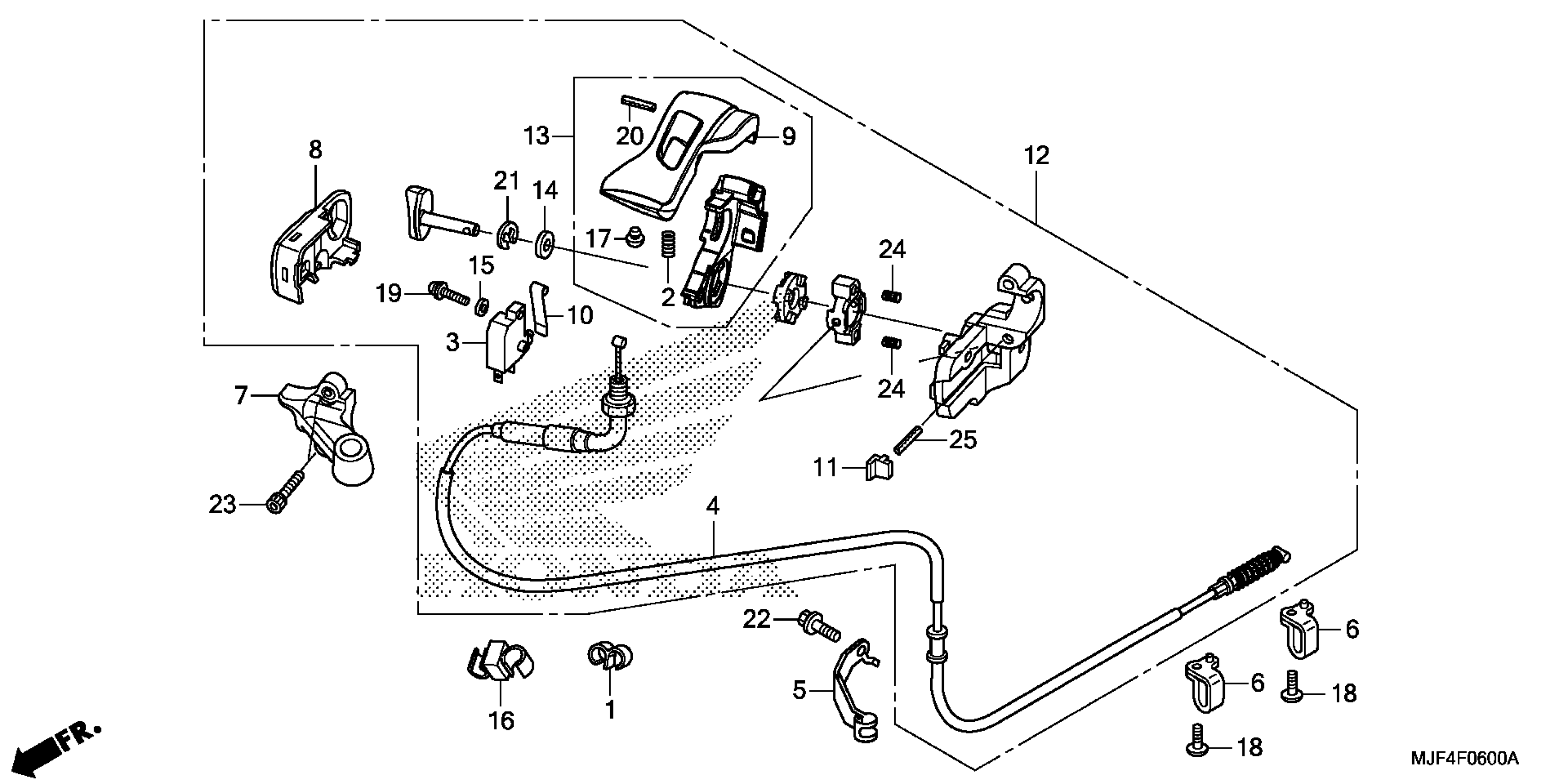

Honda CTX700NDA (15) CTX700ND, JPN, VIN# JH2RC684-FK100001 PARKING BRAKE LEVER Diagram
