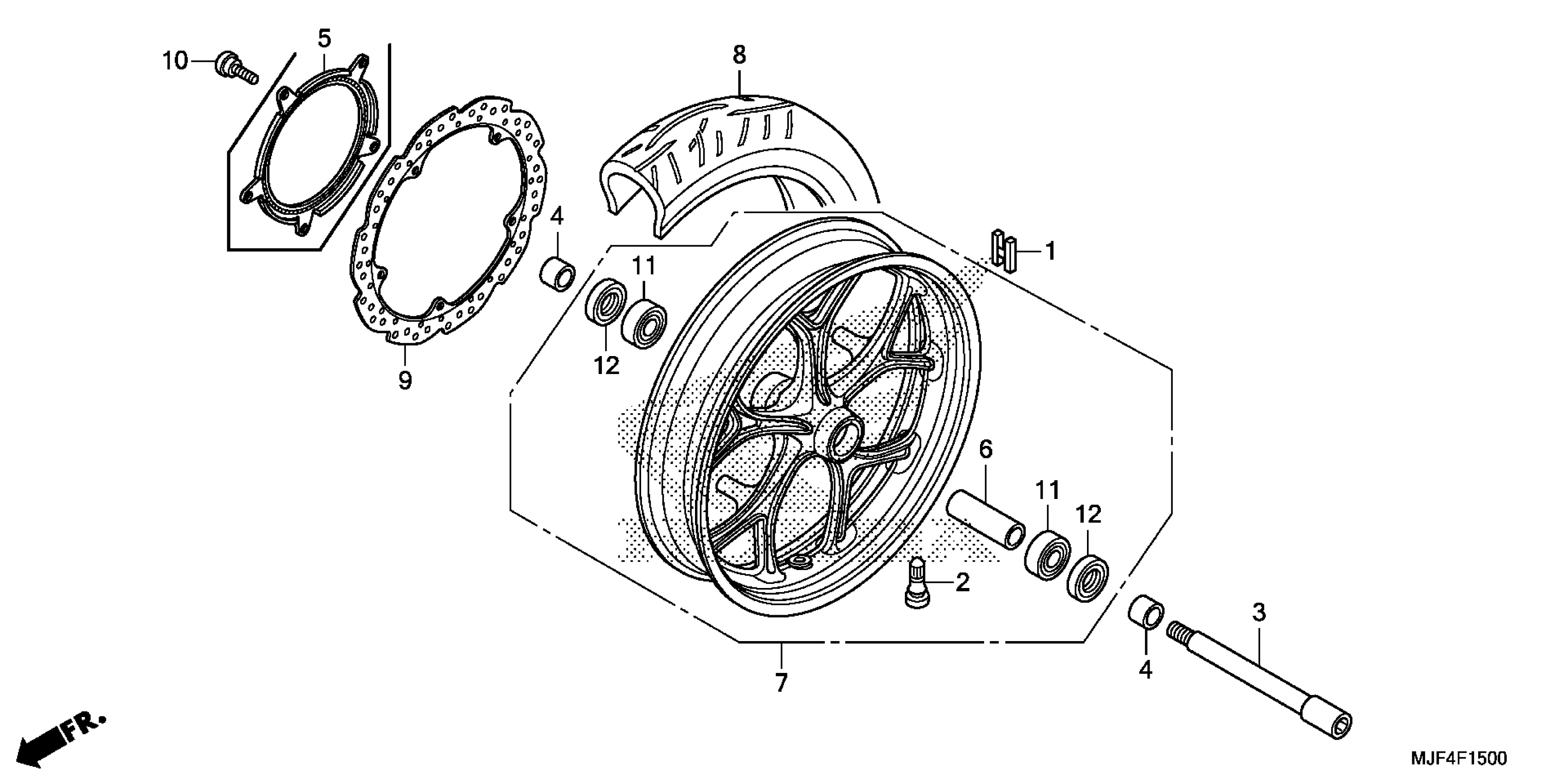

Honda CTX700NDA (15) CTX700ND, JPN, VIN# JH2RC684-FK100001 FRONT WHEEL Diagram

#

Description

Price

1

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.15

1

WEIGHT, BALANCE (20G)

42705-MER-D00

$16.09

1

WEIGHT, BALANCE (30G)

42706-MER-D00

$15.85

2

VALVE, RIM (BS)

42753-ML7-003

$11.69

3

AXLE, FR. WHEEL

44301-MGS-D30

$49.15

4

COLLAR, FR. WHEEL SIDE

44311-MGS-D10

$15.06

5

RING, FR. PULSER

44515-MGS-D81

$117.62

6

COLLAR, FR. AXLE DISTANCE

44620-MGS-D10

$14.79

7

WHEEL SUB-ASSY., FR. This part replaces 44650-MGS-306.

44650-MGS-D11

$742.62

8

TIRE, FR This part replaces 44711-MGS-D32.

44711-MGS-D37

$156.50

9

DISK, FR. BRAKE (SUNSTAR)

45251-MGS-D81

$476.38

10

BOLT, DISK (8X25)

90105-MGS-D30

$2.80

11

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

$11.86

12

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.66
