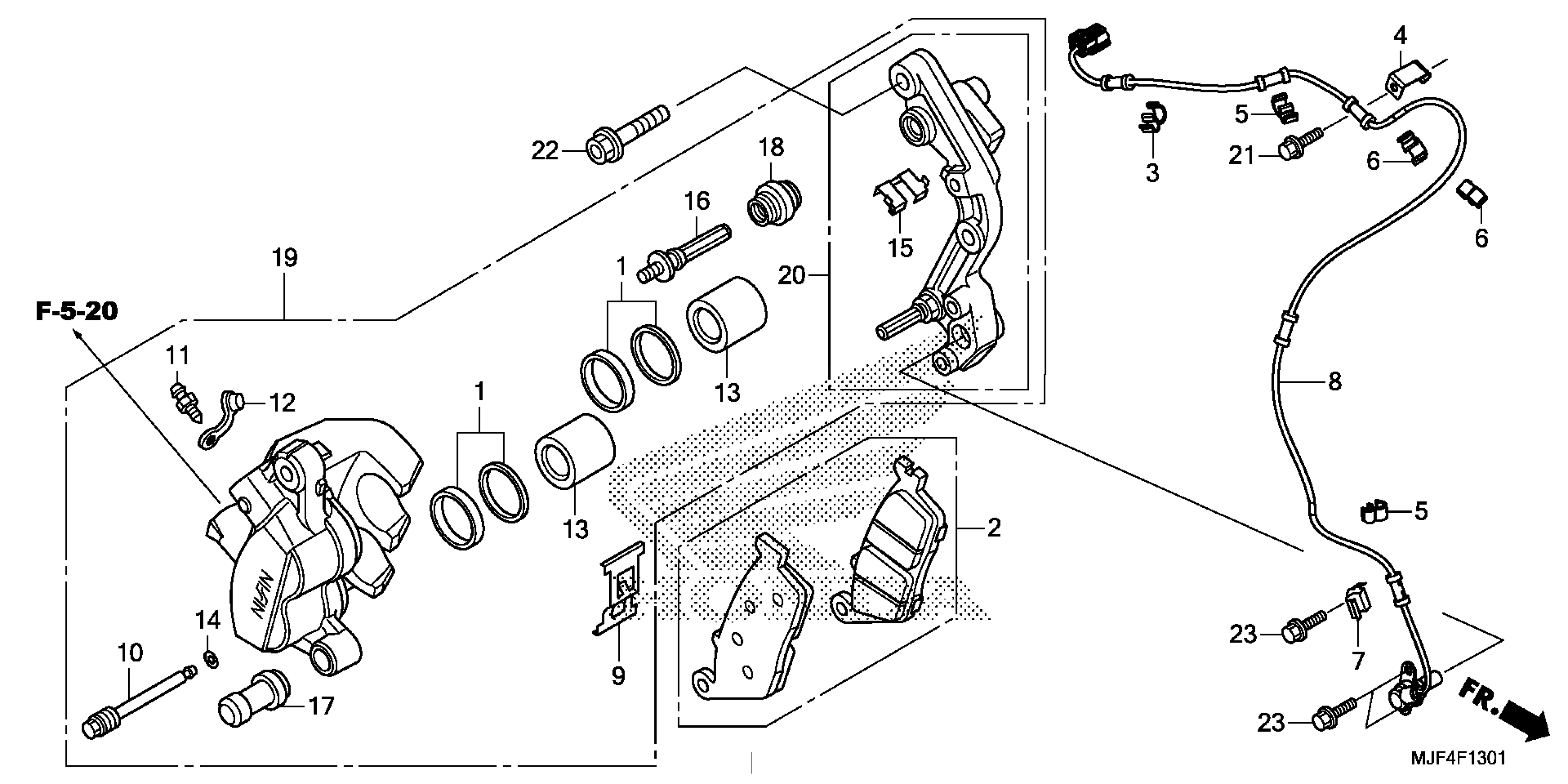

Honda CTX700NDA (15) CTX700ND, JPN, VIN# JH2RC684-FK100001 FRONT BRAKE CALIPER (2) Diagram

SEAL SET, PISTON

06431-MA3-405

$7.33

PAD SET, FR. This part replaces 06455-MGS-D31.

06455-MGS-D32

$51.67

CLAMP, PIPE

11152-KS4-003

$7.13

CLAMP, SENSOR WIRE

38514-MJF-C10

$3.75

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$3.10

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.72

CLAMP, SENSOR WIRE

38517-MGS-D80

$5.16

SENSOR, FR. WHEEL SPEED

38520-MJF-C11

$225.66

SPRING, PAD

43108-MCT-006

$4.92

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-ML4-006

$37.87

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER

45112-ML7-921

$5.46

BOLT A, PIN

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MGZ-J11

$181.85

BRACKET SUB-ASSY., R. FR.

45290-MGZ-J11

$51.39

BOLT, FLANGE (6X18)

90112-MEL-000

$1.77

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.75

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
