Description

Price

1

CRANKCASE SET | Use up to Engine SN 6008106

11000-MGS-D42

$2,192.87

1

CRANKCASE SET | Use from Engine SN 6008107

11000-MGS-D43

$2,260.74

2

PLATE, PARTITION

11103-MGS-D31

$5.28

3

ORIFICE (1.1MM)

11207-MFL-000

$3.47

4

ORIFICE (1.5MM)

11207-MGS-D30

$3.82

5

BOLT, SEALING (20MM)

12208-PR3-000

$8.43

6

SWITCH ASSY., NEUTRAL

35600-MFJ-D01

$19.43

7

SWITCH ASSY., OIL PRESSURE

37241-RNA-A01

$101.78

8

SENSOR ASSY., SPEED

37700-MGS-D31

$154.71

9

SENSOR ASSY., THERMOSTAT OIL (PANASONIC)

37750-KPH-701

$46.23

10

BOLT, SEALING (12X8)

90002-RGA-000

$7.35

11

BOLT, FLANGE (9X150)

90015-MGS-D31

$12.21

12

BOLT, FLANGE (9X125)

90016-MFA-D01

$4.44

13

BOLT, SPECIAL (6X45)

90021-MJL-D30

$3.01

14

BOLT, FLANGE (8X100)

90021-MGS-D30

$3.09

15

BOLT, SPECIAL (6X32)

90022-MJL-D30

$2.54

16

WASHER, SEALING (8MM)

90442-028-000

$1.63

17

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.80

18

WASHER, NEUTRAL

90443-MJ6-000

$1.78

19

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

20

WASHER (12MM)

90545-KF0-000

$2.90

21

PIN, DOWEL (10X16)

90701-MV9-670

$4.10

22

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.63

23

BOLT, FLANGE (6X12)

95701-06012-00

$1.84

24

BOLT, FLANGE (6X18)

95701-06018-00

$1.50

25

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

26

BOLT, FLANGE (8X70)

95701-08070-00

$3.14

27

BOLT, FLANGE (10X70)

95701-10070-00

$2.03

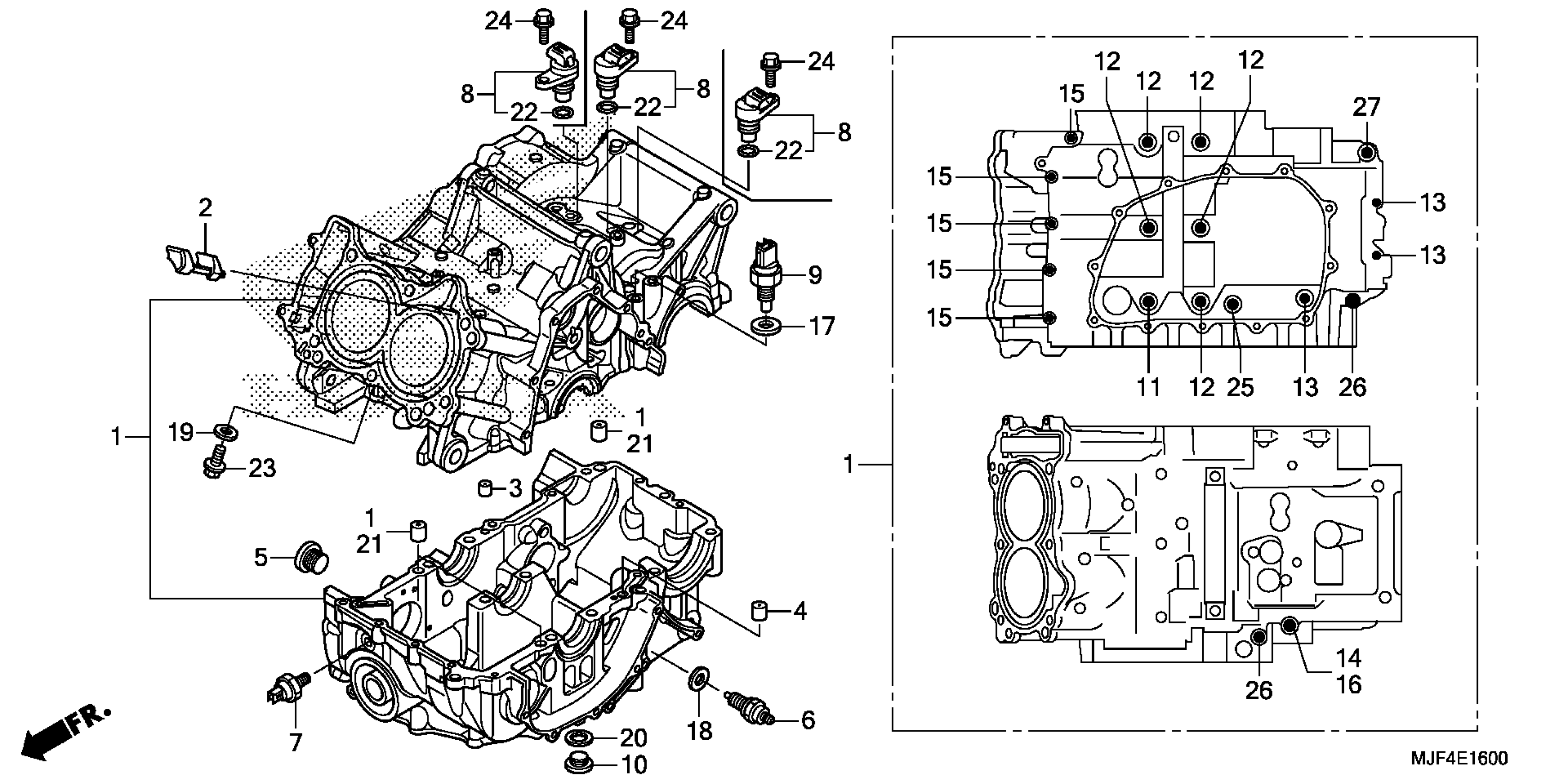

Honda CTX700NDA (15) CTX700ND, JPN, VIN# JH2RC684-FK100001 CRANKCASE Diagram
