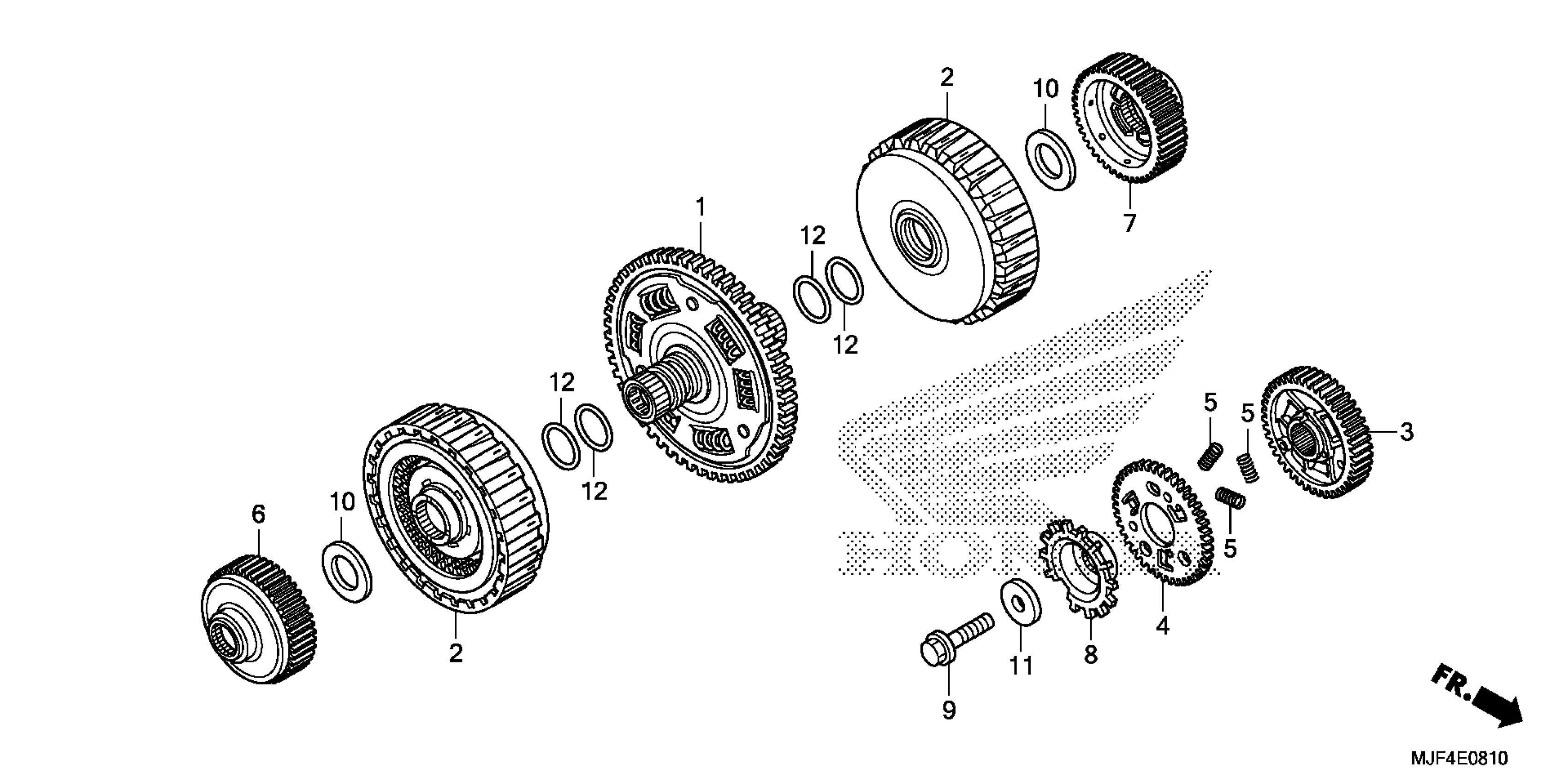

Honda CTX700NDA (15) CTX700ND, JPN, VIN# JH2RC684-FK100001 CLUTCH (2) Diagram

#

Description

Price

1

GEAR, PRIMARY DRIVEN (73T) | Use up to Engine SN 6008118

22100-MGS-D21

$663.52

1

GEAR, PRIMARY DRIVEN (73T) | Use from Engine SN 6008119

22100-MKA-D51

$517.98

2

CLUTCH ASSY. | Use up to Engine SN 6008118 This part replaces 22500-MGS-D21.

22500-MKA-D51

$364.49

2

CLUTCH ASSY. | Use from Engine SN 6008119

22500-MKA-D51

$364.49

3

GEAR, PRIMARY DRIVE (38T)

23103-MGS-D20

$142.61

4

SUB-GEAR, PRIMARY (38T)

23104-MGS-D20

$30.54

5

SPRING, PRIMARY DAMPER

23115-MW4-000

$2.31

6

GUIDE, FIRST CLUTCH GEAR (44T) | Use up to Engine SN 6008118

23405-MGS-D20

$71.57

6

GUIDE, FIRST CLUTCH GEAR (44T) | Use from Engine SN 6008119

23405-MKA-D50

$54.28

7

GUIDE, SECOND CLUTCH GEAR (44T)

23406-MGS-D20

$64.28

8

ROTOR, PULSE

30291-MGS-D20

$20.89

9

BOLT, FLANGE (10MM)

90023-MBW-000

$9.79

10

WASHER (27.5X48X2)

90403-MGS-D20

$5.46

11

WASHER (10.5X36X4)

90414-MGE-D00

$3.51

12

O-RING (33.6X2.2)

91302-PS5-003

$4.57
