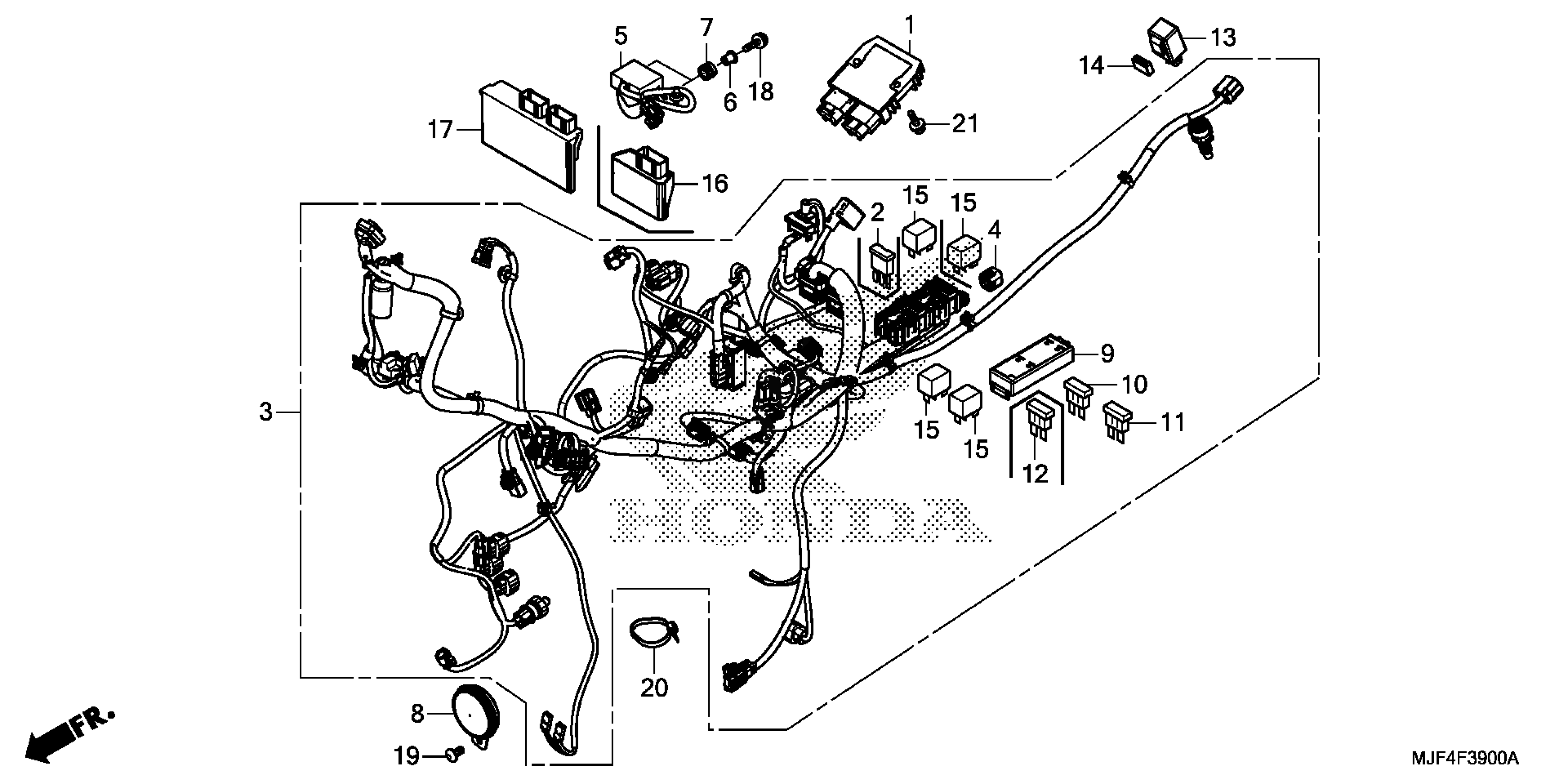

Honda CTX700NDA (14) CTX700ND, JPN, VIN# JH2RC684-EK000001 TO JH2RC684-EK099999 WIRE HARNESS Diagram

RECTIFIER, REGULATOR

31600-MJF-A01

$367.13

WIRE HARNESS This part replaces 32100-MJF-M23.

32100-MJF-M24

$854.87

WIRE HARNESS

32100-MJF-M24

$854.87

CAP, DUMMY (4P) (RED)

32606-GEV-761

$4.12

SENSOR, BANK ANGLE

35161-MJF-A00

$130.03

COLLAR

35162-MGC-003

$4.09

GROMMET

35163-MGC-003

$2.04

HORN (HIGH)

38110-MEE-013

$32.22

COVER, POWER BOX

38201-MGS-D31

$9.29

FUSE, BLADE (7.5A)

38221-SNA-A31

$2.89

FUSE, BLADE (15A)

38221-SNA-A51

$3.39

FUSE, BLADE (30A)

38221-SNA-A81

$2.20

RELAY, TURN SIGNAL (MITSUBA)

38301-MEW-921

$43.80

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.80

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.33

PGM-FI UNIT

38770-MJF-M22

$1,017.35

BOLT, SPECIAL (6X25)

90101-MBZ-C50

$0.90

BOLT, SOCKET (8X16)

90128-MGS-D30

$2.62

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
