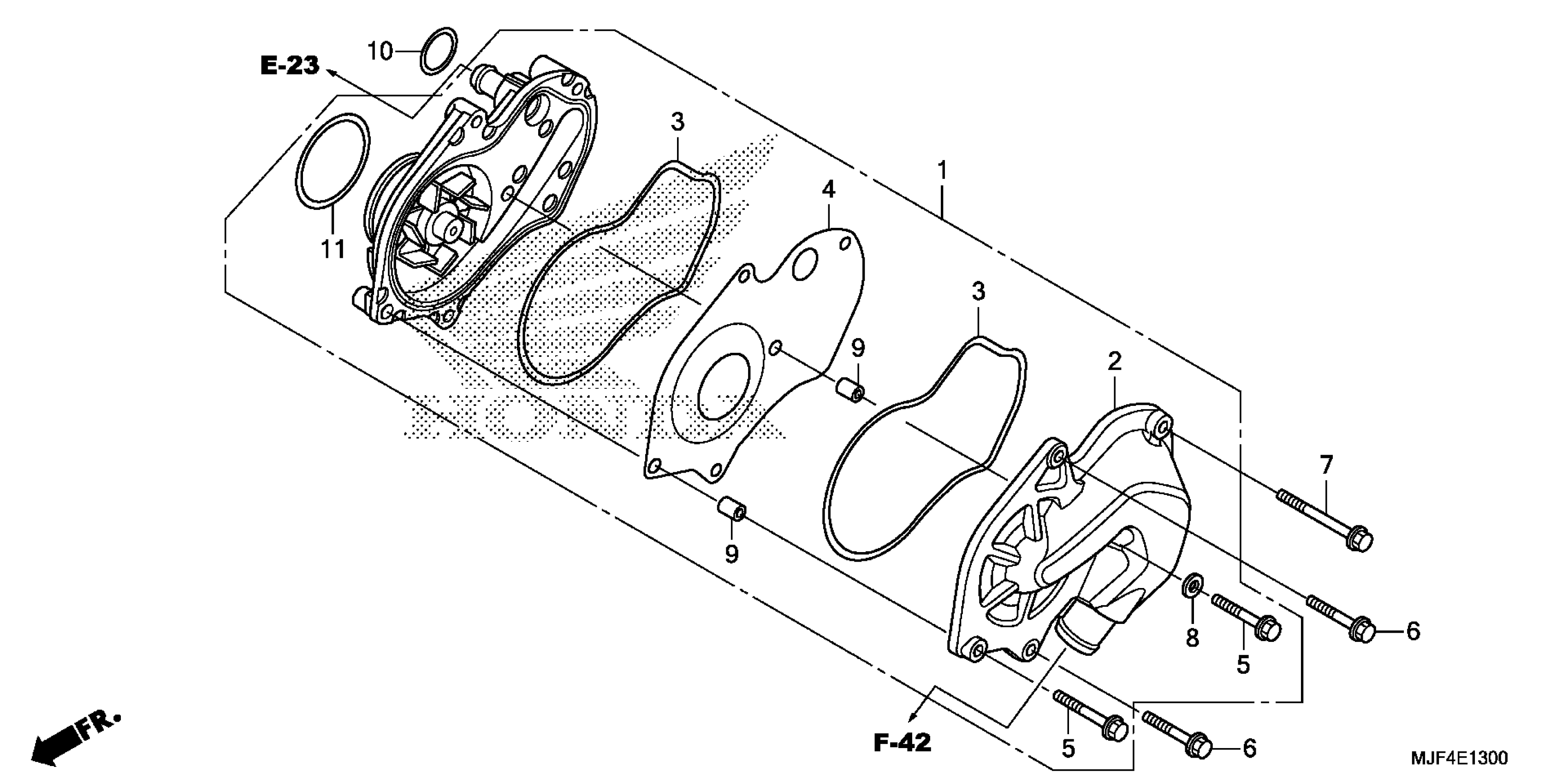

Honda CTX700NDA (14) CTX700ND, JPN, VIN# JH2RC684-EK000001 TO JH2RC684-EK099999 WATER PUMP Diagram

#

Description

Price

1

WATER PUMP ASSY.

19200-MGS-D10

$285.62

2

COVER, WATER PUMP

19221-MGS-D10

$130.59

3

GASKET, WATER PUMP BODY

19226-MGS-D30

$6.63

4

PLATE, WATER PUMP

19231-MGS-D30

$9.18

5

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.92

6

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

7

BOLT, FLANGE (6X50) (NSHF)

90006-GHB-730

$1.80

8

WASHER, SEALING (6.5MM)

90406-MGS-D30

$2.33

8

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

9

PIN, DOWEL (8X10)

90704-MGS-D30

$1.49

10

O-RING (22X2) (ARAI) | Use up to Engine SN 6002751

91301-GK1-003

$2.89

10

O-RING (23.5X2) | Use from Engine SN 6002752

91306-ZY3-003

$3.65

11

O-RING (48X2.6)

91301-MGS-D30

$2.89
