Description

Price

1

MAINSHAFT (16T)

23211-MGS-D30

$230.75

2

PLATE, MAINSHAFT BEARING SETTING

23212-MGS-D30

$3.20

3

COUNTERSHAFT

23220-MGS-D30

$338.57

4

GEAR, COUNTER FIRST (45T)

23421-MGS-D30

$179.95

5

GEAR, MAINSHAFT SECOND (19T)

23431-MGS-D30

$72.39

6

GEAR, COUNTERSHAFT SECOND (36T)

23441-MGS-D30

$142.61

7

COLLAR (28MM)

23442-MM4-000

$23.62

8

GEAR, MAINSHAFT THIRD & FOURTH (22T/25T)

23451-MGS-D30

$171.15

9

GEAR, COUNTERSHAFT THIRD (32T)

23461-MGS-D30

$94.36

10

GEAR, COUNTER FOURTH (30T)

23481-MGS-D30

$85.62

11

COLLAR, SPLINE (28X31X9)

23482-MV9-670

$19.18

12

GEAR, MAINSHAFT FIFTH (30T)

23491-MGS-D30

$94.36

13

COLLAR (25X28X19)

23492-MGS-D30

$9.13

14

GEAR, COUNTERSHAFT FIFTH (31T)

23501-MGS-D30

$168.92

15

GEAR, MAINSHAFT SIXTH (37T)

23511-MGS-D30

$106.43

16

COLLAR, SPLINE (25X28X13)

23512-MV9-670

$27.13

17

GEAR, COUNTERSHAFT SIXTH (31T)

23521-MGS-D30

$147.00

18

SPROCKET, DRIVE (16T)

23801-MGS-D30

$64.00

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

20

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

21

WASHER, THRUST (24X32X1.5)

90402-MEW-920

$2.26

22

WASHER A, THRUST (20MM)

90451-704-000

$3.20

23

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

24

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

25

WASHER, THRUST (25MM)

90456-MA6-000

$2.53

26

WASHER (10.2MM)

90459-438-000

$5.83

27

WASHER, SPLINE (25MM)

90461-MW0-000

$5.56

28

WASHER, LOCK (25MM)

90462-MBW-000

$6.84

29

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

30

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

31

WASHER, THRUST (20X0.9)

90469-ME5-000

$4.80

32

CIRCLIP (25MM)

90601-107-000

$3.74

33

CIRCLIP (28MM)

90603-MN4-000

$4.11

34

BEARING, RADIAL BALL (31X68X15)

91001-MGS-D31

$21.15

35

BEARING, RADIAL BALL (6204U)

91006-MGS-D31

$17.33

36

BEARING, NEEDLE (20MM) (NTN) This part replaces 91022-KT7-003.

91022-MJE-DB1

$45.02

37

BEARING, NEEDLE (24X28X10)

91026-MEL-003

$10.87

38

OIL SEAL (34X62X8)

91207-KT8-003

$12.78

39

RING, SNAP (62MM)

94560-62200

$3.31

40

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

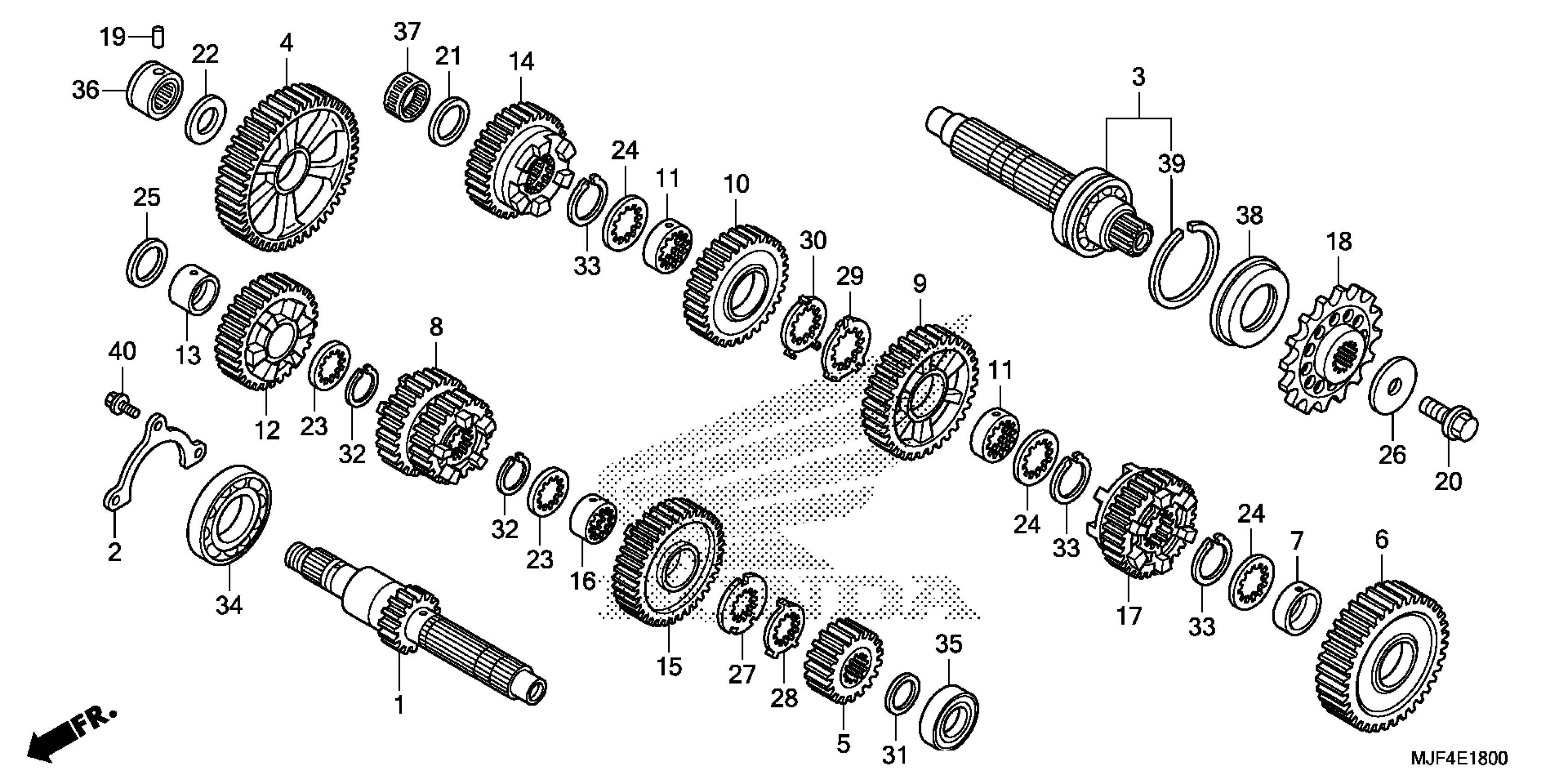

Honda CTX700NA (15) CTX700N, JPN, VIN# JH2RC680-FK100001 TRANSMISSION (CTX700N/NA) Diagram
