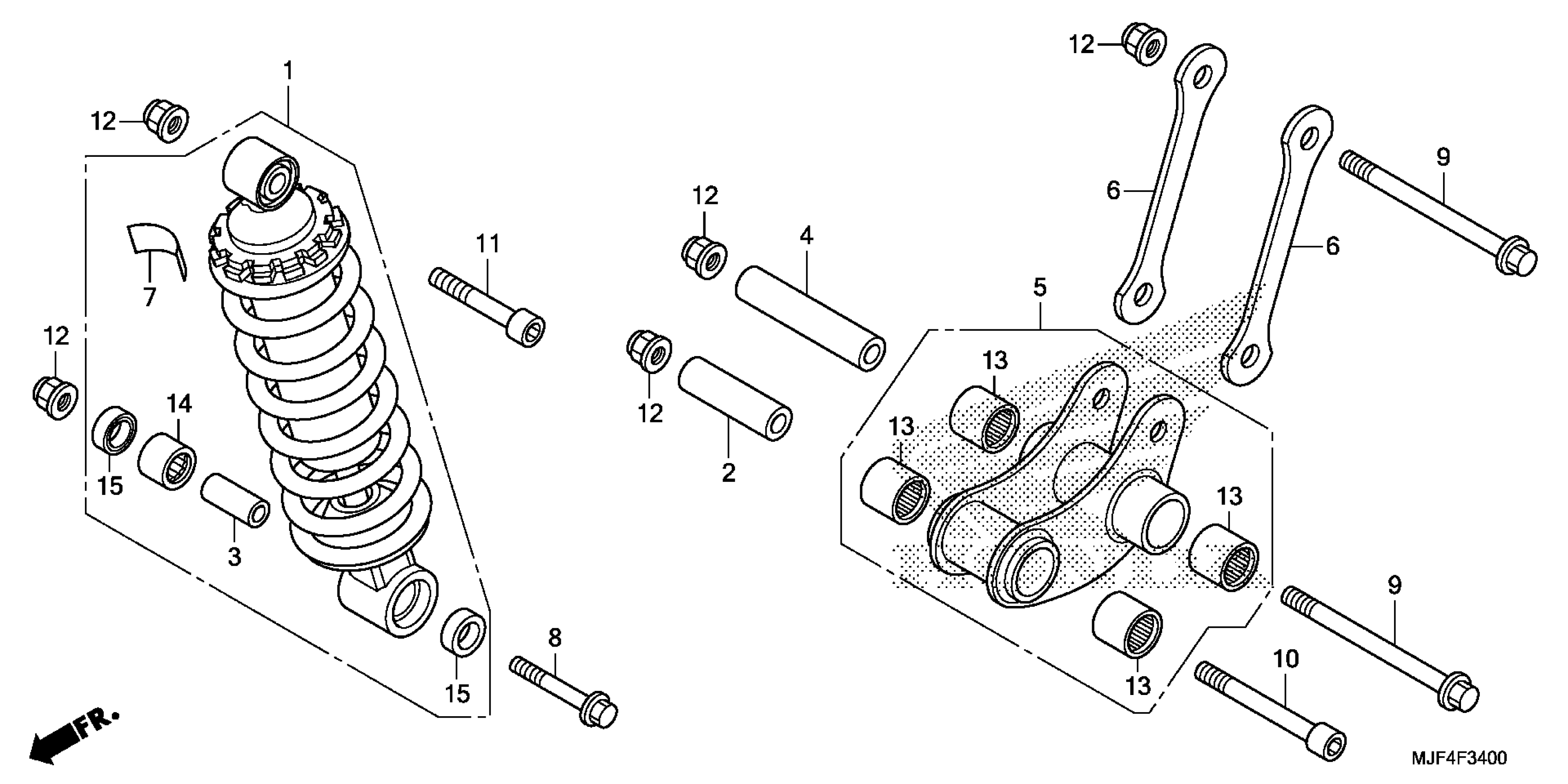

Honda CTX700NA (15) CTX700N, JPN, VIN# JH2RC680-FK100001 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

CUSHION ASSY., RR. This part replaces 52400-MJF-305.

52400-MJF-A01

$660.90

2

COLLAR A, CUSHION ARM

52462-MGS-D10

$10.81

3

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$10.49

4

COLLAR B, CUSHION ARM

52463-MGS-D10

$11.64

5

ARM SUB-ASSY., CUSHION

52465-MGS-D30

$227.41

6

PLATE, CUSHION CONNECTING

52471-MGS-D30

$13.67

7

LABEL, RR. DAMPER

87516-MBL-610

$3.93

8

BOLT, FLANGE (10X62)

90101-MBB-000

$3.75

9

BOLT, FLANGE (10X115)

90102-MGS-D30

$6.14

10

BOLT, SOCKET (10X88)

90110-MGS-D30

$9.97

11

BOLT, SOCKET (10X52)

90111-MGS-D30

$5.20

12

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.42

13

BEARING, NEEDLE (17X24X30)

91052-MGS-D31

$8.78

14

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.18

15

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77
