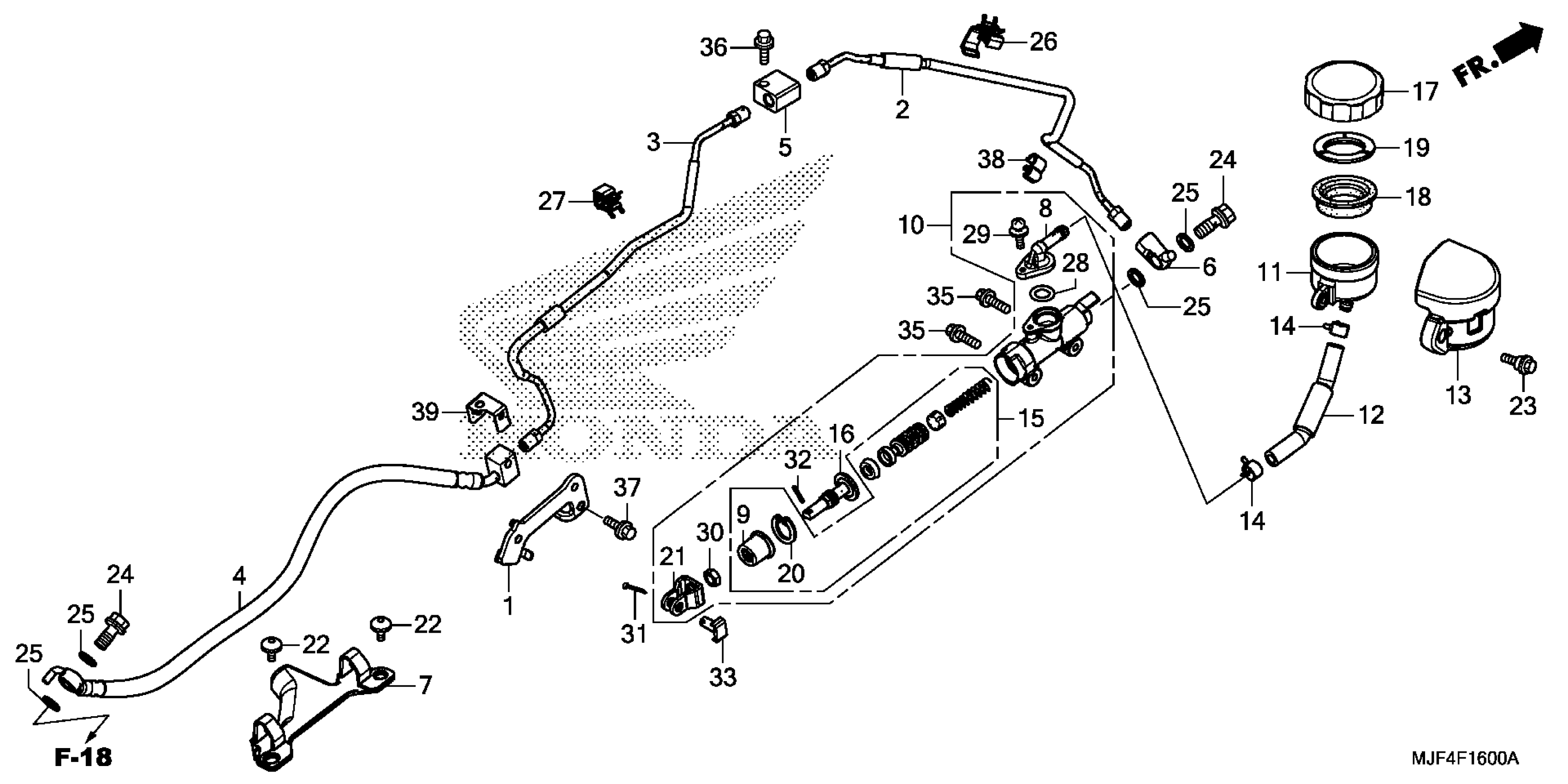

Honda CTX700NA (15) CTX700N, JPN, VIN# JH2RC680-FK100001 REAR BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

STAY, RR. BRAKE HOSE

43160-MJF-A00

$15.32

2

PIPE A, RR. BRAKE

43310-MJF-A00

$17.66

3

PIPE B, RR. BRAKE

43311-MJF-A00

$21.15

4

HOSE D, RR. BRAKE

43313-MJF-A01

$90.60

5

JOINT, BRAKE PIPE (2WAY)

43314-MJF-A01

$20.69

6

JOINT, BRAKE PIPE

43321-MJF-A01

$33.47

7

GUIDE, RR. BRAKE HOSE

43468-MGS-D31

$15.32

8

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.15

9

BOOT

43504-MB2-006

$9.24

10

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN) This part replaces 43510-MJF-305.

43510-MJF-A01

$202.99

11

CUP, OIL

43511-MR7-016

$29.99

12

HOSE, RR. BRAKE MASTER CYLINDER

43512-MJF-A01

$17.85

13

COVER, RR. MASTER CYLINDER CUP

43513-MJF-A00

$17.56

14

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

15

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$41.66

16

ROD, PUSH

43530-MV9-006

$32.63

17

CAP, OIL CUP

45513-MEL-D21

$16.92

18

DIAPHRAGM

45520-300-000

$8.34

19

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

20

CIRCLIP

46182-MEL-D21

$1.79

21

JOINT, BRAKE ROD

46504-MAH-671

$13.21

22

SCREW, SPECIAL (5X14)

90101-MJJ-D30

Unavailable

23

BOLT, FLANGE (6X25)

90113-MJF-A00

$4.09

24

BOLT, OIL (10X22)

90145-MS9-612

$6.99

25

WASHER, OIL BOLT

90545-300-000

$6.56

26

CLAMP, BRAKE PIPE (7.0X2)

90661-MEW-921

$2.62

27

CLAMP, BRAKE PIPE (7.0)

90662-MGS-D81

$2.81

28

O-RING (14.8X2.4)

91212-422-006

$2.37

29

SCREW-WASHER (4X12)

93893-04012-07

$1.24

29

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

30

NUT, HEX. (8MM)

94002-08000-0S

$1.21

31

PIN, SPLIT (2.0X15)

94201-20150

$0.96

32

PIN, SPRING (2X10)

94305-20102

$0.81

33

PIN D, JOINT

95015-54000

$4.05

34

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

35

BOLT, FLANGE (6X18)

95701-06018-00

$1.50

36

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

37

BOLT, FLANGE (6X14)

96001-06014-00

$1.66

38

CLAMP, PIPE

11152-KS4-003

$6.80

39

STAY, SENSOR WIRE

38515-MJF-A00

$3.87
